For police and customs authorities

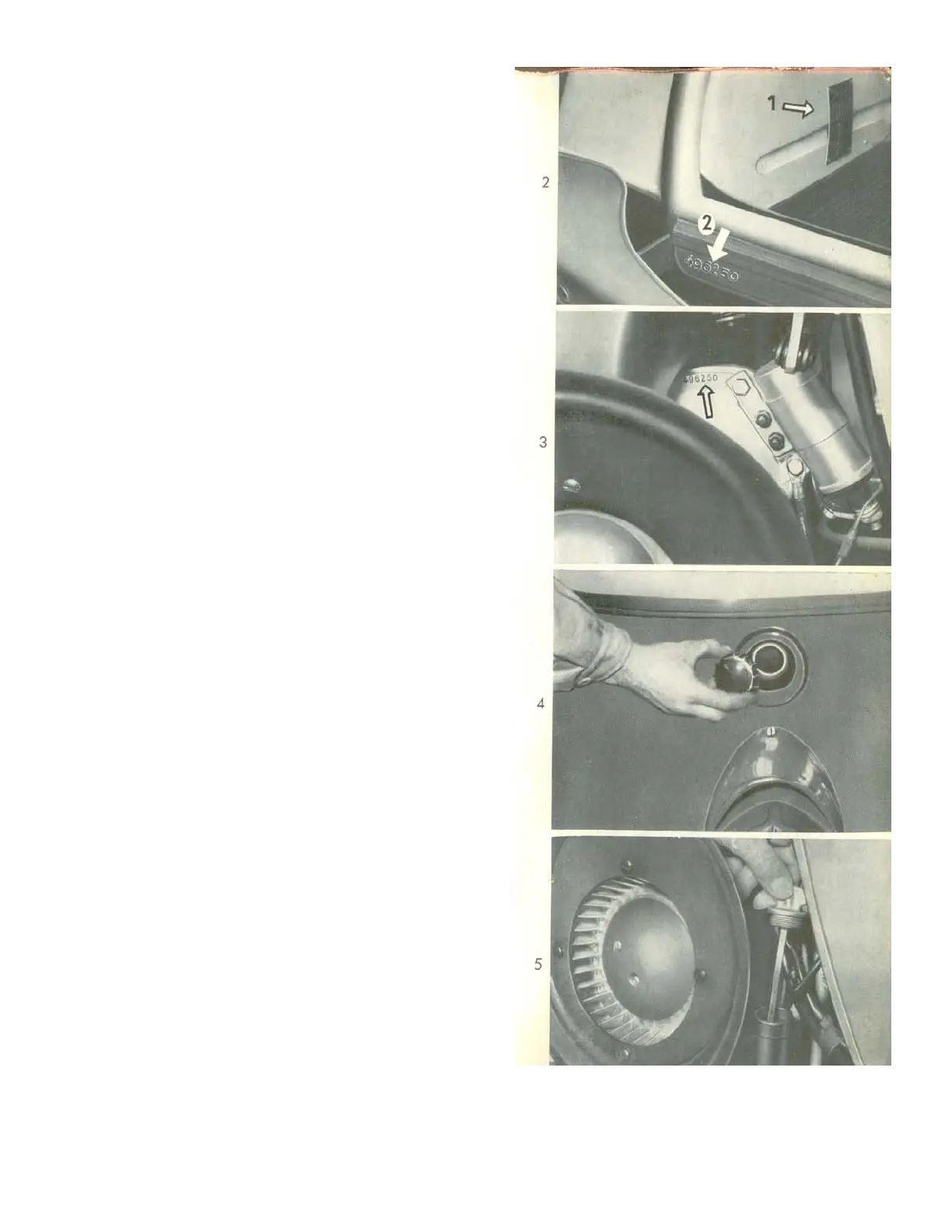

Serial plate:
Inside at the right in front of the seat
(figure 2 No. 1)
Chassis number:
On front cross member of frame, below
the right-hand door corner
figure 2,
No.
2)
Engine number:
On engine housing, beside the ignition
coil (figure 3)
For filling stations and workshops
Fuel tank:
In the rear end of vehicle, access
from outside above the license light
nacelle.
Capacity 2.8 Imp. gal. = 3.4 U.
S. gal. with reserve fuel supply of .65
Imp. gal. (figure 4)
Engine oil filler:
Oil filler and dipstick on right-hand bottom
side of engine. Maintain oil level always
up to the notch on dipstick. Oil capacity
3.1 Imp. pints = 3.6 U. S. pints. Trade-mark
engine oil SAE 40 in summer, SAE 20 in
winter
(figure 5)
.
10
