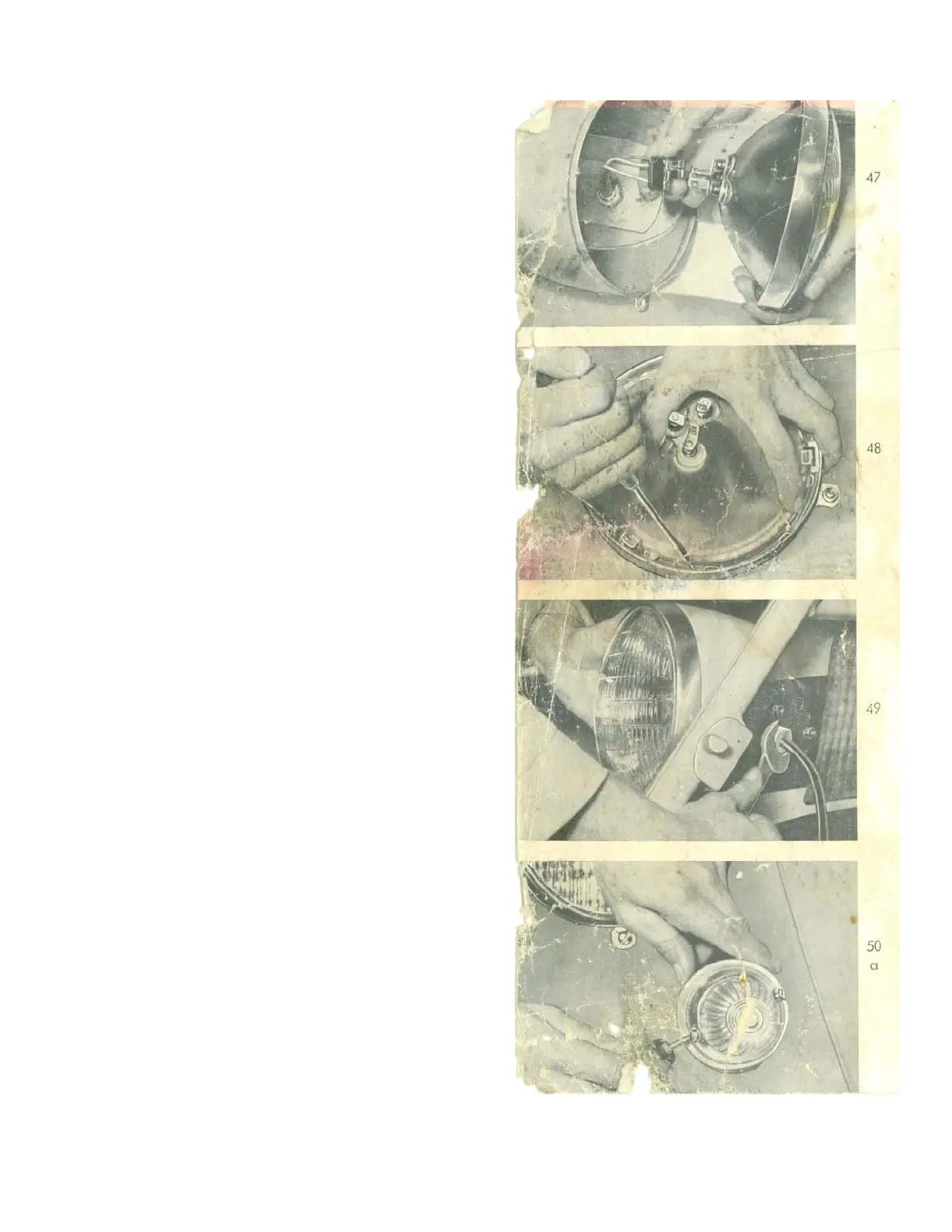

Headlights. Each headlight incorporates a
"Sealed Beam" reflector unit. To replace a unit
remove the securing screw at the bottom of
the headlight rim, pull the lens and reflector
unit off of the headlight housing and
disconnect the triple pole connector (Figure
47). Then, after careful withdrawal of the wire
fasteners, the sealed beam reflector can be
removed from the headlight (Figure 48).
In order to aim the headlights it is necessary
to remove the seat and the body trim panels
at either side of the seat. Loosening the nut
shown in Figure 49 with a 22 mm spanner
allows up-and-down and sideways adjustment
of the headlight by moving same accordingly
upon its spherical support. This job, however,
is best done by service men who possess the
necessary testing equipment to insure
accurate aiming.
Combination parking and directional lights
at front. Each unit contains one Bilux lamp No.
1034 / 12 V-32 / 4 cp. After removal of the rim
and glass unit past taking out the two securing
screws (Figure 50 a) with a screw driver, the
lamp can be removed from the bayonet
socket by pushing lamp inwards and turning
to the left (Figure 50 b).
