New Generation N62 Engine Chapter 3 P.32
Course Contents/Background Material
© BMW AG, Service Training
- Valve gear

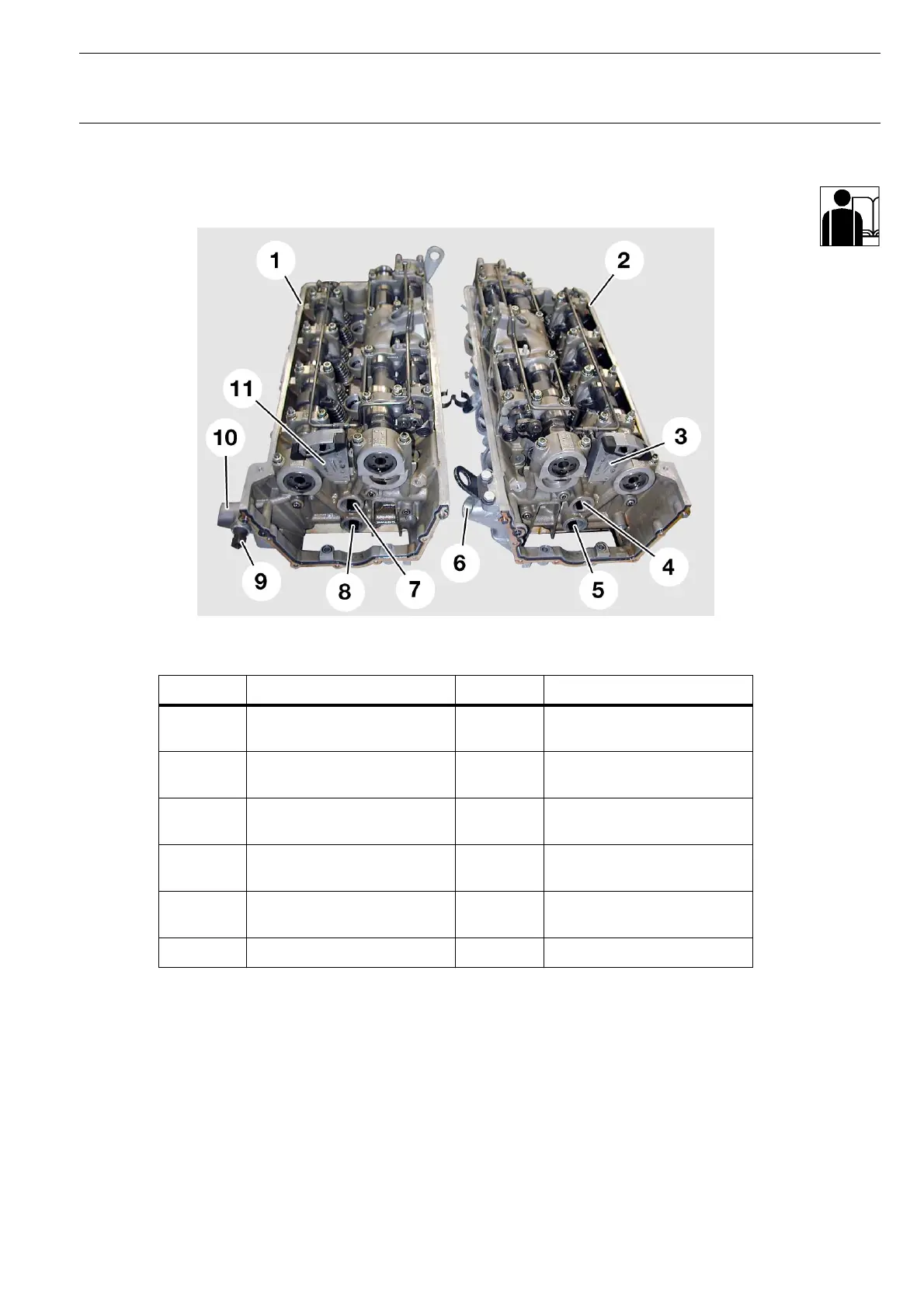

Fig. 26: Cylinder heads
Index Description Index Description
1 Cylinder head for cylinder
bank 1-4
7 Hole for VANOS intake
solenoid valve
2 Cylinder head for cylinder
bank 5-8
8 Hole for VANOS outlet
solenoid valve
3 Upper timing chain guide
with oil jet
9 Oil pressure switch
4 Hole for VANOS intake
solenoid valve
10 Chain tensioner mount
5 Hole for VANOS outlet
solenoid valve
11 Upper timing chain guide
with oil jet
6 Chain tensioner mount
KT-7709
