New Generation N62 Engine Chapter 3 P.68
Course Contents/Background Material
© BMW AG, Service Training
- Cooling module

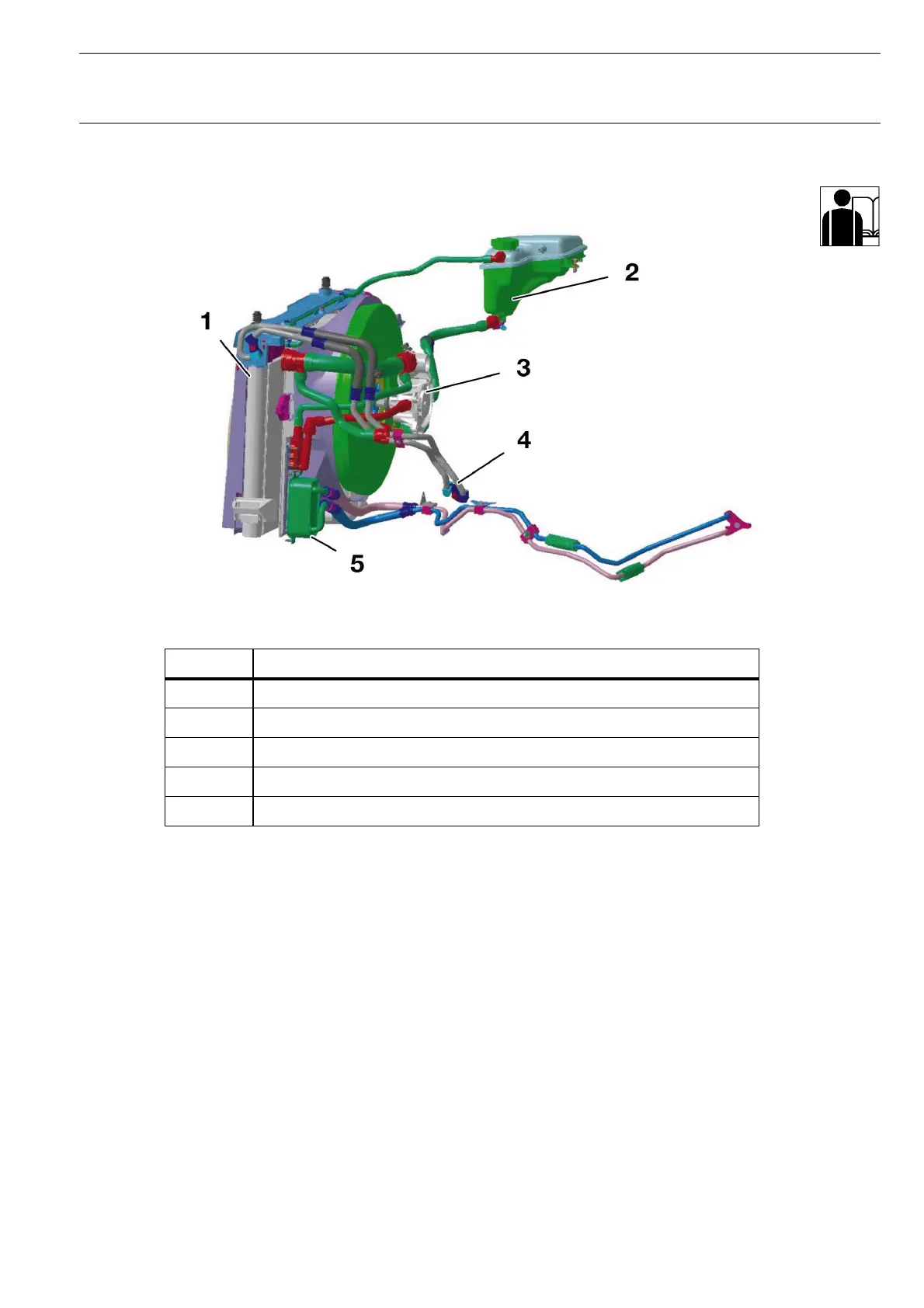

Fig. 52: Cooling module
The cooling module contains the following main cooling system
components.
- Cooling radiator
- Air conditioning condenser
- Transmission oil/water heat exchanger (ÖWT) with control unit
- Hydraulic fluid radiator
- Engine oil radiator
- Main electric fan
- Fan shroud for viscous coupling fan
Index Description
1 Cooling radiator
2 Expansion tank
3 Water pump
4 Engine oil/air heat exchanger connection (in hot countries only)
5 Transmission oil/water heat exchanger (ÖWT)
KT-7887
