N62 Engine
Chain Drive
The camshafts are driven by a toothed chain, one for each cylinder bank. The oil pump is
driven by a separate roller chain.

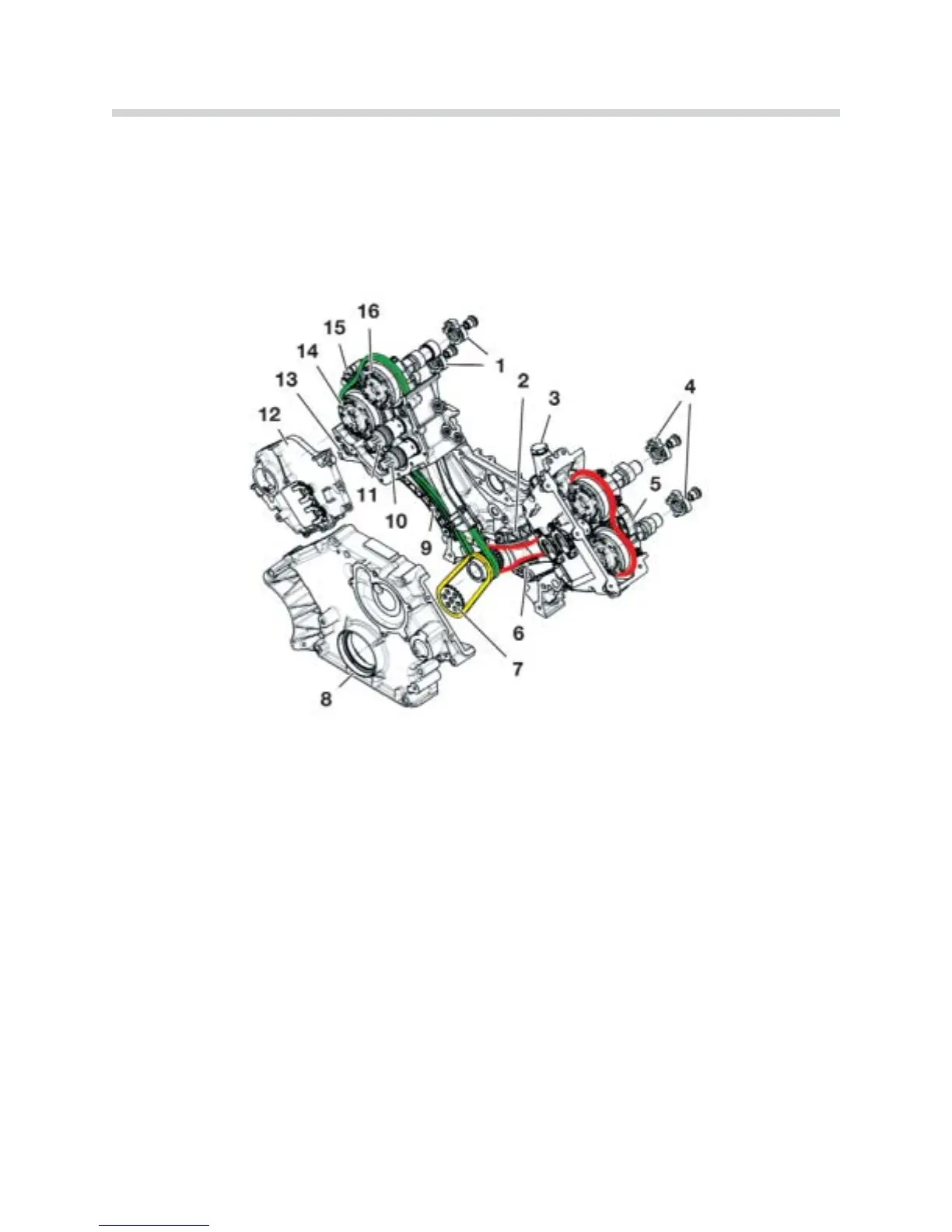

1. Sensor wheels for the camshaft position sensor, cylinder bank 1-4
2. Tensioner Rail, Cylinder 5-8
3. Chain Tensioner, Cylinder Bank 5-8
4. Sensor Wheel for the camshaft position sensor, cylinder bank 5-8
5. Upper timing chain guide with integrated oil jet
6. Guide rail
7. Sprocket for Oil Pump Drive
8. Timing case lower section
9. Tensioning rail, cylinder bank 1-4
10. Solenoid Valve, VANOS exhaust camshaft
11. Solenoid Valve, VANOS intake camshaft
12. Upper Timing Chain Cover
13. Chain Tensioner, Cylinder Bank 1-4
14. VANOS exhaust camshaft Bank 1-4
15. Upper Timing Chain guide with integrated oil jet
16. VANOS intake camshaft 1-4
Chain Drive
43-02-50
