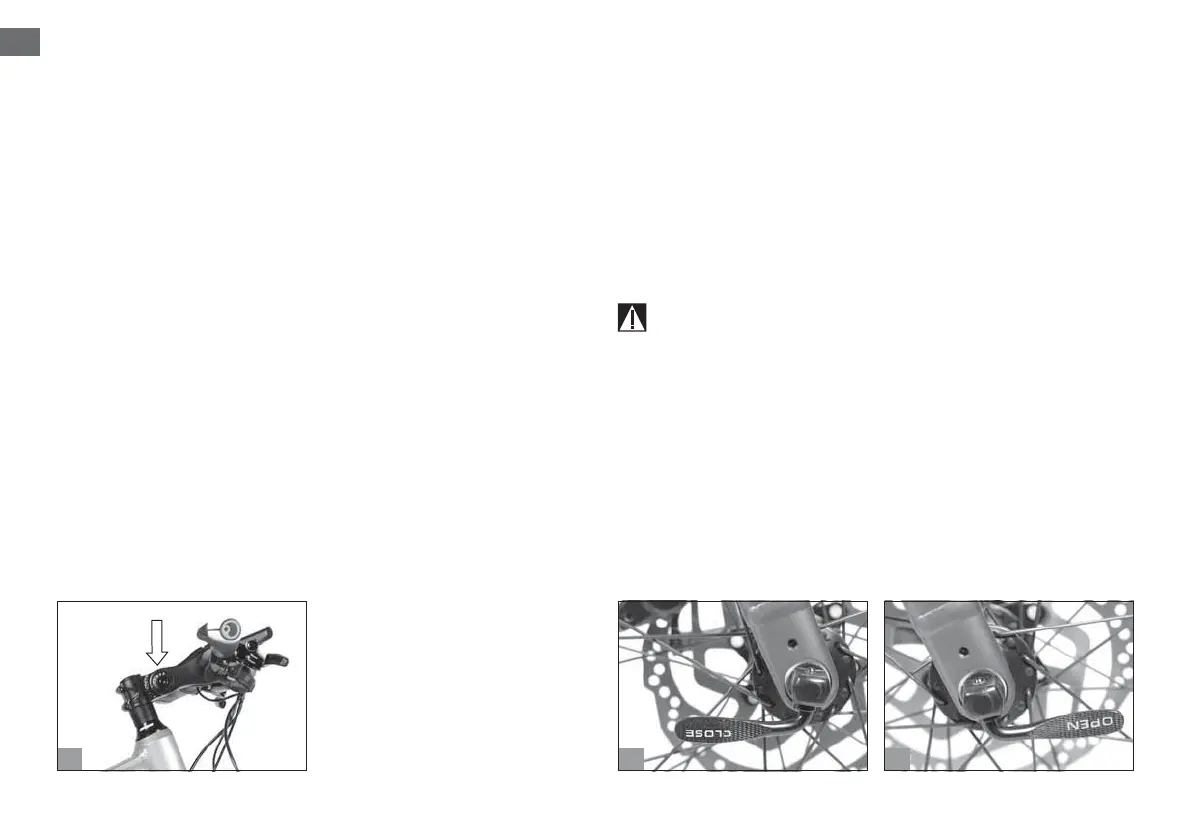

9.2.2 Normal re-adjustment of the handlebar.
The adjustable stem allows optimization of the riding position
by adjusting the incline of the axle within a range of -40º (lowest
position) up to 40º (highest position).
7KHVWHPDQJOHFDQEHHDVLO\PRGL³HGE\IROORZLQJWKHVHVWHSV
Ŷ Loosen the side screw (right side) (d) until the axle moves freely.
Ŷ Adjust the incline of the axle until reaching the desired height.
Ŷ Tighten the side screw and take note of the tightening torque.
9.3 Assembling and disassembling the wheels.
Front wheel.
Disassembly: Pull the locking lever and change it from the
«CLOSE» (a) to the «OPEN» position (b). Loosen the adjustment
screw by hand and remove the wheel.
Assembly: Insert the wheel axle in the fork dropouts (front wheel)
or the frame dropouts (rear wheel) and keep the locking lever in the
open position. Set the adjustment screw lightly. Close the lever,
meaning, change it to the «CLOSE» position.
Warning: The locking lever requires effort. In other cases, it is
QHFHVVDU\WR³UPO\IDVWHQWKHQXW,IWKHOHYHU³WLQHDVLO\LWLV
not well fastened and the clamping nut must be readjusted
accordingly.
