Bosch Aquastar GWH 1600 H N User Manual

6 720 608 032
Appliance details
5

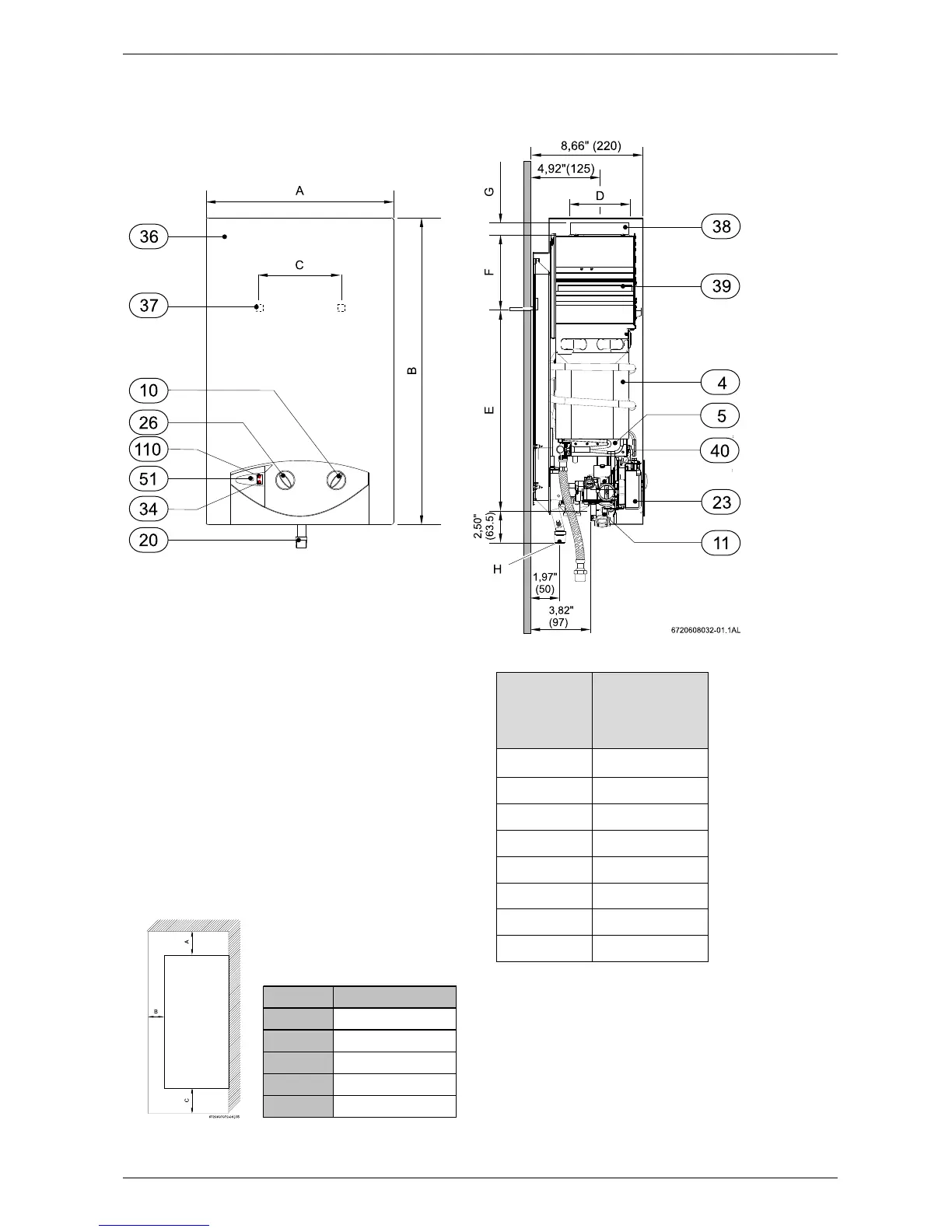

2.4 Dimensions and installation clearances
Fig. 3 Dimensions in Inches and (mm)
4 Heat exchanger
5 Burner
10 Temperature control
11 Water valve
20 Gas connection
23 Igniter unit
26 Output control
34 LED indicator for burner status
36 Front cover
37 Hole for fixing to wall
38 Exhaust pipe to wall
39 Draught diverter with flue gas monitor
40 Gas valve
49 Observation window
51 On/Off switch
110 LED failure indicator
Fig. 4 Minimum clearances
Model GWH 1600 H
TOP (A)
12 inches (306 mm)
FRONT (B)
4 inches (100 mm)
BACK
0 inches
SIDES
4 inches (100 mm)
BOTTOM (C)
12 inches (306 mm)
Dimensions
inches (mm)
GWH 1600 H
A 16.73” (425)
B 25.75” (655)
C 13.15” (334)
D 5.11” (130)
E 21.25” (540)
F 2.55” (65)
G 1.18” (30)
H 3/4”
Table 1 Dimensions in inches (mm)
