3.4 Mounting Heater
Remove cover and inspect.
B Remove the temperature control.
B Remove the outer case by pulling it forwards and
then lifting upwards.
B Ensure that the flue terminal is clear.
B After inspection, replace front cover.
Install incandescent particle tray.
B Install incandenscent particle tray using screws
provided as shown in Fig. 5.

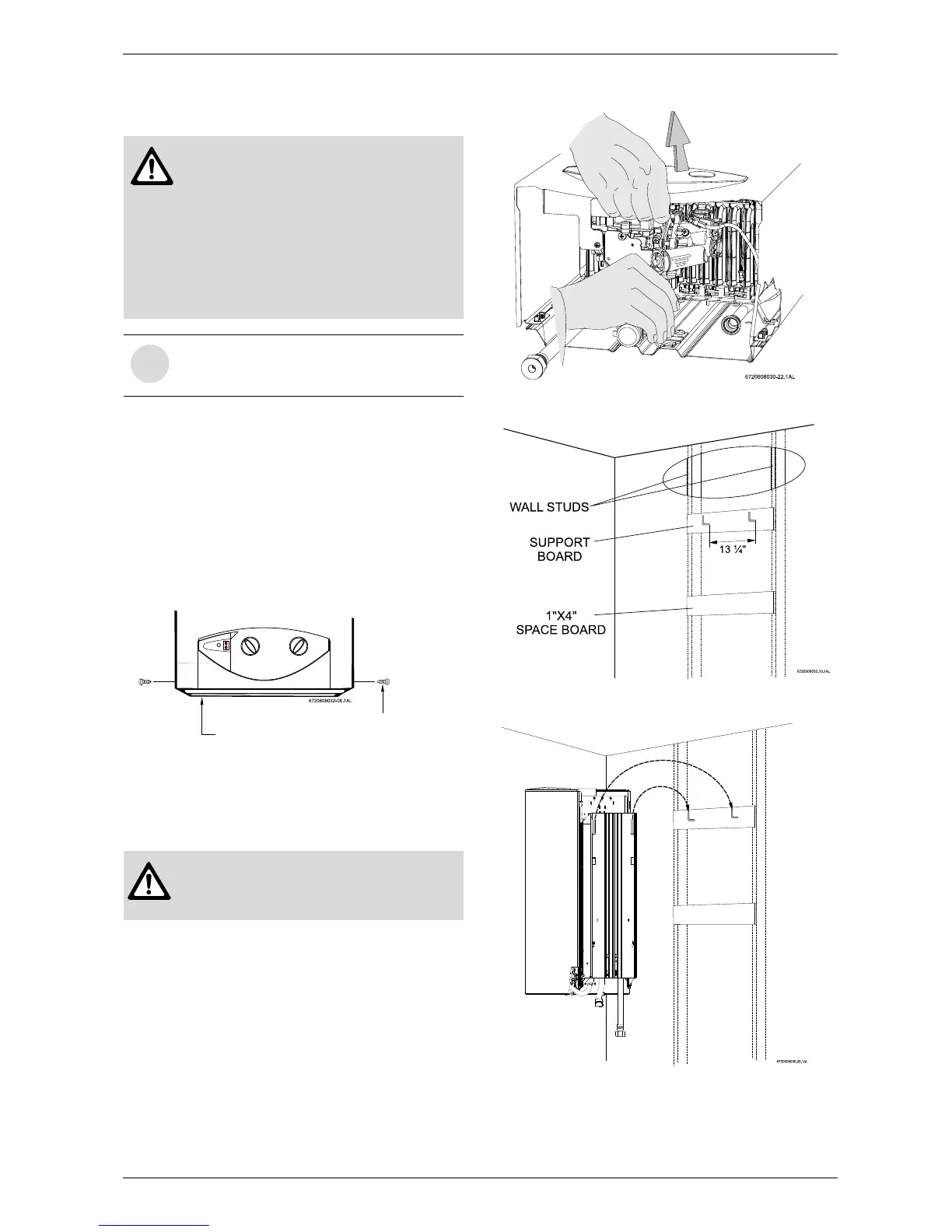

Fig. 5 Incandescent particle tray illustration
Mounting heater.
The GWH 1600 H is design certified for mounting on a
wall.
The heater must be mounted on a wall using
appropriate anchoring materials. If wall is a stud wall
sheathed with plasterboard, it is recommended that
support board(s), either 1x4’s or 1/2" (minimum)
plywood first be attached across a pair of studs and
then the heater should be attached to the support
boards. See Fig. 7.
B Secure the two included L shaped hooks to wall
studs or support board 13 ¼” apart (See Fig. 7).
B Hang heater on two L shaped hooks (See Fig. 8).
Fig. 6 Remove front cover
Fig. 7 Support board
Fig. 8 Secure heater to wall
Warning: before starting installation:
B check that there are no loose parts
inside the appliance.
B ensure that gas pipe, gas valve, and
burner have no damage and are
properly fitted.
B Read chapter 2.2 to verify proper gas
type and to check all parts are included
in box.
i
Front cover should be removed in order to
inspect components visually (see
instructions below).
Warning:
B Do not install this appliance on a
carpeted wall.
Incandescent particle tray
Screws
