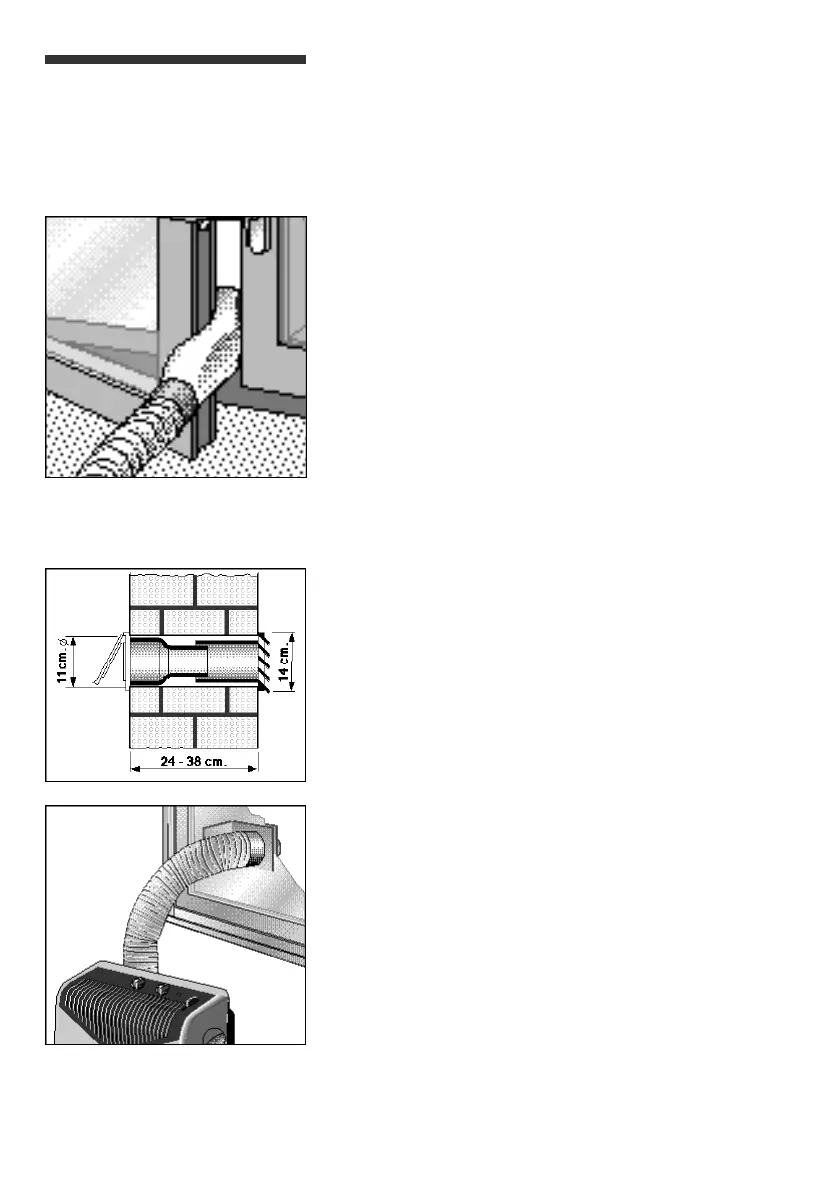

Ways of releasing
air outdoors
❏ Connect the diffusion duct to the hot-air
expulsion duct.
❏ Open the window slightly and feed the diffusion
duct through the gap.
❏ Close the window as much as possible and
secure it in place using the suction pad provided.
Temporary installation
23
Permanent installation The appliance can be installed on a permanent
basis using window/wall Optional Accessory,
reference B1 RKZ 06009, available from your
supplier.
❏ A hole must be made in the wall and the wall
accessory fitted in order to expel hot air.
❏ Store the diffusion duct away and connect the air
expulsion duct to the accessory.
❏ Only the transparent end section of the
accessory is used when air is to be expelled
through a window on a permanent basis. A 10.5-
cm. diameter hole must be made in the glass in
order to fit the accessory.
N.B.
• Do not extend the hot-air expulsion duct more
than necessary (maximum length: 140 cm.).
• There must be a distance of at least 70 cm.
between the floor and the end of the duct.
• Do not bend the duct too sharply when
positioning it.
This can impede proper hot-air expulsion, which
may reduce cooling efficiency.
