18
Switching the Sound On and Off
The sound is switched on by default.
Press and hold the function button until you see
the Changing the Unit of Measure display.

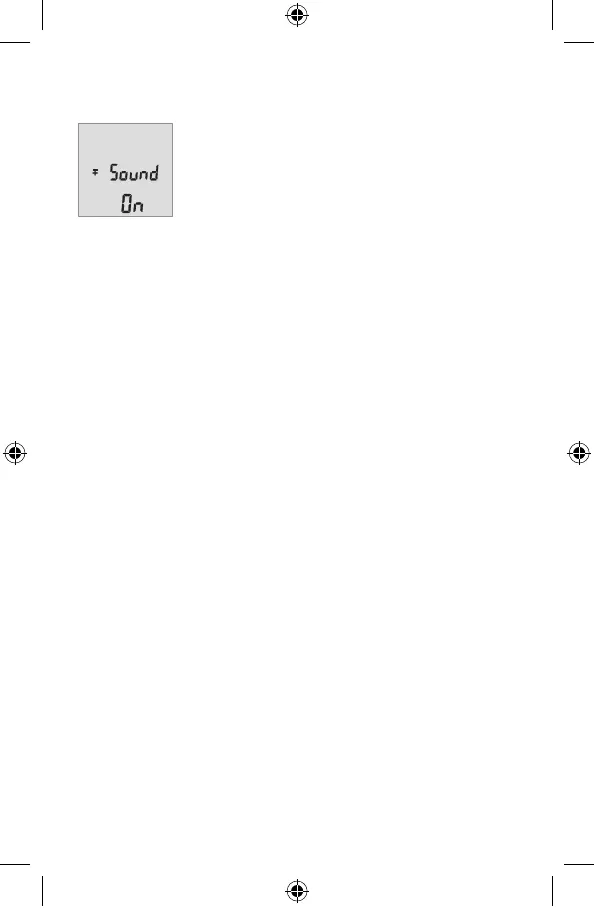

Press function button 4 again to see the image
displayed to the left. Use button 3 and 6 to
adjust the sound preference. Sound OFF will
display when the sounds has been turned off.
To switch the sound back on, use button 3 and 6 to adjust the
sound preference. Sound On will display when the sound has
been turned on.
Display Illumination
The display illumination is continuously switched on. When
no button is pressed, the display illumination is dimmed after
approx. 10 seconds to preserve the batteries. When no button
is pressed for approx. 30 seconds, the display illumination
goes out.
Working Advice
General Information
The reception lens 11 and the laser beam outlet 12 must not
be covered when taking a measurement.
Measurement takes place at the center of the laser beam,
even when target surfaces are at a slope.
Influence Effects on the Measuring Range
The measuring range depends on the light conditions and the
reflection properties of the target surface.
Influence Effects on the Measuring Result
Due to physical effects, faulty measurements cannot be
excluded when measuring on different surfaces. Included
here are:
– Transparent surfaces (e.g., glass, water),
– Reflecting surfaces (e.g., polished metal, glass),
– Porous surfaces (e.g. insulation materials),
– Structured surfaces (e.g., roughcast, natural stone).
Also, air layers with varying temperatures or indirectly received
reflections can affect the measured value.
2610047629.indd 18 6/6/17 9:40 AM
