Bosch Climate 5000 AA Series Split Type Ductless Air Conditioner / Heat Pump Installation Manual
01.2017 | Bosch Thermotechnology Corp.Data subject to change
2 Components
The air conditioning / heat pump system comes with the following components. Use
all of the installation parts and components to install the air conditioner. Improper
installation may result in water leakage, electrical shock and fi re, or cause the
equipment to fail.

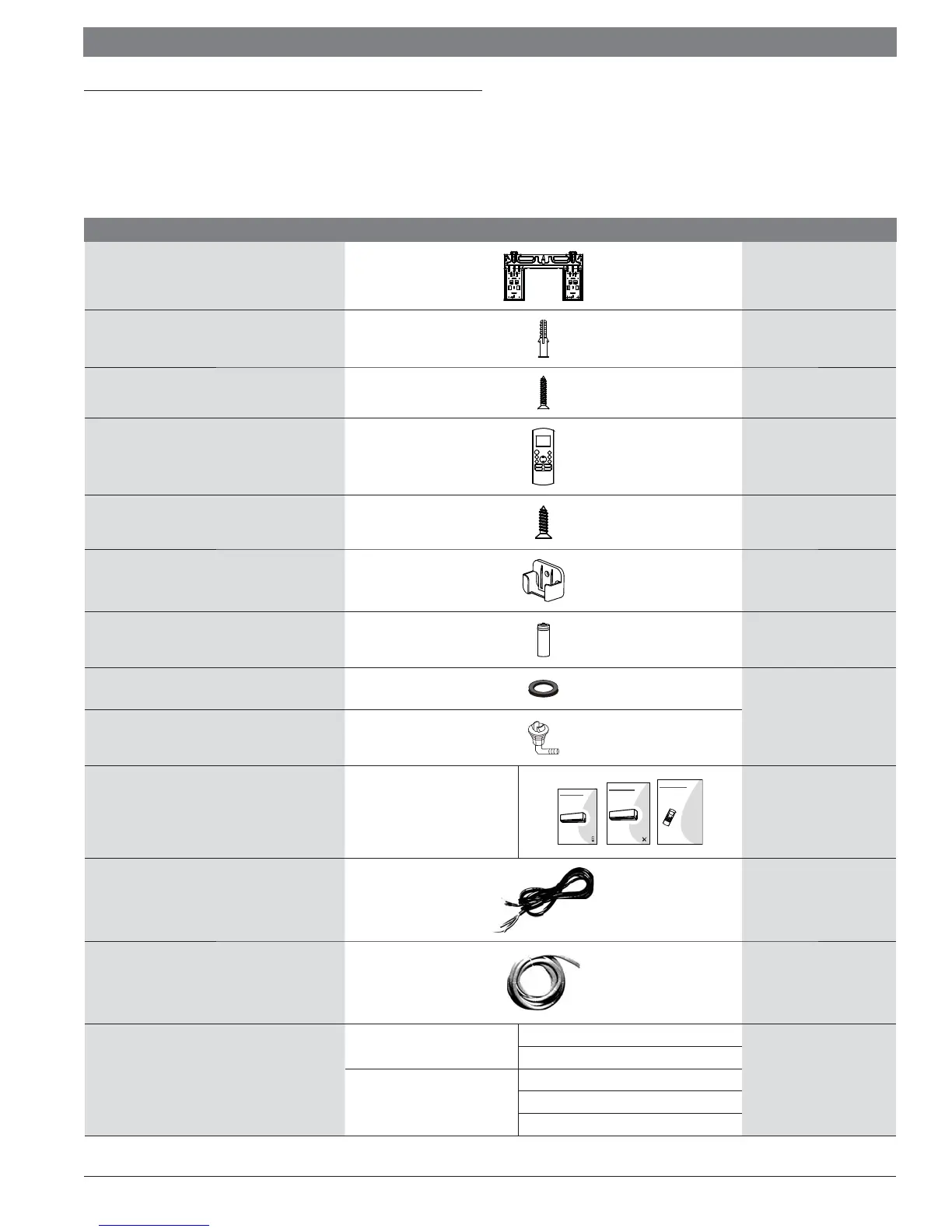

Name Image Quanity
Mounting plate 1
Clip anchor 5
Mounting plate fi xing screw ST3.9 X 25
5
Remote controller 1
Fixing screw for remote controller holder ST2.9 x 10 2
Remote controller holder 1
Dry battery AAA.LR03 2
Seal
1
Drain joint
Documentation
Owner's manual
Installation manual
Remote controller user manual
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Owner’s Manual
Aurora Series
All Model Numbers
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Installation Manual
Aurora Series
All Model Numbers
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Remote controller
illustration
Aurora Series
All Model Numbers
1 each
Signal/power cable 1
Drain hose
1
Connecting pipe assembly
Liquid side
Φ6.35( 1/4 i n)
Parts not included.
Piping kits are available
as an accessory.
Φ9.52( 3/8in)
Gas side
Φ9.52( 3/8in)
Φ12.7( 1/2in)
Φ 16( 5/8in)
Table 1
