Step 1: Select installation location
Before installing the outdoor unit, you must choose an appropriate location. The
following are standards that will help you choose an appropriate location for the
unit.
Proper installation locations meet the following standards:
— Meets all spatial minimum requirements shown in Installation Space
Requirements (Figure 42)

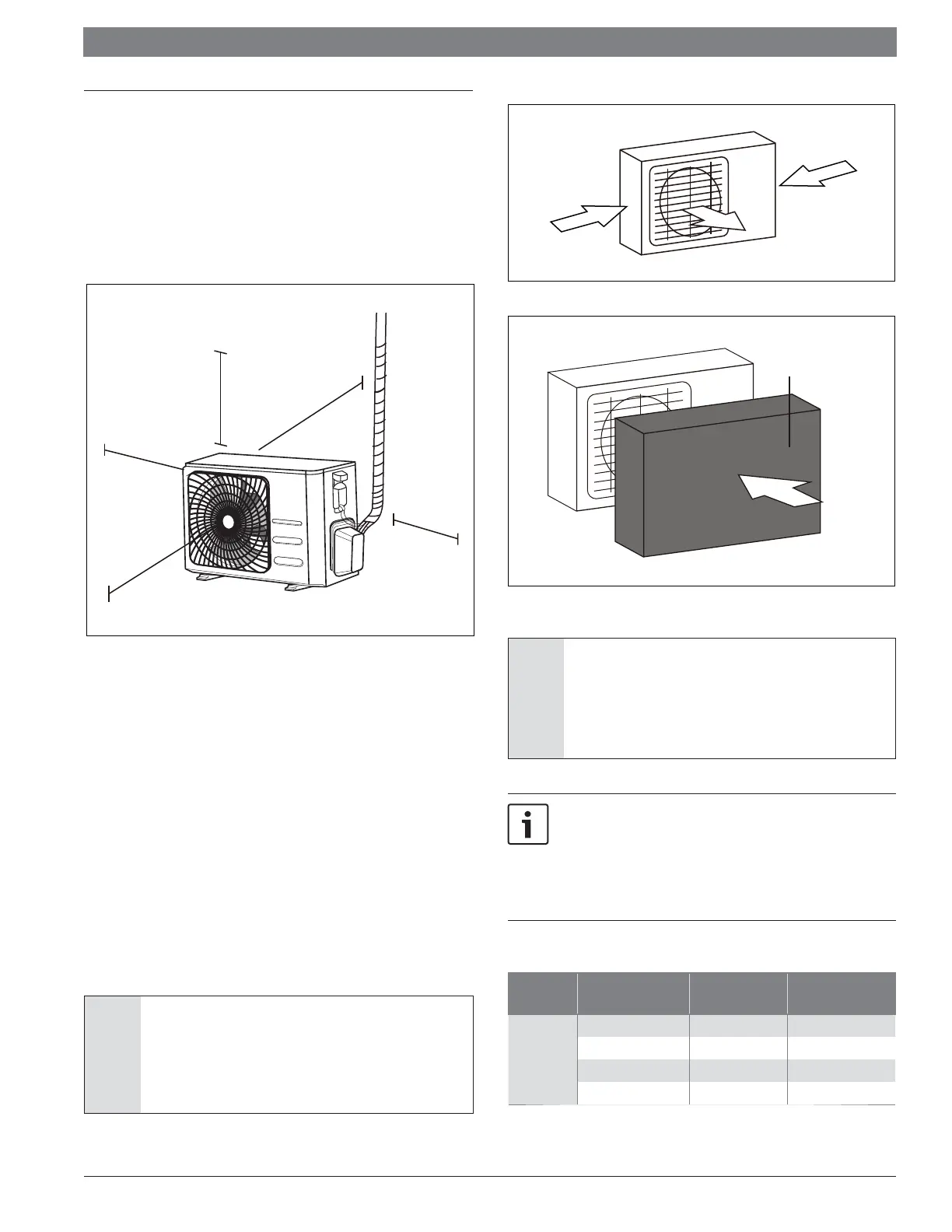

Figure 42
evoba )ni42
(
mc
0
6
60cm (24in)
on right
30cm (12in)
on left
200cm (79in)
in front
30cm (12in)
fr
om b
a
ck wall
— Good air circulation and ventilation
— Firm and solid ‒ the location can support the unit and will not vibrate
— Noise from the unit will not disturb others
— Protected from prolonged periods of direct sunlight or rain
DO NOT install unit in the following locations:
— Near an obstacle that will block air inlets and outlets
— Near a public street, crowded areas, or where noise from the unit
will disturb others
— Near animals or plants that will be harmed by hot air discharge
— Near any source of combustible gas
— In a location that is exposed to large amounts of dust
— In a location exposed to excessive amounts of salty air
NOTICE
If the unit is exposed to heavy wind: Install unit so that air
outlet fan is at a 90° angle to the direction of the wind. If
needed, build a barrier in front of the unit to protect it from
extremely heavy winds. See Figures 43 and 44.
Figure 43
Strong wind
Strong wind
Figure 44
Strong
wind
Wind Baffle
NOTICE
If the unit is frequently exposed to heavy rain or snow:
— Build a shelter above the unit to protect it from the
rain or snow. Be careful not to obstruct air flow around
the unit.
The length of refrigerant piping will aff ect the performance and energy
effi ciency of the unit. Nominal effi ciency is tested on units with a pipe
length of 5 meters (16.5ft). A minimum pipe run of 3 meters (9.8ft) is
required to minimize vibration & excessive noise.
Refer to the table below for specifi cations on the maximum length and
drop height of piping.
Maximum length and drop height of refrigerant piping per unit model
Model Capacity (BTU/h)
Max. Equivalent
Length m (ft)
Max. Height
Variation m (ft)
R410A
Inverter
Split Air
Conditioner
< 15,000 25 (82ft) 10 (33ft)
15,000 to < 24,000 30 (98.5ft) 20 (66ft)
24,000 to < 36,000 50 (164ft) 25 (82ft)
36,000 to 60,000 65 (213ft) 30 (98.5ft)
Table 6
