27
Measuring Functions
Note: Integrated Help Function
Help in the form of an animation is stored in the measuring tool
for each measuring function. To do so, select button 13 [Func],
buttons 4 [+] or 11 [–] and then soft key 3
[ ]
.
The animation shows you the detailed procedure for the selected
measuring function. The animation can be stopped and started
again at any time. You can scroll forward and back with buttons
4 [+] or 11 [–].

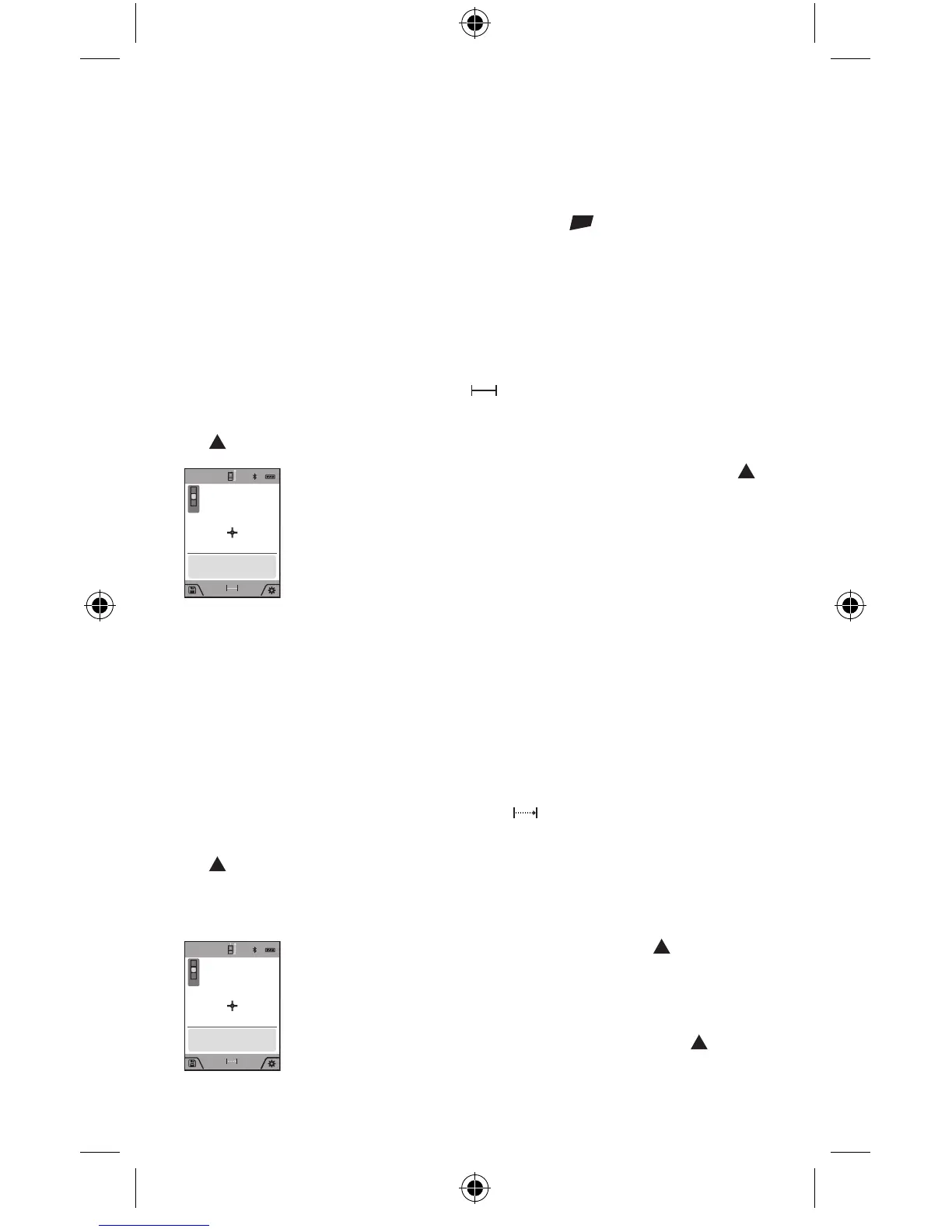

Length Measurement
Select the length measurement
.
To switch on the laser beam, briefly press the measuring button
2
[ ]
.
09.06.2017
13:20:23
0.0º
76´01˝⁄
45´08˝
60´10˝⅝
30´05˝
To measure, briefly press the measuring button 2
[ ]
.
The measured value will be shown at the bottom of
the display.
Repeat the above-mentioned steps for each
subsequent measurement. The last measured value
is at the bottom of the display, the penultimate
measured value is above it, and so on.
Continuous Measurement (Tracking)
For continuous measurements, the measuring tool can be moved
relative to the target, whereby the measuring value is updated
approx. every 0.5 seconds. In this manner, as an example, you
can move a certain distance away from a wall, while the actual
distance can always be read.
Select the continuous measurement
.
To switch on the laser beam, briefly press the measuring button
2
[ ]
.
Move the measuring tool until the required distance value is
indicated in the bottom of the display.
09.06.2017
13:20:23
0.0º
max
min
30´05˝
76´01˝⁄
76´01˝⁄
Briefly pressing the measuring button 2
[ ]
interrupts
the continuous measurement. The current measured
value will be shown at the bottom of the display. The
maximum and minimum measured value appear
above it. Pressing the measuring button 2
[ ]
once
more restarts the continuous measurement.
Continuous measurement automatically switches off after 5 mins.
