Installation Instructions
Bosch IDS BOVA15 Split System Heat Pump - BTC 761701317 A (02.2022)

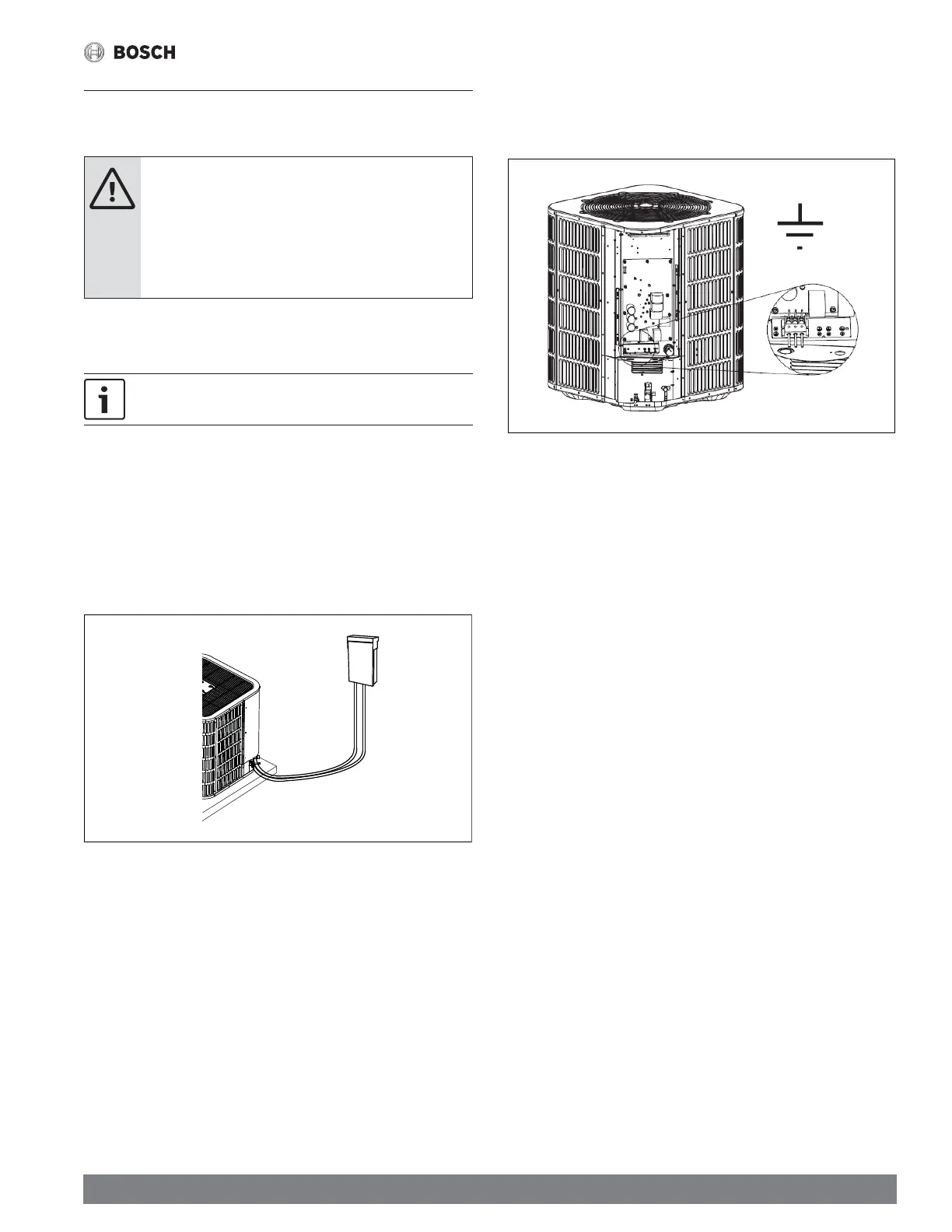

12 Electrical - High Voltage
12.1 High Voltage Power Supply
WARNING: LIVE ELECTRICAL COMPONENTS!
 During installation, testing, servicing, and trouble shooting
of this product, it may be necessary to work with live
electrical components. Failure to follow all electrical safety
precautions when exposed to live electrical components
could result in death or serious injury.
The high voltage power supply must match the equipment nameplate
(208/230V, 1PH, 60Hz).
Power wiring must comply with national, state, and local codes.
Follow instructions on unit wiring diagram located on the inside of the control box
access panel and refer to wiring diagram in this IOM.
12.2 High Voltage Disconnect Switch
Install a separate disconnect switch at the outdoor unit.
Field supplied fl exible electrical conduit must be used for high voltage wiring.
Figure 27
12.3 High Voltage Ground
Ground the outdoor unit per national, state, and local code requirements.
Figure 28
