Inspection and maintenance | 67
6 720 810 590 (2015/05)
Greenstar FS

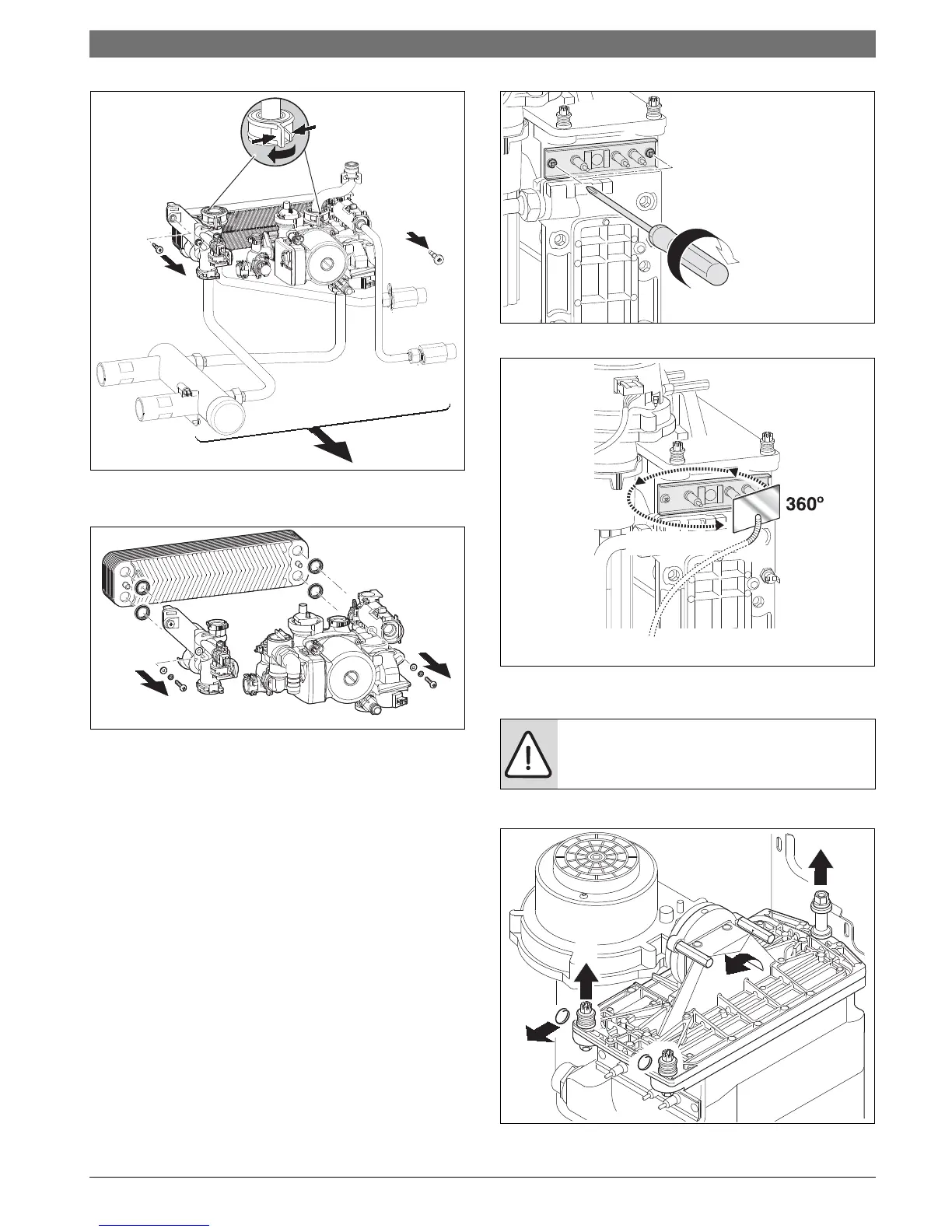

Fig. 81 Removing the hydraulic assembly
▶ Remove the plate type heat exchanger.
Fig. 82 Removing the plate heat exchanger
▶ Install a new plate type heat exchanger with new gaskets and
reconnect the hydraulic assembly in reverse order.
▶ Check all connections used during maintenance for leaks.
15.1.4 Checking the electrodes
▶ Remove the electrode set ( page 8 / 10) including gasket and
check the electrodes for contamination; clean or replace, as
required.
▶ Re-install electrode set with new gaskets and check for leaks.
Fig. 83 Reinstalling the electrode set
Fig. 84 Check for gas leaks
15.1.5 Burner servicing
▶ Remove the burner cover (steps 1 - 4).
Fig. 85 Removing the burner cover
