Installing a Recessed Mount
Overview
The mount is supplied with two different trim rings and different
tooling hole positions on the sides of the recess mount. Use the
trim ring and hole position best suited for your camera.
Installing the Recessed Mount
Notice!
The recessed mounting bracket is provided with an additional
safety tether point. To prevent injury, attach a safety wire from
a secure anchor point above the ceiling to this tether point.
To mount to a recess mount, do the following:
1. Determine a secure location for the recessed mount.
96 (3.78)
194 (7.64)
55.1 (2.17)

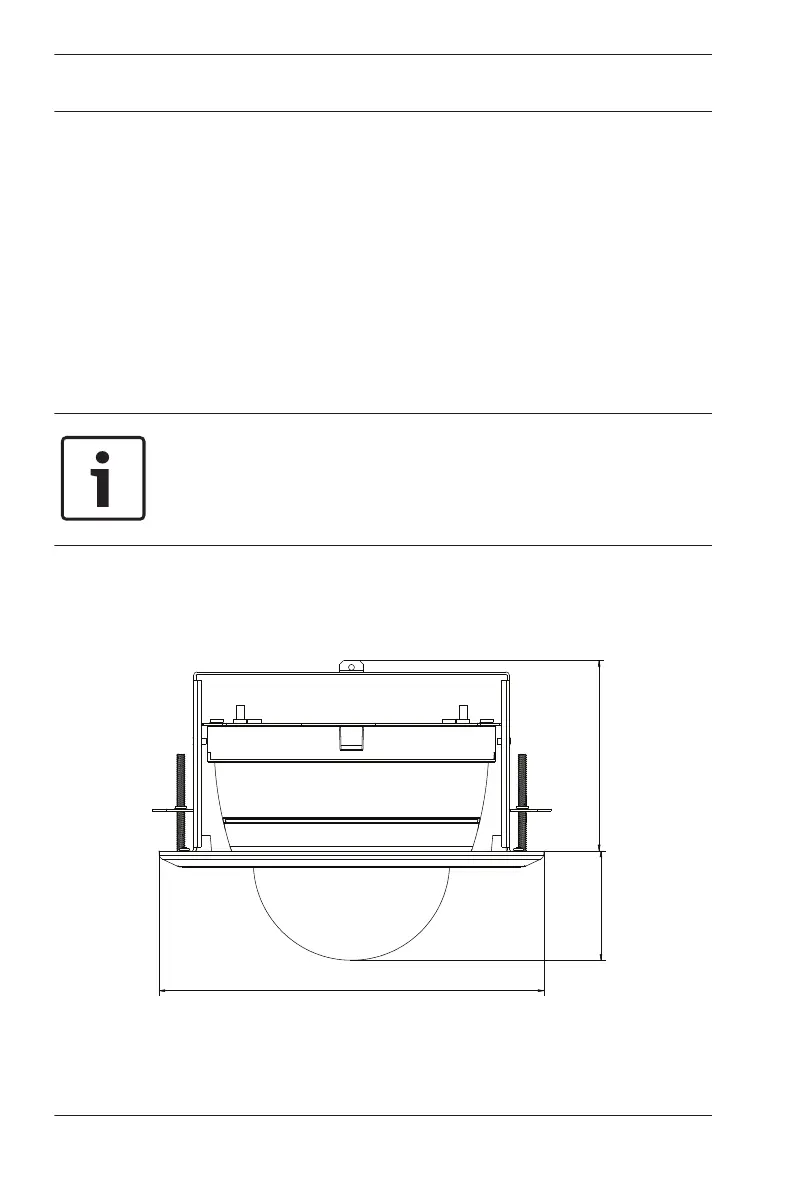

Figure 3.1: Recess Mount Dimensions
2. Drill or cut a 7 in. hole with a tolerance of ±1/8 in. (177.8
±2.2 mm).
3
3.1
3.2
6 en | Installing a Recessed Mount In-ceiling mount
2014.08 | v1.0 | AM18-Q0679 Bosch Security Systems
