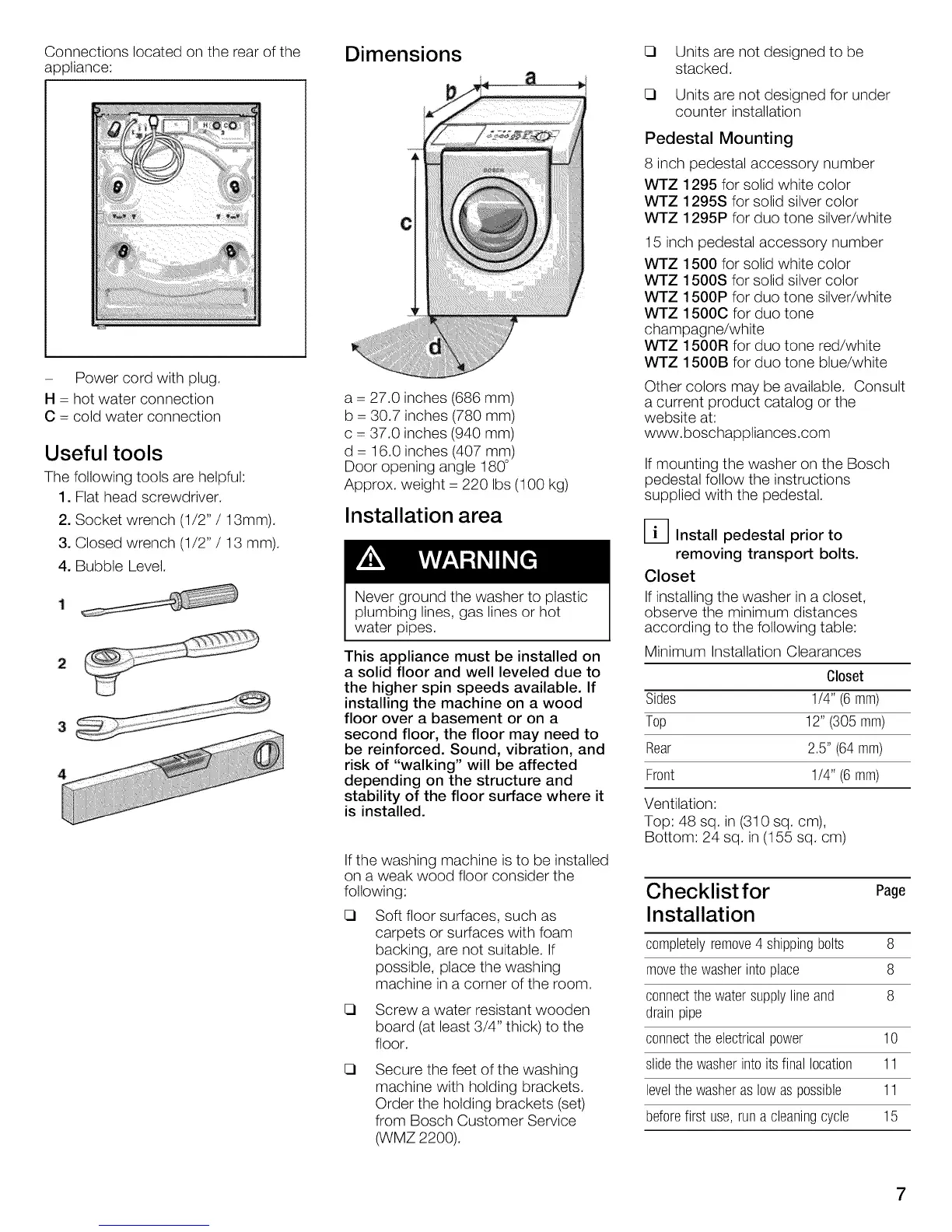

Connectionslocatedontherearofthe Dimensions c_ units are not designed to be
appliance: stacked.
- Power cord with plug.
H = hot water connection
C = cold water connection
Useful tools
The following tools are helpful:
1. Flat head screwdriver.
2. Socket wrench (1/2" / 13mm).
3. Closed wrench (1/2" / 13 mm).
4. Bubble Level.
2
a = 27.0 inches (686 mm)
b = 30.7 inches (780 mm)
c = 37.0 inches (940 mm)
d = 16.0 inches (407 ram)
Door opening angle 180°
Approx. weight = 220 Ibs (1O0 kg)
Installation area
Never ground the washer to plastic
plumbing lines, gas lines or hot
water pipes.
This appliance must be installed on
a solid floor and well leveled due to
the higher spin speeds available. If
installing the machine on a wood
floor over a basement or on a
second floor, the floor may need to
be reinforced. Sound, vibration, and
risk of "walking" will be affected
depending on the structure and
stability of the floor surface where it
is installed.
If the washing machine is to be installed
on a weak wood floor consider the
following:
Soft floor surfaces, such as
carpets or surfaces with foam
backing, are not suitable. If
possible, place the washing
machine in a corner of the room.
Screw a water resistant wooden
board (at least 3/4" thick) to the
floor.
E3
Secure the feet of the washing
machine with holding brackets.
Order the holding brackets (set)
from Bosch Customer Service
(WMZ 2200).
Units are not designed for under
counter installation
Pedestal Mounting
8 inch pedestal accessory number
WTZ 1295 for solid white color
WTZ 1295S for solid silver color
WTZ 1295P for duo tone silver/white
15 inch pedestal accessory number
WTZ 1500 for solid white color
WTZ 1500S for solid silver color
WTZ 1500P for duo tone silver/white
WTZ 15000 for duo tone
champagne/white
WTZ 1500R for duo tone red/white
WTZ 1500B for duo tone blue/white
Other colors may be available. Consult
a current product catalog or the
website at:
www.boschappliances.com
If mounting the washer on the Bosch
pedestal follow the instructions
supplied with the pedestal.
D Install pedestal prior to
removing transport bolts.
Closet
If installing the washer in a closet,
observe the minimum distances
according to the following table:
Minimum Installation Clearances
Closet
Sides 1/4" (6 mm)
Top 12" (305 mm)
Rear 25" (64mm)
Front 1/4" (6 mm)
Ventilation:
Top: 48 sq. in (310 sq. cm),
Bottom: 24 sq. in (155 sq. cm)
Checklistfor Page
Installation
completelyremove4 shippingbolts 8
movethewasherintoplace 8
connectthe watersupplylineand 8
drainpipe
connectthe electricalpower 10
slidethe washerintoitsfinal location 11
levelthe washeras10waspossible 11
beforefirst use,runa cleaningcycle 15
