User Manual
Singular Combi Boiler - BTC 439003302 A (2021/03)

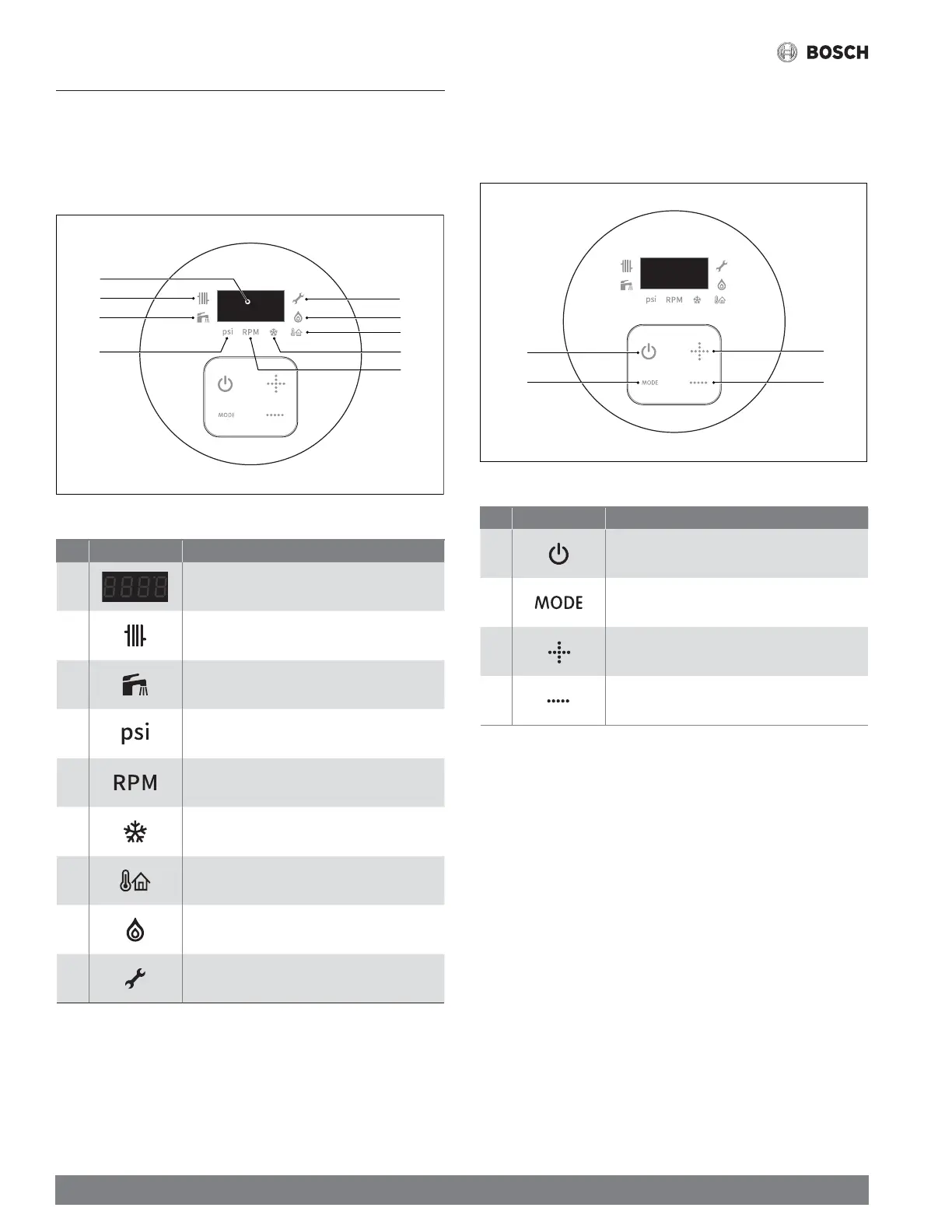

2 Front Panel
2.1 Digital Display and Icons
The digital display and icons on the front panel provide important information
required for the operation of the boiler. Refer to the table below for detailed
information.
Figure 1
A
B
C
D
E
F
G
H
I
Icon Description
A
Digital display
Displays water temperature, error codes, etc.
B
Space heating mode
Indicates space heating mode operation.
C
DHW mode
Indicates DHW mode operation.
D
Pressure
Indicates the pressure in the boiler.
E
RPM
Indicates revolutions per minute (RPM).
F
Freeze protection mode
Indicates freeze protection mode operation.
G
Outdoor reset mode
Indicates ambient temperature sensor operation.
H
Combustion
Indicates gas burner operation.
I
Error
Indicates error.
Table 2
2.2 Buttons
Using the buttons on the front panel, you can turn the boiler on or off , adjust the
water temperature, and change modes to monitor the operation status. Refer to the
table below for detailed information.
Figure 2
A
B
D
C
Icon Description
A
Power
Turns the boiler on or off .
B
Mode
Changes the mode.
C
UP
Increases the temperature.
D
Down
Decreases the temperature.
Table 3
