Counter-Flow configurability | 13SM Series Heat Pump
6 720 220 406 (2015/02)Revised 02-15

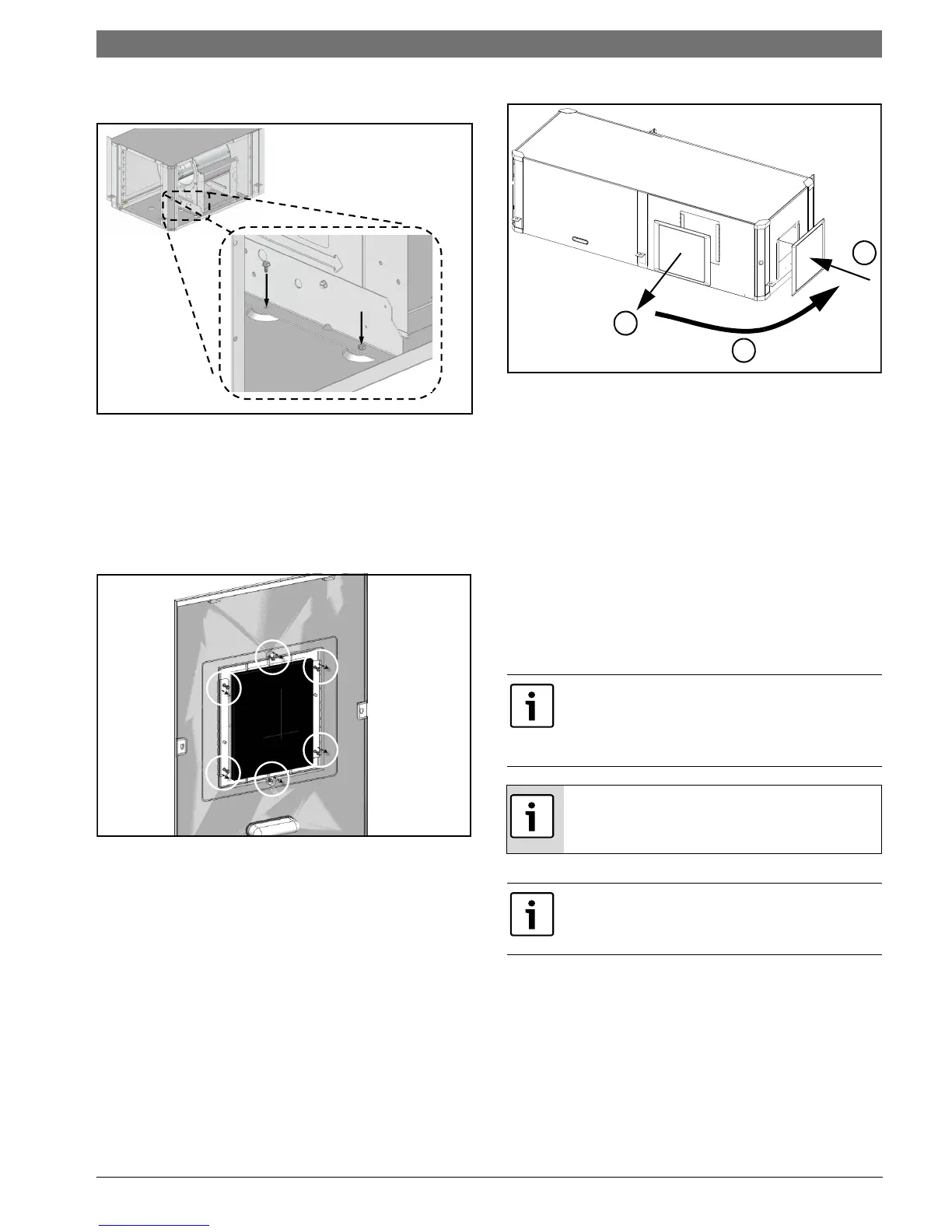

14. Secure (2) the now horizontal blower brackets
to the unit base using (4) screws. (Figure#35)
Figure # 35
15. Reconnect blower motor wiring and ground
wire.
16. Remove and retain plastic Blower opening
cover by removing (6) screws and cutting/
tearing insulation at perforations around the
perimeter of cover. Reinstall it in the new
location (Figure#36 and #37)
Figure # 36
Figure # 37
17. Reinstall all unit panels.
COUNTER-FLOW CONFIGURABILITY
The Counter-Flow Configuration water source heat
pump is a dedicated down flow configuration.
Available from the factory in Left-hand and right-
hand return air configurations.
VERTICAL CONFIGURABILITY
The Vertical (VT) Configuration water source heat
pump is designed to be field configured for various
configurations. This is achieved by relocating
Electrical box (E-box), unit panels and reorienting
blower to discharge UP, BACK OR SIDE. See Figure
#37 through #41 for more detail.
The unit, as shipped from the factory, does not
have configuration on the discharge air from to
side or back, field configuration kit is requiered,
(sold as an accessory Kit).
Discharge air configuration change is not
possible on Heat Pumps equipped with
Electric Heat Option.
Blower, E-box and panel configuration
changes should be done prior to unit being
installed in the final location.
