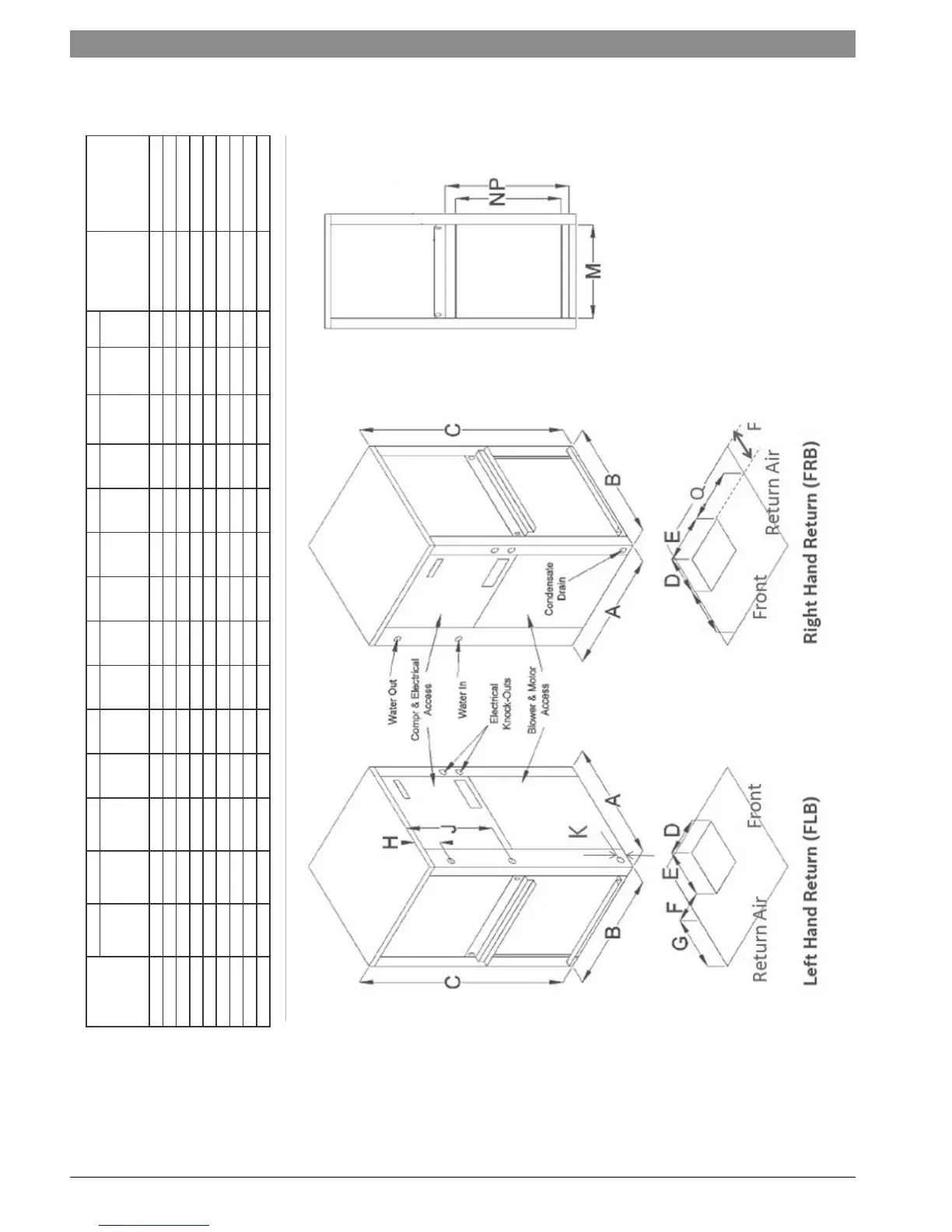

52 | Dimensional Drawings SV Heat PumpSeries
SV Heat Pump Series8 733 914 818 (2014?08) Subject to change without prior notice
Counter-Flow
MODEL
A B C D E F G H J K M N P Q
Water
Connections
Replacement
Nominal Filter
Size
Width Depth Height
Water
out
Water
in
Drain
R/A
Duct
Flg
Width
R/A
Duct
Flg
Height
Filter
Rack
Height
SV015 21.5 21.5 32.25 4.1 6.4 8.7 7.6 6.7 12.3 1.0 20.0 14.0 16.0 7.6 3/4" F.P.T. 16x20x1
SV018 21.5 21.5 32.25 9.7 9.0 5.9 6.8 6.7 12.3 1.0 20.0 14.0 16.0 6.7 3/4" F.P.T. 16x20x1
SV024 21.5 21.5 39.25 9.7 9.0 5.9 6.8 3.2 15.4 1.0 20.0 18.0 20.0 6.7 3/4" F.P.T. 20x20x1
SV030 21.5 21.5 39.25 9.7 9.0 5.9 6.8 3.2 15.4 1.0 20.0 18.0 20.0 6.7 3/4" F.P.T. 20x20x1
SV036 21.5 26 43.25 10.3 9.2 7.8 6.2 7.4 15.4 1.0 24.0 22.0 24.0 6.2 3/4" F.P.T. 24x24x1
SV042 21.5 26 43.25 11.3 10.5 7.4 5.9 7.4 15.4 1.0 24.0 22.0 24.0 5.9 3/4" F.P.T. 24x24x1
SV048 24 32.5 45.25 11.4 10.5 10.5 6.7 7.0 17.0 1.0 30.0 22.0 24.0 6.7 1" F.P.T. 24x30x1
SV060 24 32.5 45.25 12.5 11.7 10.0 6.1 7.0 17.0 1.0 30.0 22.0 24.0 6.1 1" F.P.T. 24x30x1
SV070 26 33.25 58.25 12.5 11.7 10.3 7.2 11.8 22.3 1.0 30.0 30.0 32.0 7.1 1" F.P.T. 16x30x1 (2)
