6 720 818 420 (2016/09) Tronic 1000T / 2000T
12 | Installation

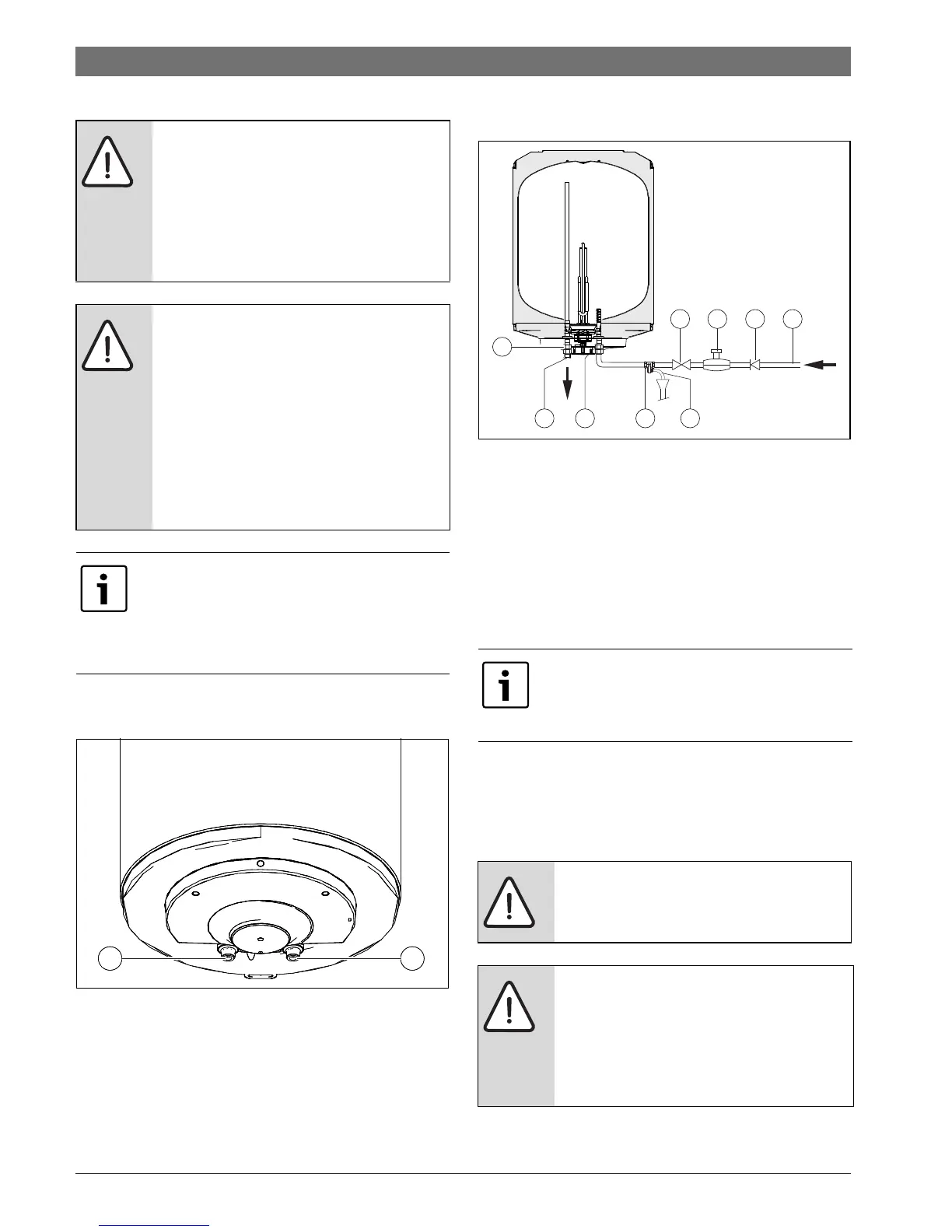

5.4 Water connection
▶ Identify the piping for hot and cold water, in order to avoid
a possible change (Fig. 9).
Fig. 9
[1] Cold water inlet (right hand side)
[2] Hot water outlet (left hand side)
▶ Use the appropriate connection accessories to do the
hydraulic connection to the appliance.
Fig. 10 Water connection
[1] Galvanic isolator
[2] Hot water outlet
[3] Safety valve
[4] Drain connection
[5] Cut off valve
[6] Reduction valve
[7] Non return valve
[8] Connection to the water line
In the case of freezing:
▶ Switch off the appliance.
▶Purge the appliance ( chapter 6.3).
Safety valve
CAUTION: Damage to appliance
connections through contact corrosion!
▶ Use galvanic isolators in your water
connections. These will avoid galvanic
electric currents between the hydraulic
link metals and, consequently corrosion
of these.
NOTICE: Material damage!
▶ Install a filter at the water inlet in areas
where the water contains particles or
sediments.
▶ Install a thermostatic regulator on the
output pipe of the device if PER pipes are
used. It will be set according to the
performance of the material used.
▶ The pipes used must support 10 bars (1
MPa) and 100 °C.
It is recommended:
▶ to purge the system before appliance
installation, the existence of sand can
cause a reduction in flow or even cause a
total obstruction.
In order to avoid problems caused by sudden
pressure changes, we recommend the
installation of a non return valve at the
appliance (Fig. 10, [7]).
DANGER:
▶ Install a safety valve at the water inlet of
the appliance (Fig. 10).
NOTICE:
NEVER OBSTRUCT THE PURGE OUTLET OF
THE SAFETY VALVE.
Never install any accessory between the
safety valve and the cold-water inlet (right
hands side) of the appliance.
