Product information
Condens 5000W – 6720813953 (2018/12)
4
H Combustion air/ambient air
The air in the installation location must be free of
flammable or chemically aggressive substances.
▶ Do not store or use any highly flammable or
explosive materials (paper, petrol, thinners, paints
etc.) within the vicinity of the heat source.
▶ Do not store or use any corrosive substances
(solvents, adhesives, chlorinated cleaning agents,
etc.) within the vicinity of the heat source.
Condensate tube
Condensate is produced in this wall mounted gas
condensing boiler and removed via a condensate
tube. Modification or blocking of the condensate tube
is not permitted.
2 Product information
2.1 Declaration of conformity
The design and operating characteristics of this product comply with the
European and national requirements.
The CE marking declares that the product complies with all the
applicable EU legislation, which is stipulated by attaching this
marking.
The complete text of the Declaration of Conformity is available on the
Internet: www.bosch-climate.com.au.
2.2 Appliance types
This document refers to the following appliance types:
• Condens 5000W ZBR 70-3
• Condens 5000W ZBR 100-3
The designation of the wall mounted condensing boiler comprises the
following:
• Bosch: manufacturer
• Condens 5000W ZBR-3: product name
• 70 or 100: type name
3 Commissioning
3.1 Overview of components

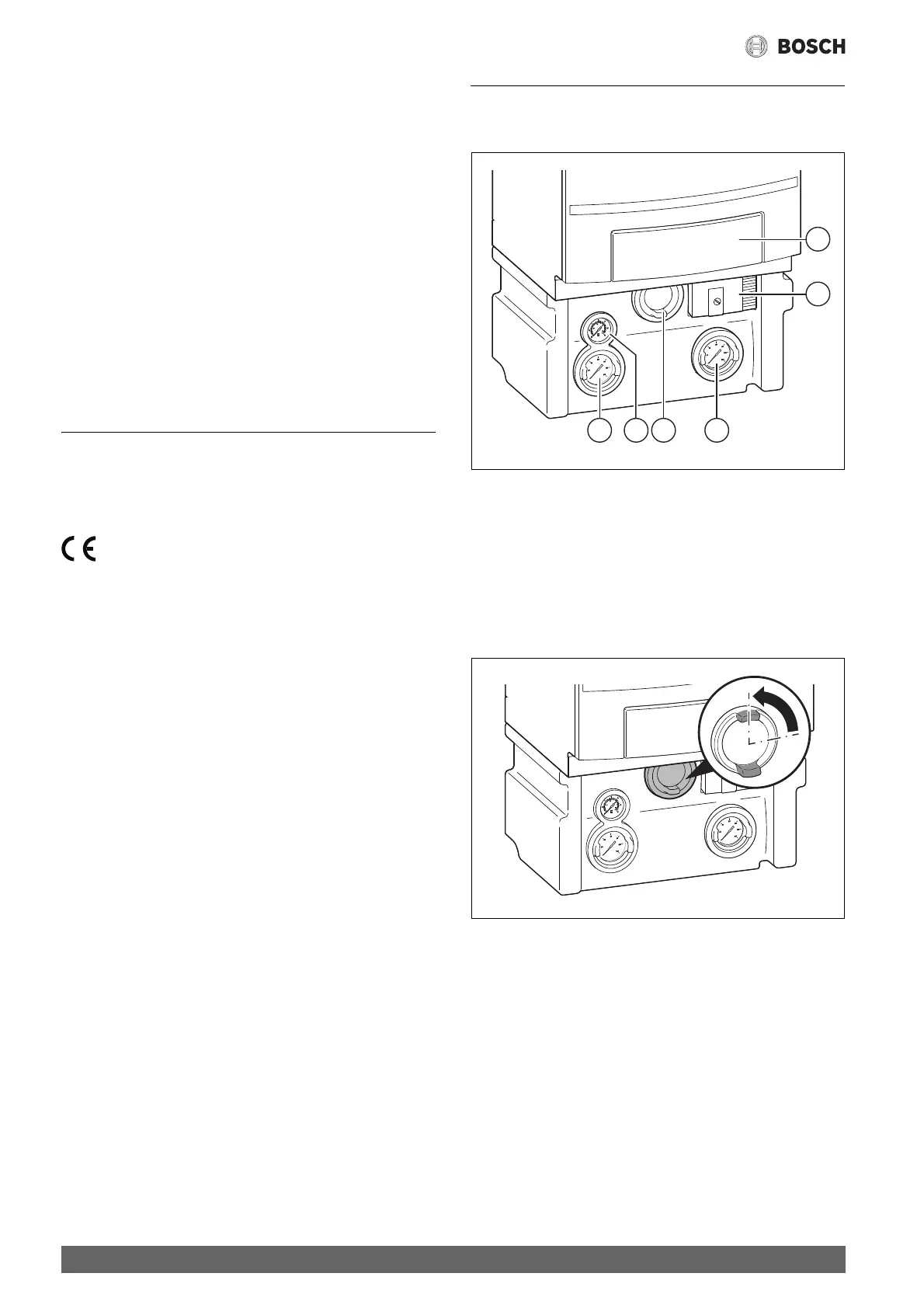

Fig. 1 Overview of components
[1] Control panel
[2] Pump
[3] Shut-off valve with temperature sensor
[4] Gas isolator
[5] Pressure gauge
3.2 Opening the gas tap
▶ Push in the gas isolator and turn to the left so the tap lines up with the
gas line.
Fig. 2 Opening the gas tap
0010020117-001
4 353
2
1
0010020118-001
