Notes on installation and operation
41
Greenstar – 6721822579 (2021/01)

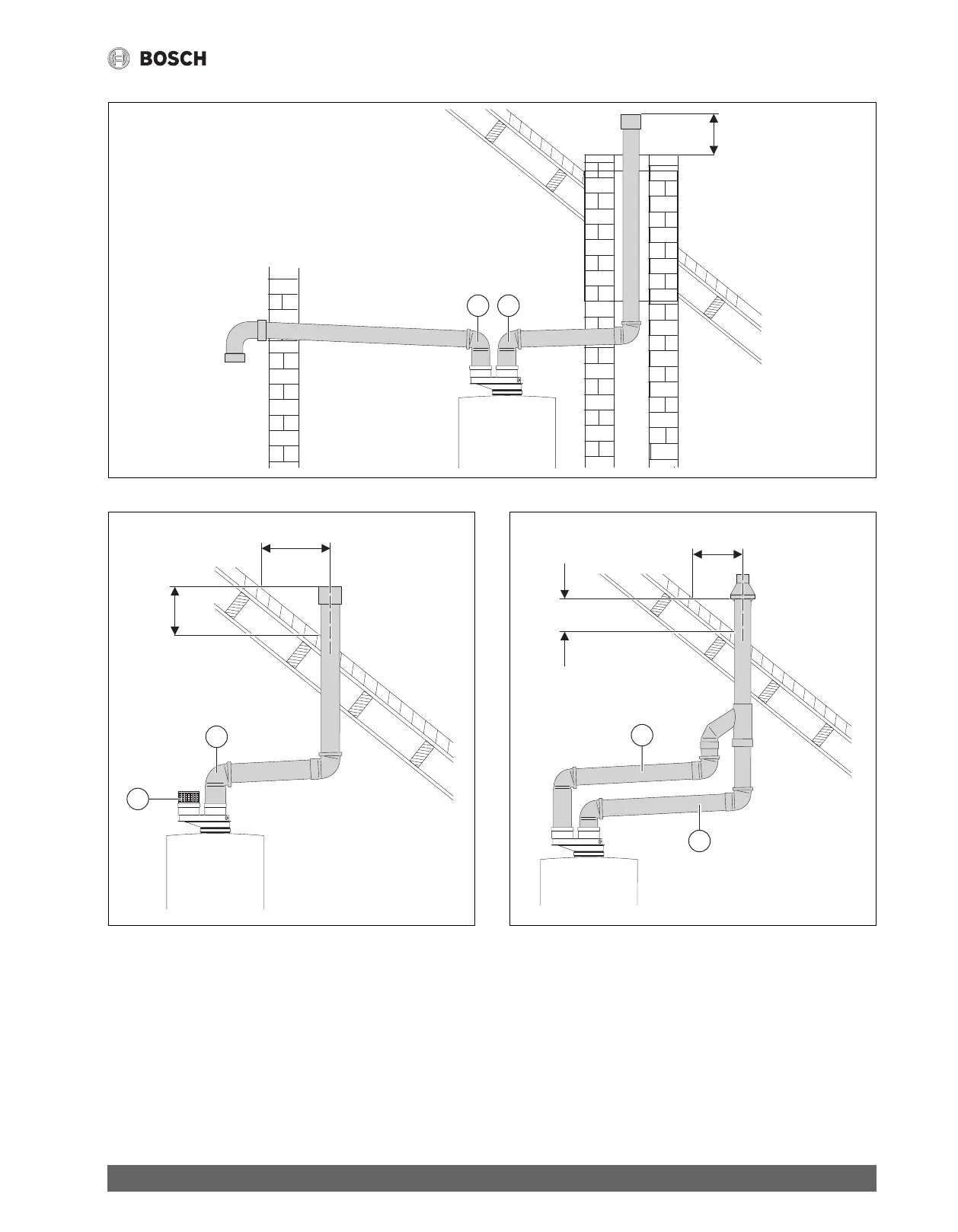

Fig. 36 Vertical venting system (sealed combustion)
Fig. 37 Vertical venting system (room air only) Fig. 38 Vertical venting system (sealed combustion)
Key to Fig. 36, Fig. 37 and Fig. 38:
[1] Intake
[2] Exhaust
X Greater than 12 inches (305 mm)
Y Greater than 12 inches (305 mm)
6 720 641 933-09.2O
Y
1 2
6 720 641 933-07.1O
1
Y
X
2
6 720 641 933-10.1O
1
2
Y
X
