Using your system
Be sure to get the digital audio signal
To be sure that the digital audio signal from your DVD player reaches your surround receiver,
connect the digital audio output from your DVD player to the digital audio input on your
receiver (Figure 7).
Before you play a DVD disc, be sure to select the digital output in the setup menu of your
DVD player. For additional setup and operating information, please refer to the owner’s guide
that came with your surround receiver.

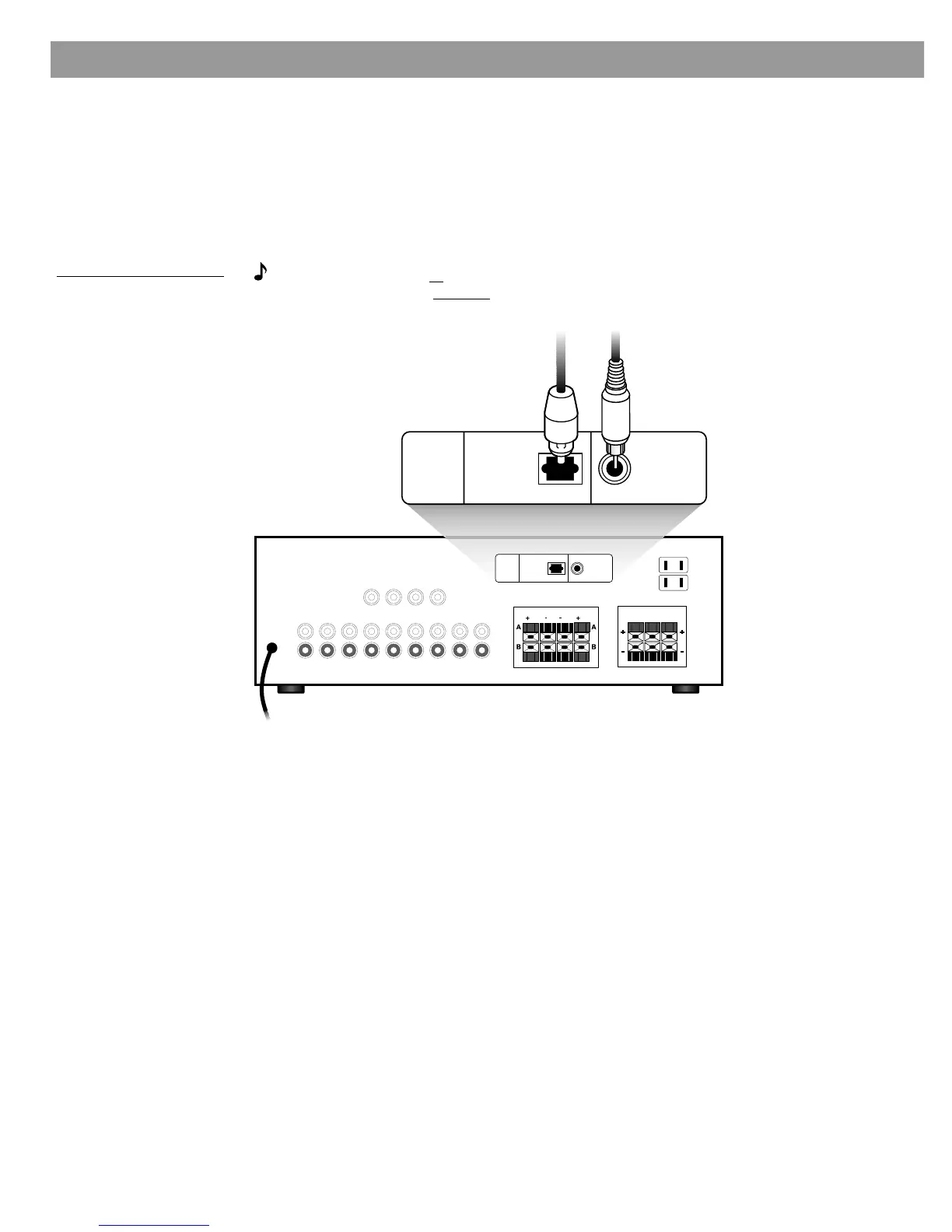

Figure 7
Digital signal connections
on a surround receiver
Setting your analog surround sound receiver
For analog surround sound (non-digital) applications, we recommend that you set the
surround-sound center mode of your receiver to WIDE. Instructions for this process vary,
depending on the brand and model of your surround receiver. Follow your receiver owner’s
guide for testing and adjusting the balance of each speaker.
SURROUND SPEAKERS
R CENTER
FRONT SPEAKERS
R
L
LREAR
DIGITAL
IN
PLAY IN
(OPTICAL)
PLAY IN
(COAXIAL)
DIGITAL
IN
PLAY IN
(OPTICAL)
PLAY IN
(COAXIAL)
Note: Use the optical or coaxial digital
input connections, but not both.
OR
AM264924_00 _V.pdf • August 13, 2002

Bose Acoustimass 15 Specifications

General

Audio decoders	-
RMS rated power	- W
Audio output channels	5.1 channels
Apple docking compatibility	Not supported
Surround speaker dimensions (WxHxD)	78 x 157 x 102 mm
Product color	Silver
Package weight	33000 g
Disc types supported	No
Harmonized System (HS) code	85182200

Weight and Dimensions

Subwoofer weight	20300 g
Center speaker weight	1100 g
Subwoofer dimensions (WxDxH)	206 x 414 x 739 mm
Center speaker dimensions (WxDxH)	157 x 102 x 78 mm
