Bose ACOUSTIMASS PRO User Manual

17
PACKAGING
Item
Number
Descrition Part Number Qt y
1 Carton 140022 1
2 Front and Rear 140024 2
3 Creased Sheet 140025 2
4 Polybag 133174 1
5 Top and Bottom 140026 2
6 Sides 140023 2

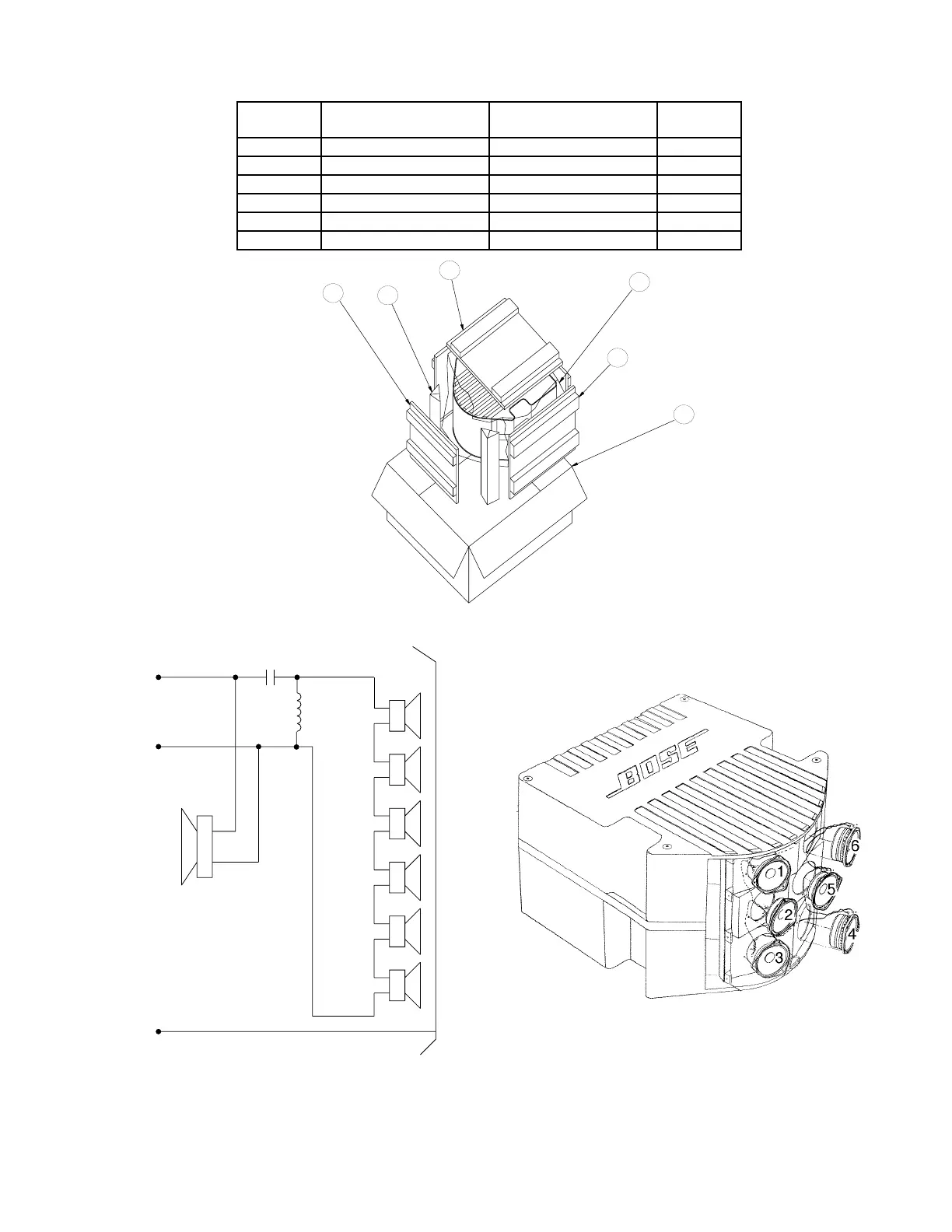

Figure 6. Packaging View
Figure 7. Wiring Schematic
+
+
+
+
+
+
-
-
-
-
-
-
+
-
From Amplifier
+
-
To Amplifier Chassis
Green
Baffle
BLK/ORG
Black
Red
Orange
Red
Black
Yellow
x5
3
2
1
6
5
4
25uF
1mH
Figure 8. Driver Location
1
2
3
5
4
6
