ArenaMatch DeltaQ Array Loudspeaker • Installation Guide
Specifications

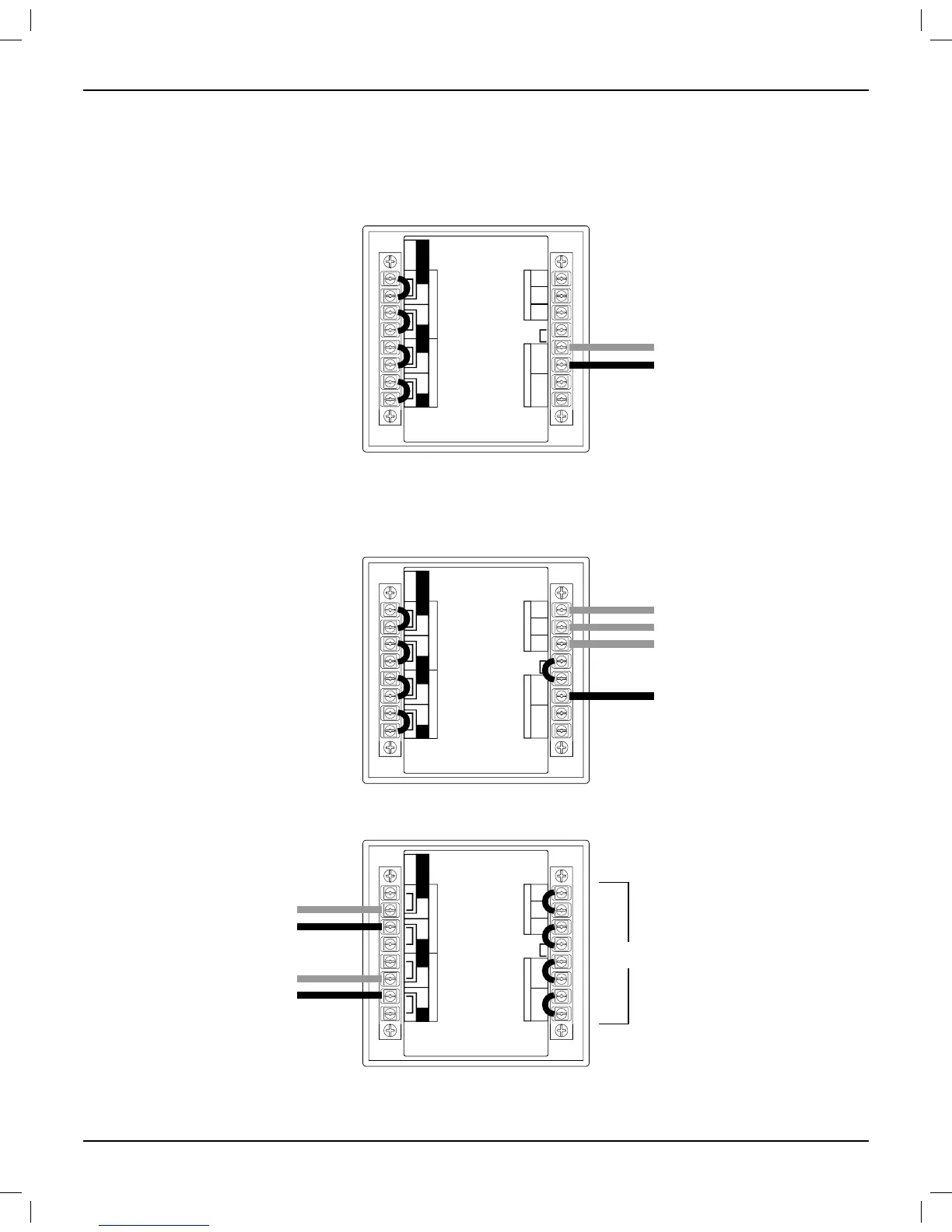

Input Panel Wiring
Input connector terminals are available for passive, bi-amp, or 70V/100V transformer configurations. All
ArenaMatch loudspeaker modules are shipped in the passive mode with transformer bypassed.
Passive Crossover (Low-impedance)
JUMPERS FOR PASSIVE XO
LFHF
REMOVE JUMPERS FOR BI-AMP
100W/
200W
200W/
400W
400W/
NC
JUMPER FOR
70V/ 100V
(REMOVE FOR
DIRECT IN)
+
–
+
–
70V/ 100V
COMM COMM
IN THRU
PASSIVE XO
+++
+
–
+
–
Passive Crossover with 70V/100V Transformer
Your wiring can be adjusted to switch tap settings: 100W/200 W, 200W/400W, or 400W/NC.
JUMPERS FOR PASSIVE XO
LFHF
REMOVE JUMPERS FOR BI-AMP
100W/
200W
200W/
400W
400W/
NC
JUMPER FOR
70V/ 100V
(REMOVE FOR
DIRECT IN)
+
–
+
–
70V/ 100V
COMM COMM
IN THRU
PASSIVE XO
+++
+
–
+
–
Bi-amp
JUMPERS FOR PASSIVE XO
LFHF
REMOVE JUMPERS FOR BI-AMP
100W/
200W
200W/
400W
400W/
NC
JUMPER FOR
70V/ 100V
(REMOVE FOR
DIRECT IN)
+
–
+
–
70V/ 100V
COMM COMM
IN THRU
PASSIVE XO
+++
+
–
+
–
HF Input
LF Input
Jumpers may be stored here
Connect to appropriate tap:
100W, 200W, or 400W
