• Use the supplied audio input cable, which allows for placement of the module up to 6 feet
(2 m) from your sound source.
• To place the module farther from the source, use a shielded audio input extension cable
available from retail electronics stores.
Positioning the speakers
The supplied speaker cables allow the speakers to be set up within 6 feet (2 m) of the
module.
The speakers are designed for desktop placement on stands that lift them slightly above the
surface or for resting directly on it.
If you prefer to use the speakers without stands, removing them is simple (Figure 4). After
removing a speaker from the stand, apply the supplied rubber feet to the bottom surface
for stability.
CAUTION:
&KRRVHDVWDEOHOHYHOVXUIDFHIRUWKHVSHDNHUVDQGVWDQGV9LEUDWLRQFDQFDXVH
WKHPWRPRYHSDUWLFXODUO\RQVPRRWKVXUIDFHVOLNHDGHVNWRS
Keep the speakers:
• Up to 3 feet (91 cm) from the sides of the screen.
• At equal distance on each side of the computer monitor or TV and slightly angled away
from it (Figure 2 on page 7).

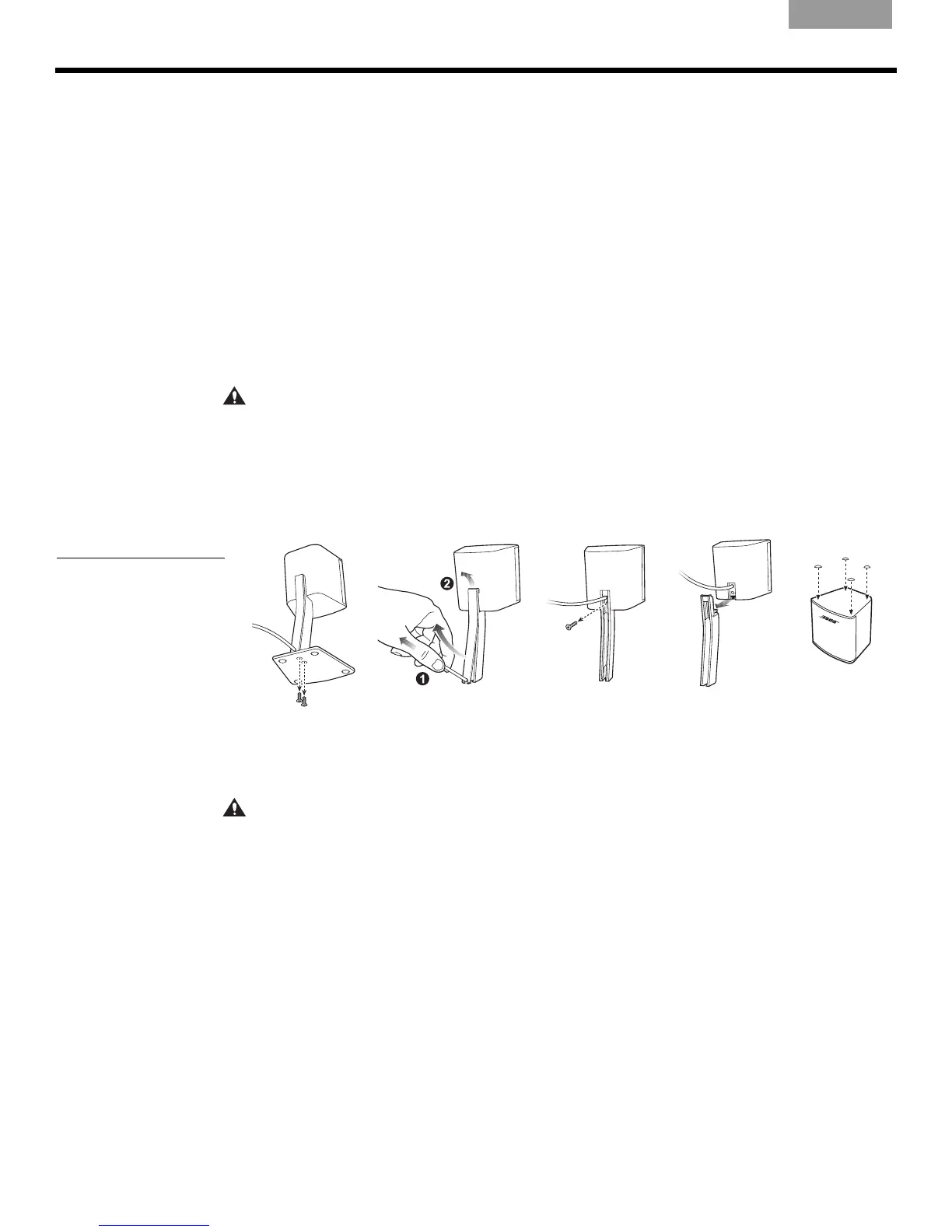

Figure 4
Removing a speaker from
the stand (a) and applying
rubber feet (b) to the
speaker
b.
Making connections
Custom cables supplied with this system simplify connections to the labeled jacks on the rear
of the Acoustimass
®
module (Figure 7).
CAUTION:
'RQRWSOXJWKH$FRXVWLPDVVPRGXOHLQWRDQ$&SRZHUPDLQVRXWOHWXQWLODOOWKH
VRXUFHFRPSRQHQWVDUHFRQQHFWHGWRWKHPRGXOH
