ELECTRICAL PART LIST

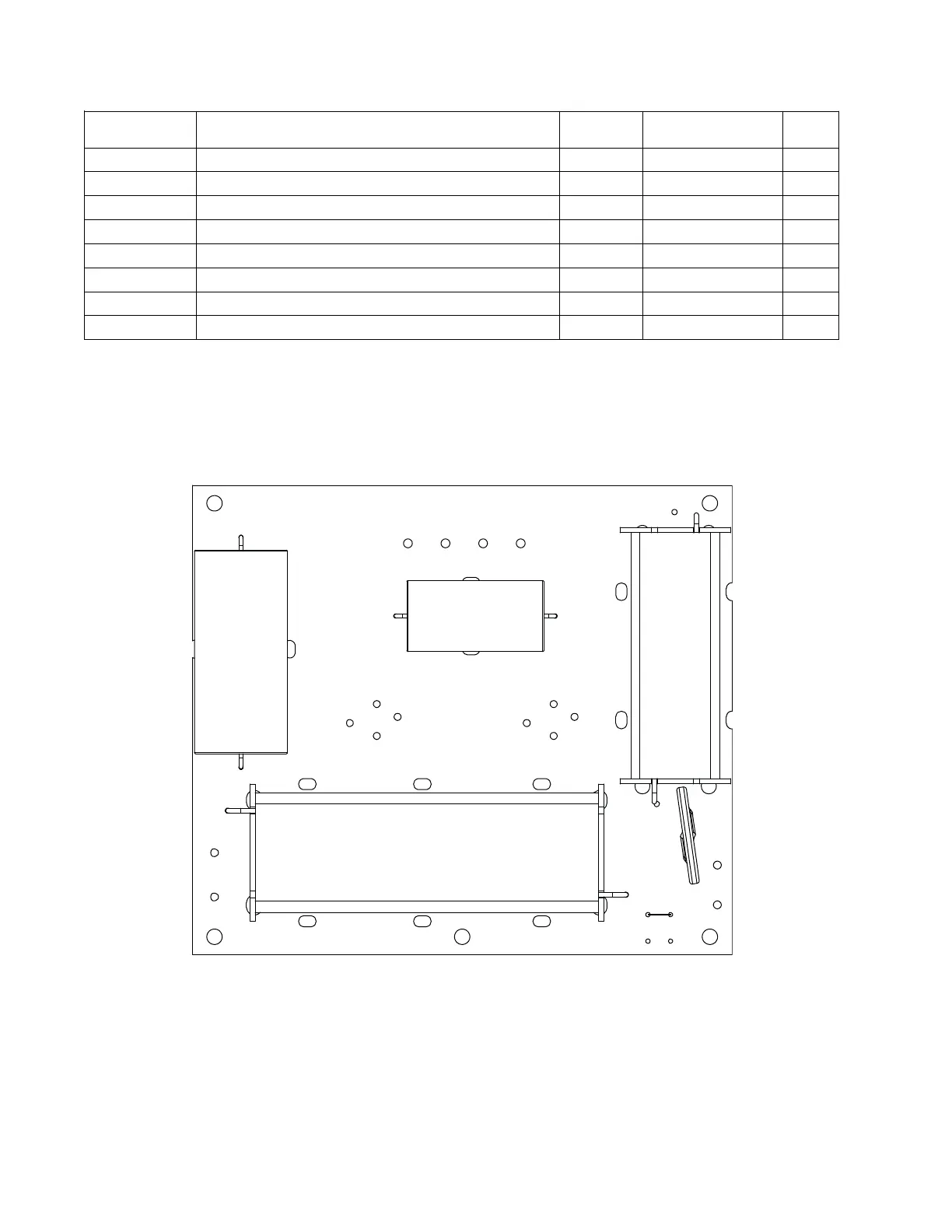

Crossover PCB Assembly
C2
C1
L1
L2
P1
TW+
TW-
WF+
WF-
Reference
Designator
Description Qty.
V
endor Part
Number
Note
C1 MKT Polyester Film CAP 6.2UF 160V +-5% 1 -
C2 MKT Polyester Film CAP 22UF 100V +-5% 1 -
L1 2.2MH N/A 1KHZ DIP Laminated Core Inductor 1 -
L2 2.7MH N/A 1KHZ DIP Laminated Core Inductor 1 -
P1 RXE 250 PTC MAX 0.08OHM 40A G 1 -
- WIRE JUMPER 1 -
- NEUTRIK SPEAKON CNT. NL4MD-V M 2 -
- BARRIER STRIP 4P H=18MM P=9.5MM FM 1 -
