Bose FreeSpace 3 Installer's Guide

6
English
Installation

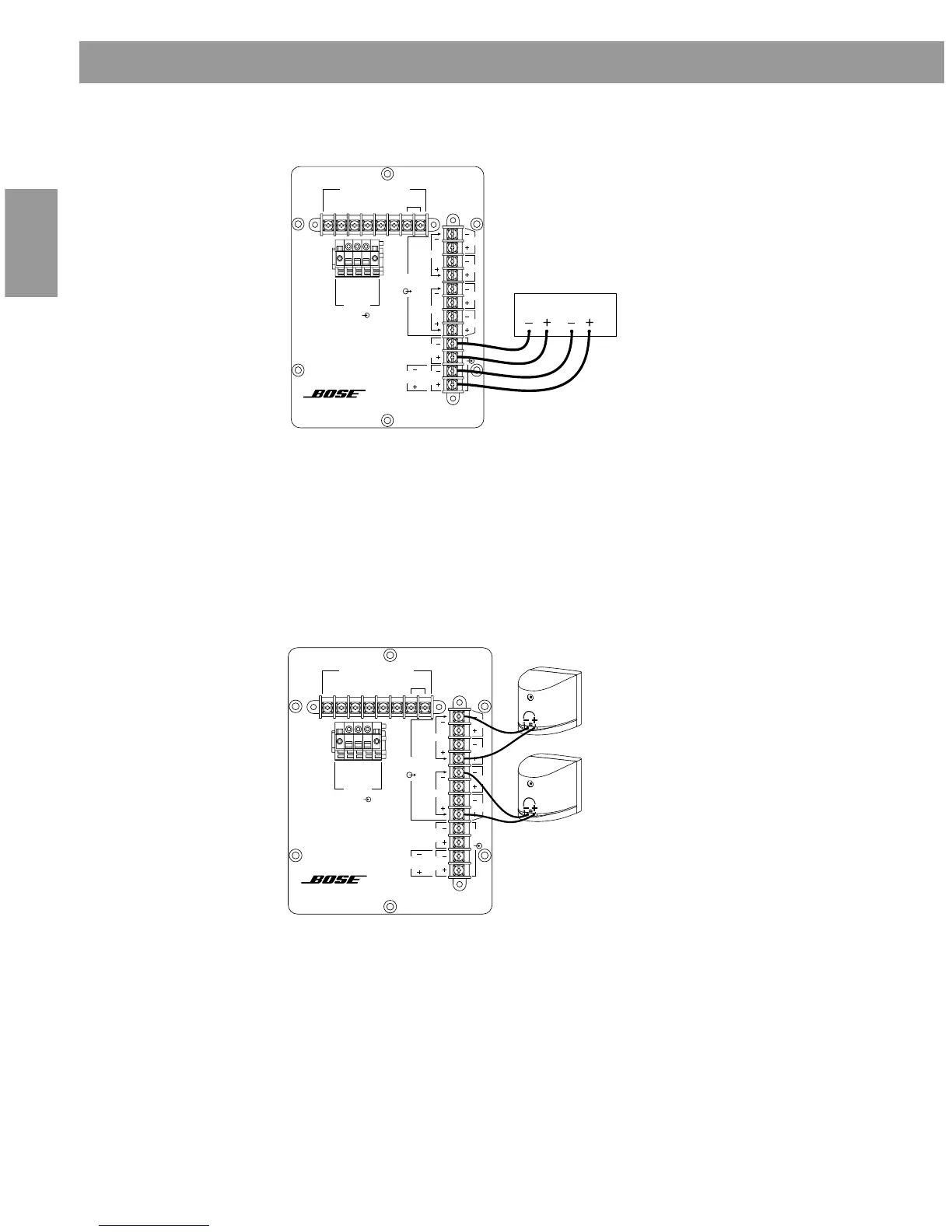

2.4 Satellite speaker connection
With or without use of the transformer, there are 3 options for
connecting the satellite speakers to the module:
• Using 2 satellite speakers
Channel 2
in Stereo
Channel 1
in Stereo
Refer to installation manual
PN254410 for proper installation
and operation instructions
FreeSpace 3
Acoustimass Module
®
Note: Jumpers required
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
use 4-8Ω input.
SATELLITE
CONNECTIONS
4-8Ω
INPUT
STEREO
CH 2
STEREO
CH 1
SAT 1
SAT 2
MONO
USE JUMPERS
SAT 4
SAT 3
SAT 2
SAT 1
+
100W 50W 25W 12W NC
TRANSFORMER SETTINGS
+100V
+70V
COMM
MONO
70V/100V
INPUT___
L R
Stereo Source
Refer to installation manual
PN254410 for proper installation
and operation instructions
FreeSpace 3
Acoustimass Module
®
Note: Jumpers required
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
use 4-8Ω input.
SATELLITE
CONNECTIONS
4-8Ω
INPUT
STEREO
CH 2
STEREO
CH 1
SAT 1
SAT 2
MONO
USE JUMPERS
SAT 4
SAT 3
SAT 2
SAT 1
+
100W 50W 25W 12W NC
TRANSFORMER SETTINGS
+100V
+70V
COMM
MONO
70V/100V
INPUT___
• Connecting a stereo source with the transformer bypassed

Bose FreeSpace 3 Specifications

General

Certification	CE
Product color	White
Housing material	Polystyrene (PS)
Recommended usage	-
Suitable for outdoor use	No
Driver diameter	64 mm
Number of drivers	1
Speaker placement	Tabletop/bookshelf, Wall-mountable
Audio output channels	2.0 channels
Impedance	5 Ω
Sensitivity	82 dB
Frequency range	50 - 16000 Hz
RMS rated power	- W
Package weight	1800 g
Transformer taps	25, 50, 100, 200 W
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	102 mm
Width	77 mm
Weight	800 g
Depth (with stand)	149 mm
