Bose FreeSpace IZA 2120-LZ User Manual

28 - English
pro.Bose.com
Making Connections

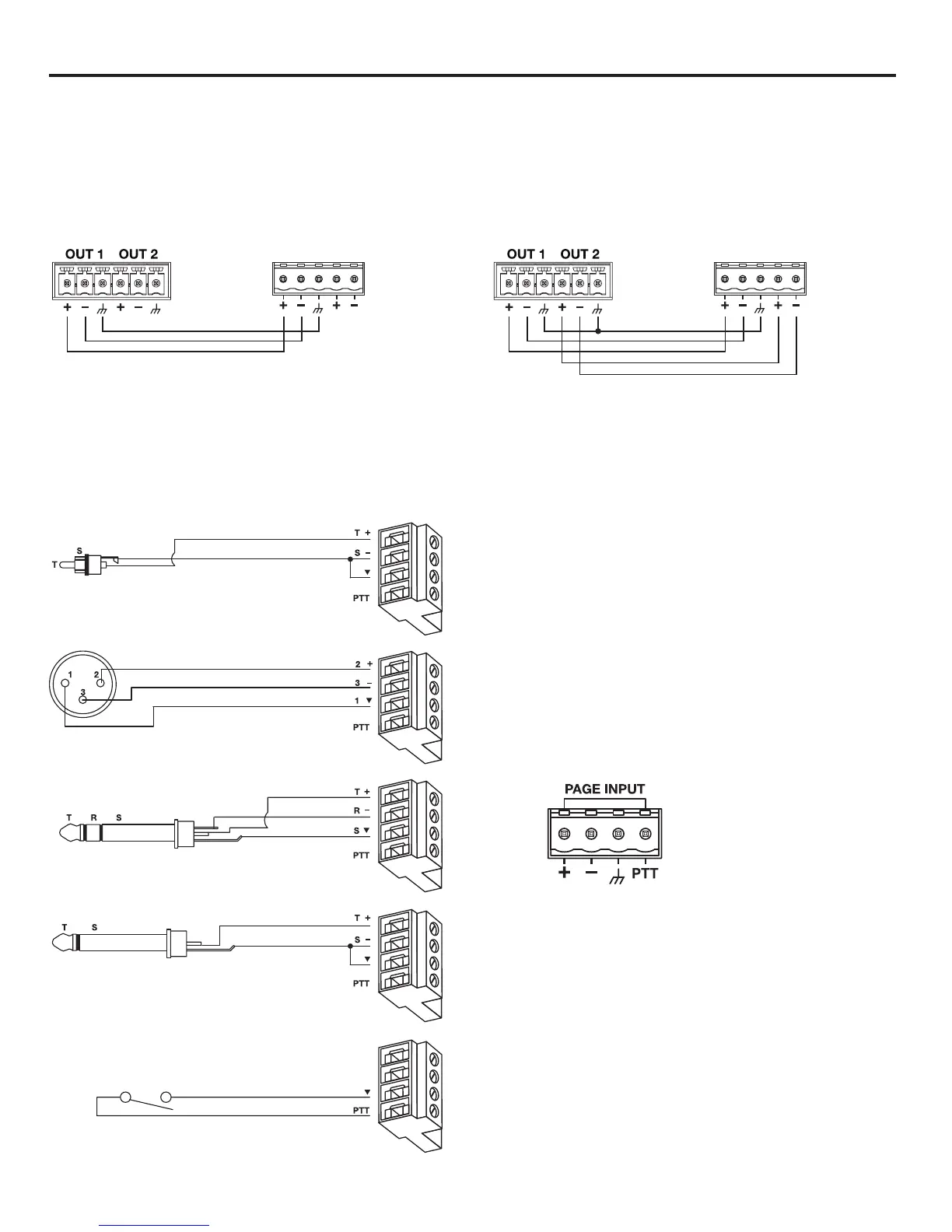

Connecting an amplifier to a ControlSpace
®
engineered sound processor
The balanced inputs of the IZA 2120-LZ/HZ and ZA 2120-LZ/HZ can be used to easily connect to the balanced outputs of
a ControlSpace engineered sound processor.
MONO Input STEREO/Dual MONO Input
ControlSpace ESP
Processor
Amplifier Balanced
Input
ControlSpace ESP
Processor
Amplifier Balanced
Input
Page input connections
The PAGE INPUT is a mic/line input with a trigger contact closure. This input signal is routed to all outputs (including AUX
OUT) when the trigger is detected. This is designed for push-to-talk paging microphones and telephone paging systems.
In VOX mode a dynamic microphone is also supported. See the diagrams below for input wiring configurations. Use the
included 4-pin Euroblock.
Phone Plug (balanced)
Phone Plug (unbalanced)
Normally Open Switch (latching)
RCA
XLR
