Expanding an IZA system with a ZA amplifier
pro.Bose.com
Connecting an IZA 2120-LZ/HZ amplifier to multiple zone amplifiers
The auxiliary output of the IZA 2120-LZ/HZ can be connected in a star configuration to four zone amplifiers without
experiencing signal loss.

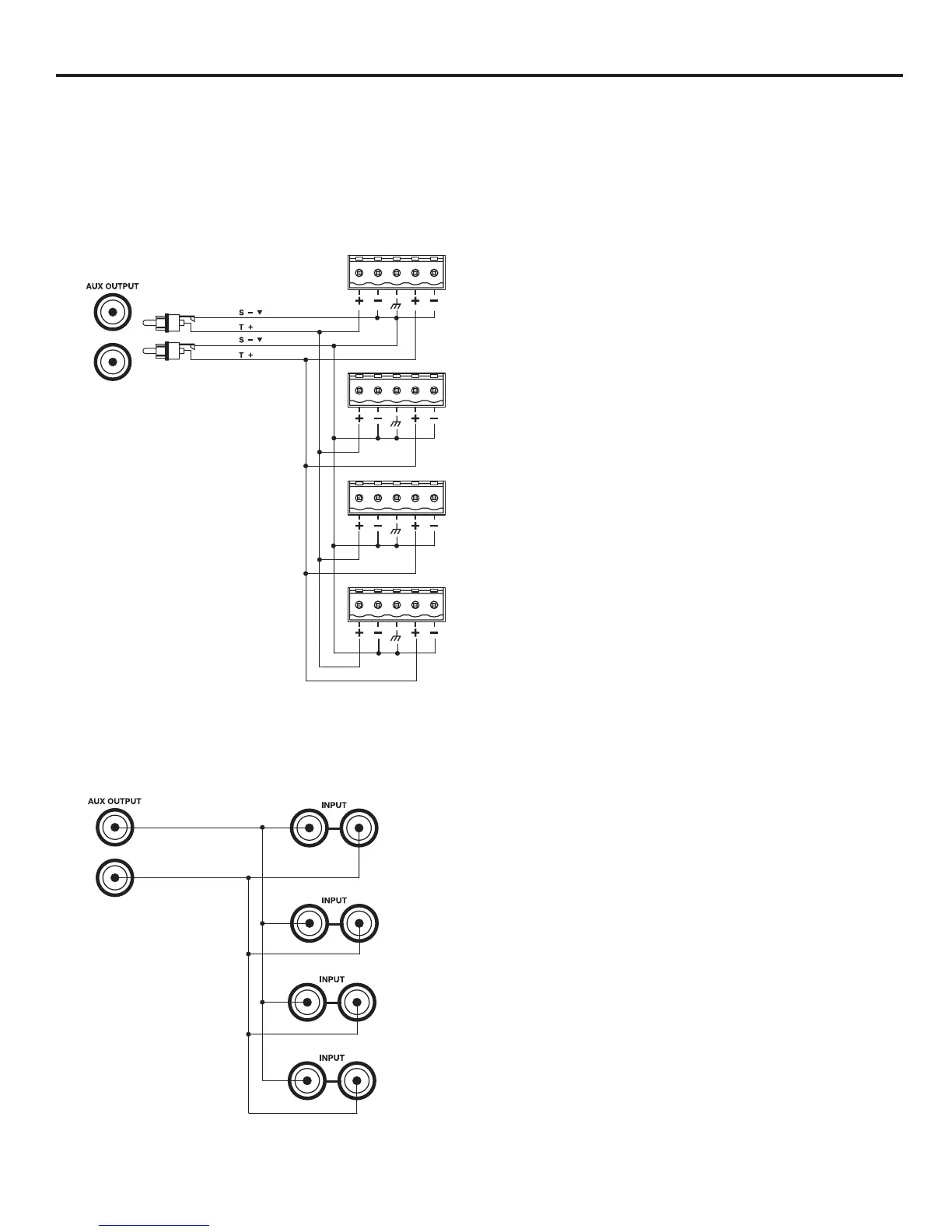

Using T/S RCA connectors:
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4
IZA 2120-LZ/HZ
AUX OUT
IZA 2120-LZ/HZ
balanced input
Using RCA male stackable connector cables:
IZA 2120-LZ/HZ
AUX OUT
IZA 2120-LZ/HZ
balanced input
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4
