Setting Up
AM antenna jack
FM antenna jack
Figure 13
The FM dipole antenna
Figure 14
The AM loop antenna
Connecting the antennas
The rear panel of your Lifestyle
®
music center provides connections for AM and FM antennas
(Figure 12). Unwind each antenna’s wires. Antennas provide better reception when their wires
are not bundled.
Note:
Outdoor antennas may be used with the music center antenna connections. To install
an outdoor antenna, consult a qualified installer. Follow all safety instructions.

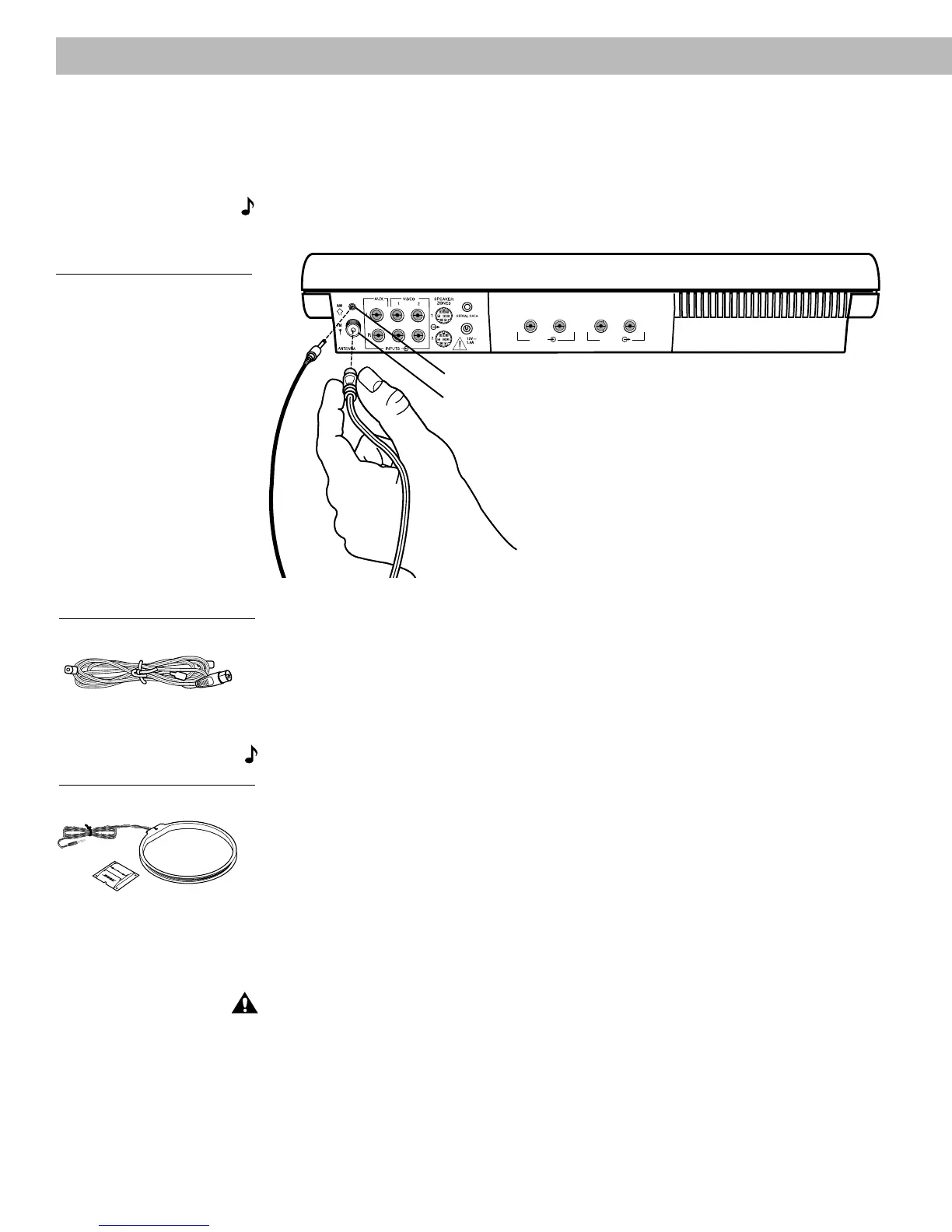

Figure 12
The antenna connections
FM antenna connections
1. Plug the antenna connector into the FM ANTENNA jack on the back of the Lifestyle
®
music
center.
2. Spread out the antenna arms. Experiment with both the placement and the angle of this
antenna to provide optimum FM reception.
AM antenna connections
Note:
To install the AM antenna on a wall, follow the instructions enclosed with the antenna.
1. Plug the AM antenna connector into the AM ANTENNA jack on the back of the Lifestyle
®
music center.
2. Stand the loop antenna on the base, following the instructions enclosed with the antenna.
3. Move the loop part of the antenna as far as possible but at least 20 inches (50 cm) from
the music center and at least 4 feet (1.2 m) from the Acoustimass
®
module. Experiment
with the orientation of the loop for optimum AM reception.
Connecting to a cable radio signal
To connect your system to the FM signal available from some cable TV companies, contact
your cable provider for assistance. The connection is made to the FM 75Ω EXTERNAL
antenna connector on the back of the system.
CAUTION:
Be certain that the installation includes a signal splitter so that only the FM band,
not the cable TV band, is transmitted to the system. It is necessary to use a splitter that filters
the signal to prevent any re-emissions of the TV spectrum through the system.
