7
Introduction
Other wall plates and cables
Technical specifications
Processing
Bose
®
Videostage
®
5 steering logic, Dolby
®
Digital decoding, DTS
®
decoding
Audio inputs
S/PDIF
Indicators
Amplifier status green and amber LEDs
Signal-to-noise ratio
94dB
Power rating
100-120V , 50/60Hz, 350W
Dimensions
14.40"H x 11.00"W x 4.25"D (36.6 cm x 28.0 cm x 10.8 cm)
Weight
9.4 lb (4.25 kg)
Limited warranty
1-year transferable limited warranty

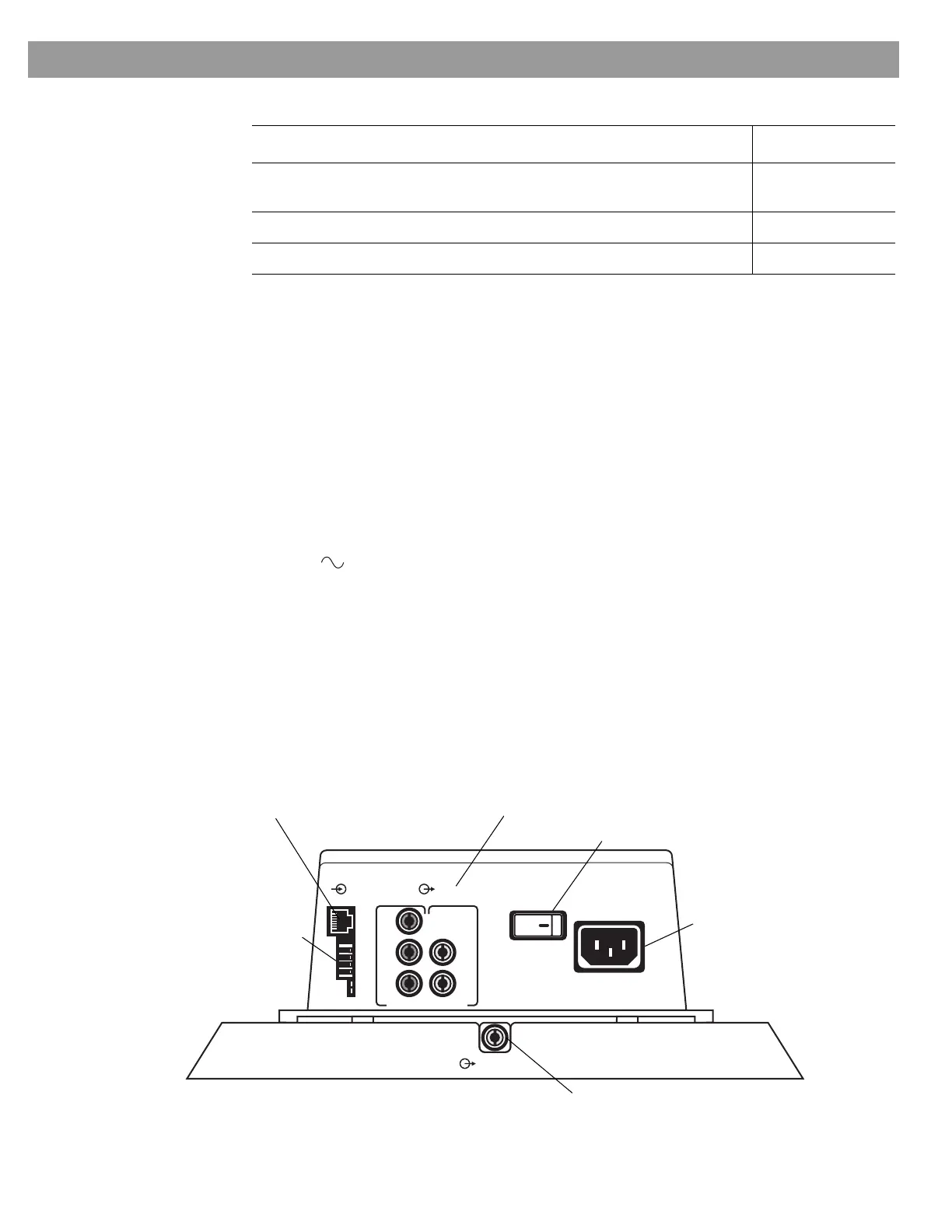

Connection panel
Item PC code
TA-2 Source/Destination Wall Plate (single mini DIN) PC 34247 (White)
PC 34248 (Ivory)
TA-2 Connection Cable (8-pin Terminal Block to 8-pin RJ45) PC 33946
TA-2 Speaker Connection Cable (14-pin term block to 6 male RCA) PC 33947
L
C
R
L
R
AUDIO
INPUT
OUTPUTS TO
CUBE SPEAKERS
FRONT SURROUND
POWER
OUTPUT TO
BASS SPEAKER
AC mains jack
TA-2 power on/off switch
Front and surround speaker jacks (RCA)
Audio input jack (RJ45)
Bass speaker jack (RCA)
Microswitches
DO NOT CHANGE
from factory settings
