37
PS18/28/48 Service Manual

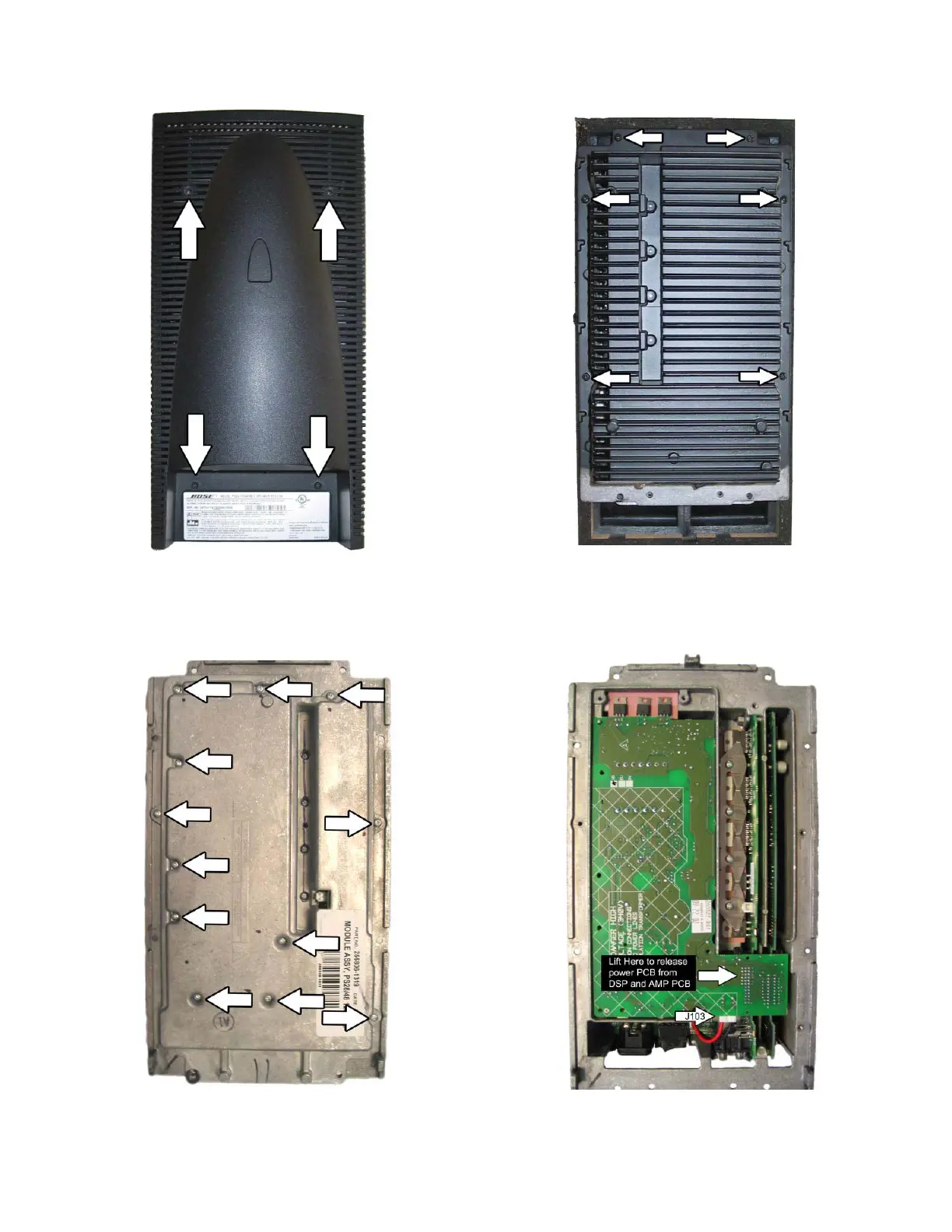

1. Rear Cover Removal
Remove four screws - pull off cover
2. Amp Module Removal
Remove six screws - pull off amp module -
unplug woofer harness
3. Amplifier Module Cover Removal
Remove 12 screws
4. Power PCB Removal
Disconnect J103, lift up PCB
Bass Module Disassembly Procedures
