6
PS18/28/48 Service Manual
Lifestyle
®
28 Home Theater System Packaging
1
6
7
9
10
12
13
2
3
4
5
8
11

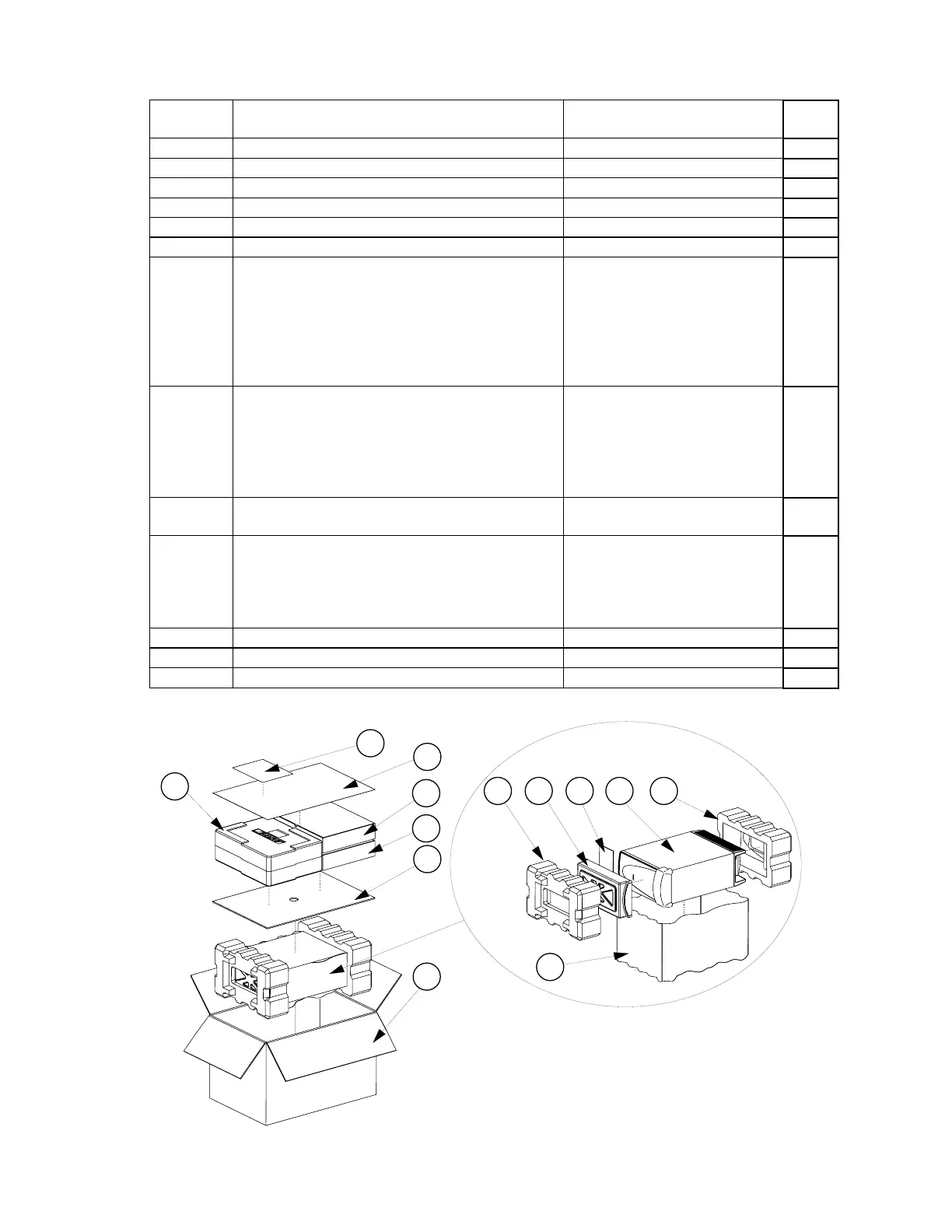

Figure 2. LS28 System Packaging Exploded View
Item
Number
Description Part Number Note
1 CARTON, RSC 258474-002
2 PACKING INSERT GRILLE 258465
3 PACKING END CAP EPS FRONT 258466
4 PACKING END CAP EPS REAR 258475
5 BAG POLY 196638
6 PACKING PAD 29.38X21.38 258469
7 AV28, US TUNER, RC1
AV28, EURO TUNER, RC4
AV28, JAP, IR REMOTE, RC2
266440-1019
266440-2049
266440-3029
1
8 BASS MODULE, BLACK, 120V
BASS MODULE, WHITE, 120V
BASS MODULE, BLACK, 220V
BASS MODULE, WHITE, 220V
BASS MODULE, BLACK, DUAL
BASS MODULE, WHITE, DUAL
269498-119 OR 269720-119
267498-129 OR 269720-129
269498-219 OR 269720-219
269498-229 OR 269720-229
269498-619 OR 269720-619
269498-629 OR 269720-629
1, 4
9 SAT ASSY, 5 PK, BLACK
SAT ASSY, 5 PK, WHITE
256815-113 OR -119
256815-123 OR -129
1
10 ESSENTIALS KIT, LS-35, 120V, (US)
ESSENTIALS KIT, LS-35, 220V, (EURO)
ESSENTIALS KIT, LS-35, 230V, (UK)
ESSENTIALS KIT, LS-35, 240V, (AUS)
ESSENTIALS KIT, LS-35, DUAL
266217-1
266217-2
266217-4
266217-5
266217-6
1
11 FOAM, SHT, ADHESIVE BACK 263426
12 GUIDE, QUICK SETUP 266254
13 COMMITMENT LETTER 251001
To Next Page
