INSTRUCTIONS
1
About Your Thermostat
User Manual 4
5 User Manual
1
2
3
5
14
15
13
10
4
12
11
6
7

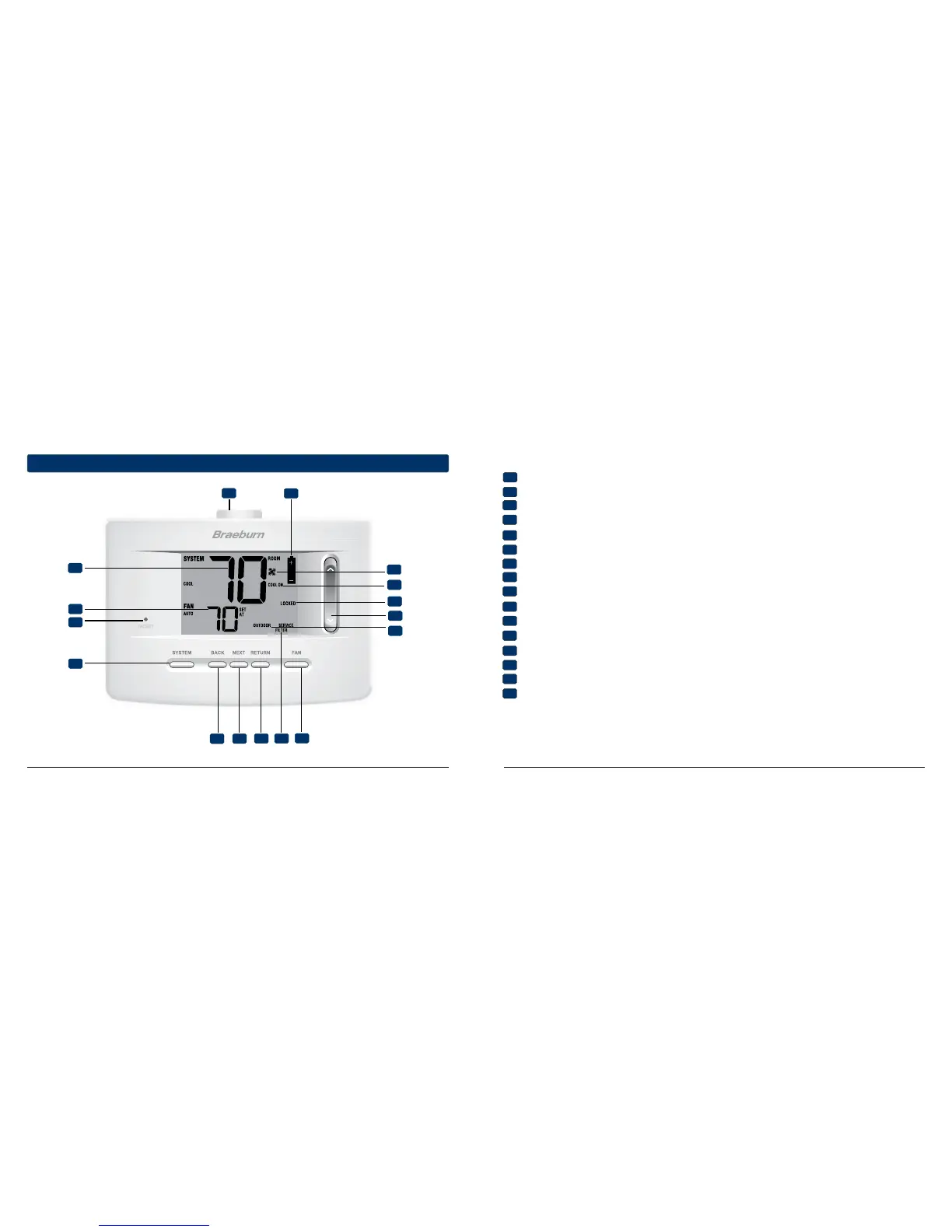

Thermostat and Display
Room Temperature ...................... Displays the current room temperature
Set Temperature .......................... Displays the current set point temperature
Reset Button ............................... Resets current time, program and user settings
SYSTEM Button ............................ Selects the system you want to control
BACK Button................................. Moves back in installer/user setup modes
NEXT Button ................................. Moves forward in installer/user setup modes
RETURN Button ............................ Returns to normal mode from installer/user setup modes
Service Indicators ...................... Displays various service/maintenance information
FAN Button ................................... Selects the system fan mode
Quick Reference Instructions ...... Stored in slot located at top of thermostat
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Fan Indicator ................................ Indicates when the system fan is running
System Status Indicator ............. Displays information about the status of the system
Lock Mode Indicator ................... Indicates if the thermostat is locked
SpeedBar
®
................................... Increases or decreases settings (time, temperature, etc.)
Outdoor Temperature Indicator....Displays along with the outdoor temperature reading (see note below)
Battery Compartment ................. Located in the back of thermostat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NOTE: If a Braeburn
®
outdoor sensor was connected you can view the outdoor temperature by pressing the
BACK and NEXT buttons at the same time.
8
9
16
