Specified (recommended) Available Braun
Lubricant Type Lubricant Amount Part No.
LO - Light Oil
SG - Synthetic Grease
Synthetic Grease Mobiltemp SHC32 12.5 oz.
(Multipurpose) Tube
Light Penetrating Oil LPS2, General Purpose 11 oz.
(30 weight or equivalent) Penetrating Oil Aerosol Can
Stainless Stick Door-Ease 1.68 oz.
Style (tube) Stick (tube)
DE - Door-Ease
15807
15806
28598
See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
Maintenance and Lubrication

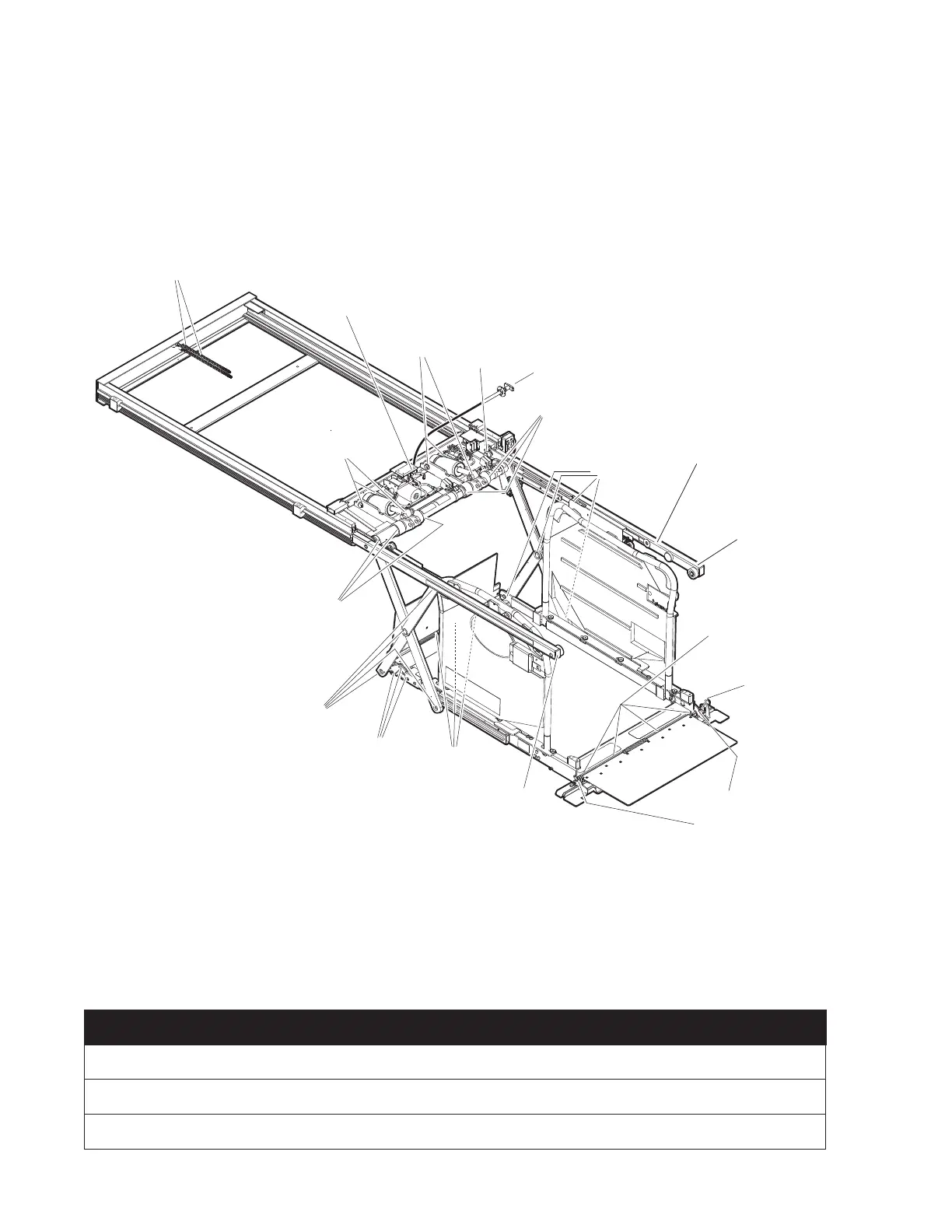

Lubrication Diagram
Lifting Arm
Pivot Points
LO
Platform Cable-activated
Manual Release System
Inner Roll
Stop Catch
LO
Hydraulic
Cylinder
Pivot
Points
LO
Eccentric
Shaft and
Carriage
Rollers
(bearings)
LO
Eccentric
Shaft and
Carriage
Rollers
(bearings)
LO
Inner Roll Stop
Linkage
Pivot Points
LO
Lifting Arm
Pivot Points
LO
Torque Tube
Pivot Points
LO
Inner Roll Stop
Hinge
Pivot Points
and
Eccentric
Rolling
Horizontial
Carriage Tube
Slot Area
DE
Drive Chain and Rollers
LO
Drive Chain
Release Latch
SG
Eccentric
Shaft
Rollers
(bearings)
LO
Torque Tube
Pivot Points
LO
Hydraulic
Cylinder
Pivot
Points
LO
Outer
Barrier (tall)
Pivot Points
LO
Outer Barrier
Detent Pin
LO
Outer
Barrier (short)
and
Lower Closure
Pivot Points
LO
