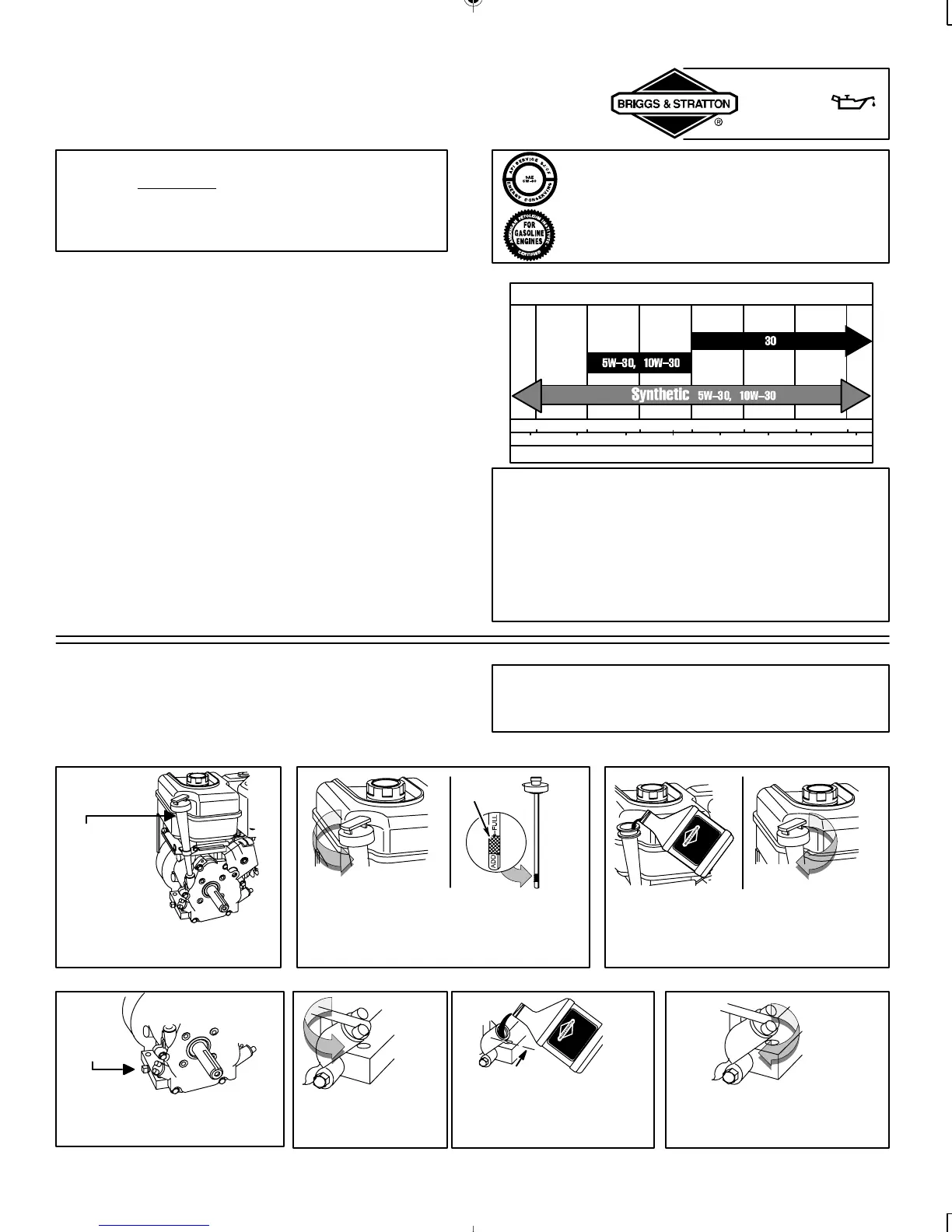

7
OIL
275092
CAUTION: This engine is shipped from Briggs &
Stratton without oil. Check oil level before starting
engine. If you start the engine without oil, the
engine will be damaged beyond repair and will not
be covered under warranty.
Note: If this engine is equipped with gear reduction, gear
reduction case must be filled with oil prior to operating en-
gine. See gear reduction oil filling instructions on page 12.
OIL CAPACITY
Model 110000 and 120000 series engines hold approxi-
mately 5/8 quart (20 ounces; 0.6 liter).
Model series 200000 and 210000 engines hold approxi-
mately 7/8 quart (28 ounces; 0.8 liter).
TYPE OF OIL TO USE
• Use a high quality detergent oil classified “For Service
SF, SG, SH, SJ” or higher, such as Briggs & Stratton
30W, Part Number 100005 (20 oz) or 100028 (48 oz).
• Do not use special additives.
• Choose a viscosity according to the table opposite.
Note: Synthetic oil meeting ILSAC GF-2, API
certification mark and API service symbol
(shown at left) with “SJ/CF ENERGY CON-
SERVING” or higher, is an acceptable oil at all
temperatures. Use of synthetic oil does not
alter required oil change intervals.
°F
-20 0 20 40 60 80 100
°C
-30 -20 -10 0 10 20 30 40
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
*
**
32
* CAUTION: Air cooled engines run hotter than automotive
engines. The use of non-synthetic multi-viscosity oils
(5W-30, 10W-30, etc.) in temperatures above 40° F (4° C)
will result in higher than normal oil consumption. When using
a multi-viscosity oil, check oil level more frequently.
** CAUTION: SAE 30 oil, if used below 40° F (4°C), will result
in hard starting and possible engine bore damage due to
inadequate lubrication.
SAE Viscosity Grades
CHECKING AND ADDING OIL
• Check oil level before starting the engine.
• Check level daily, or after every eight (8) hours.
• Keep oil level at FULL.
• Do not overfill.
CAUTION: OIL GARD (if equipped) on this
engine model will not shut down engine if low on oil.
See page 8.
[1] Place engine level and
clean around oil fill area.
[2] Remove dipstick and wipe with clean
cloth. Replace and tighten dipstick.
Remove and check oil level.
High
Oil Fill
(if equipped)
FULL
[3] Pour oil slowly. Fill to FULL line on
dipstick – recheck.
[4] Replace and tighten dipstick.
[1] Place engine level and
clean around oil fill area.
[2] Remove oil fill
cap or dipstick.
Low
Oil Fill
OIL LEVEL
[3] Pour oil slowly. Fill to
point of overflowing.
[4] Replace and tighten
oil fill cap.
To Next Page
