12
How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun, nozzle extension and ProjectPro™
nozzles.
NOTE: The extra hole in the tray is for storing a utility
brush.The extra clip in the tray is for storing a turbo
nozzle.The brush and turbo nozzle are NOT included with
your pressure washer.You can buy these items as optional
accessories.
1. Place nozzle extension through hole on accessory tray,
as shown in Figure 14.
2. Place spray gun through hole on accessory tray on
right side of unit (Figure 14).
3. Insert multi–colored ProjectPro™ nozzles in spaces
provided in accessory tray (Figure 14).
4. Hang high pressure hose on hook attached to handle, as
shown in Figure 14.
How to Use ProjectPro™ Nozzle
System
The quick–connect on the nozzle extension allows you to
switch between four different ProjectPro™ system nozzles.
The ProjectPro™ nozzles vary the pressure and spray
pattern as shown (Figure 15).
Follow these instructions to change ProjectPro™
nozzles:
1. Engage trigger lock on spray gun.
2. Pull back collar on quick–connect and pull current
ProjectPro™ nozzles off. Store ProjectPro™ nozzles in
holder provided on the accessory tray.
Section 4: Operation
• NEVER exchange ProjectPro™ nozzles without engaging the
trigger lock on the spray gun.
• DO NOT twist ProjectPro™ nozzles while spraying.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
Delicate
40° Yellow
2550 PSI
2.8 GPM
General
15° Orange
2800 PSI
2.7 GPM
Max
0° Red
3100 PSI
2.5 GPM
Black
Use to apply
detergent

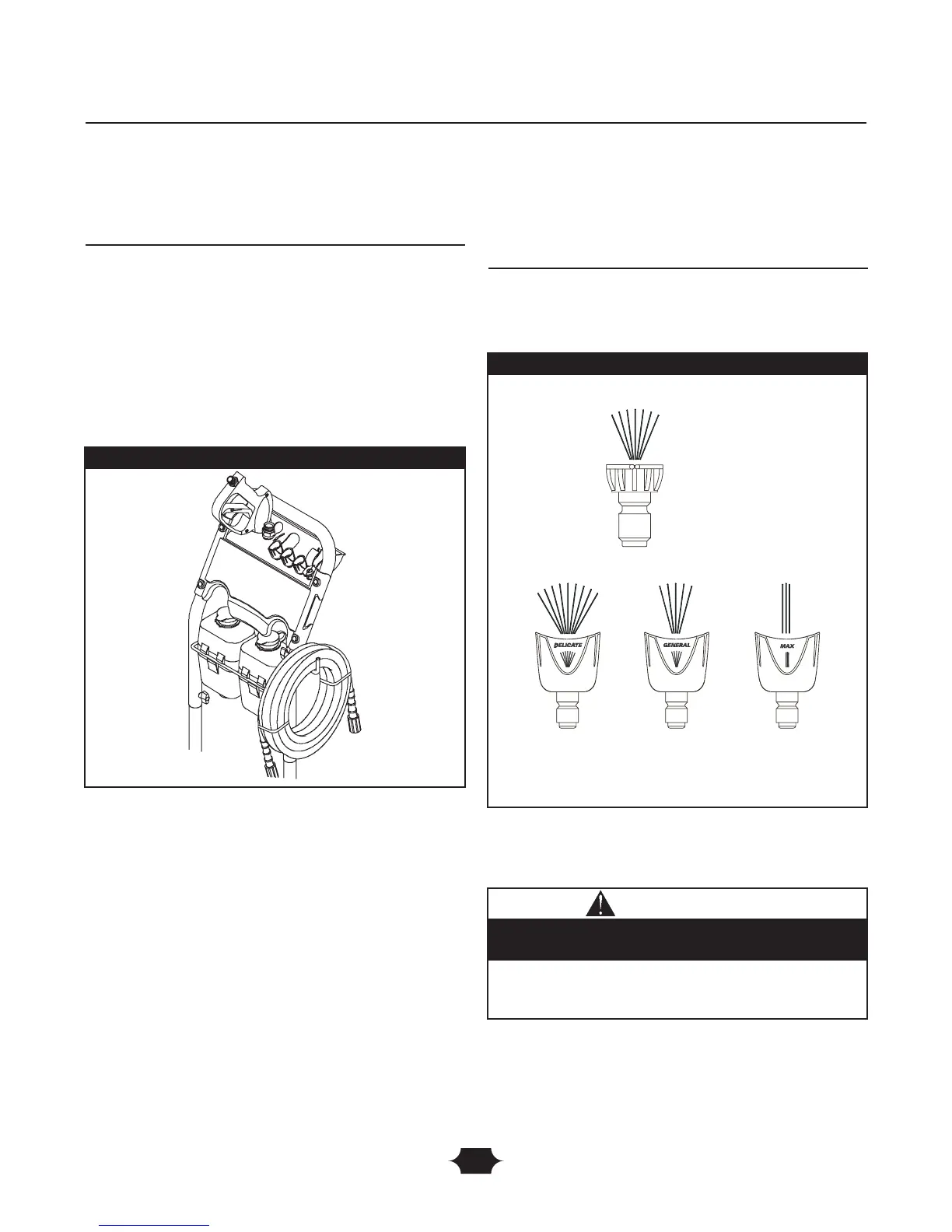

Figure 15 — Nozzle Spray Patterns
Low Pressure
High Pressure
Figure 14 — Typical Accessory Tray
