8

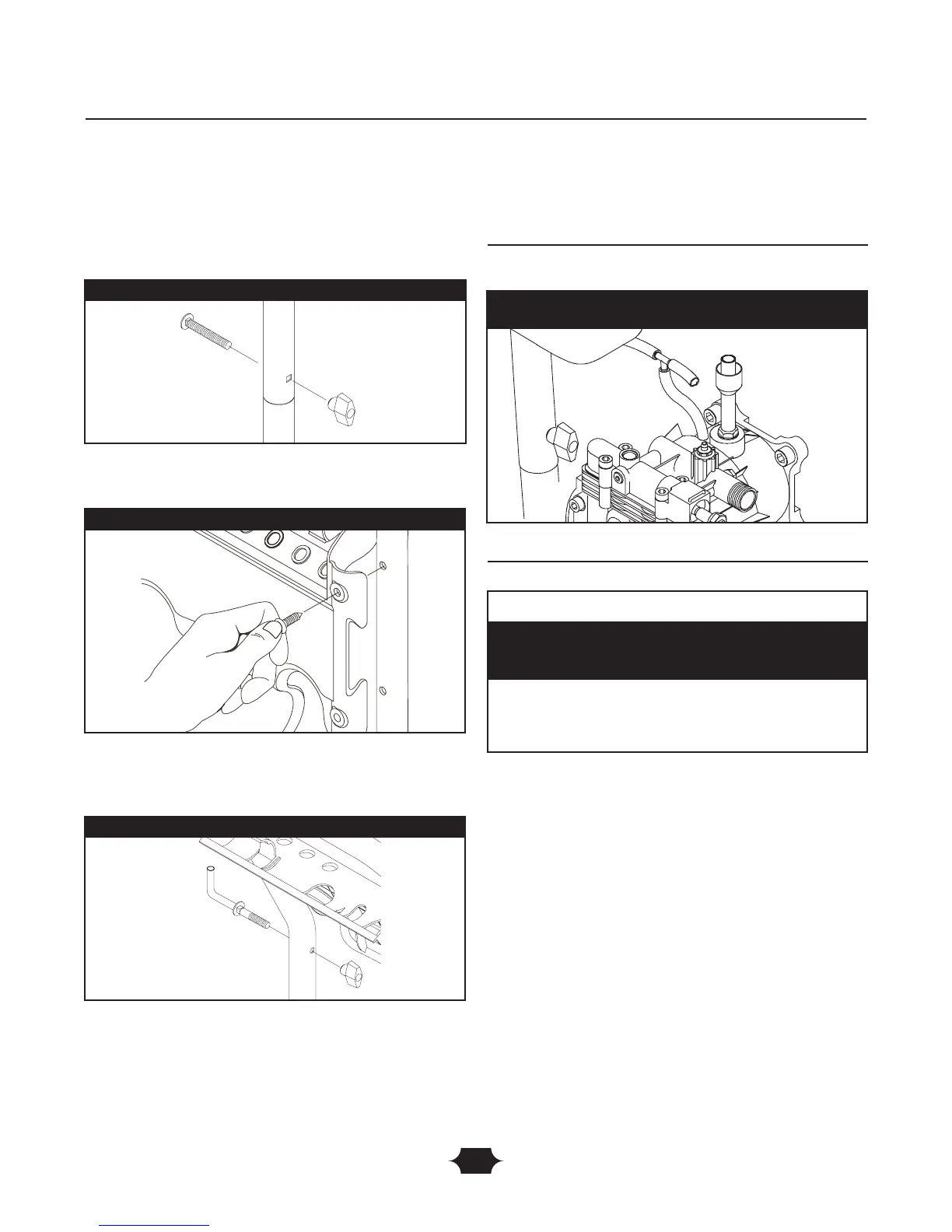

2. Insert carriage bolts through holes from inside of unit
and attach plastic knob from outside of unit (Figure 2).
Tighten by hand.
3. Place accessory tray over holes on handle (viewing
from front of unit). Push the tree clips into the holes
until they sit flat against the accessory tray (Figure 3).
4. Insert “L” bolt through hole just below billboard on left
side of handle (viewing from rear of unit). Hold hook in
place and attach plastic knob from inside of unit
(Figure 4).Tighten by hand.
5. Insert multi–colored ProjectPro™ nozzles and other
supplied accessories in spaces provided in accessory
tray. See “How to Use Accessory Tray”.
Attach Chemical Hose to Pump
Attach chemical hose to chemical injection fitting on pump
(Figure 5).
Add Engine Oil and Fuel
• Place pressure washer on a level surface.
• Refer to engine operator’s manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine operator’s manual for recommendations.
Hose Hook
Figure 4 — Attach “L” Bolt to Handle
Figure 5 — Attach Chemical Hose to Chemical Injection
Fitting on Pump
Figure 2 — Secure Handle
CAUTION
• Refer to engine operator’s manual for oil and fuel fill
information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
Figure 3 — Attach Accessory Tray to Handle
Section 3: Assembly
