Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.

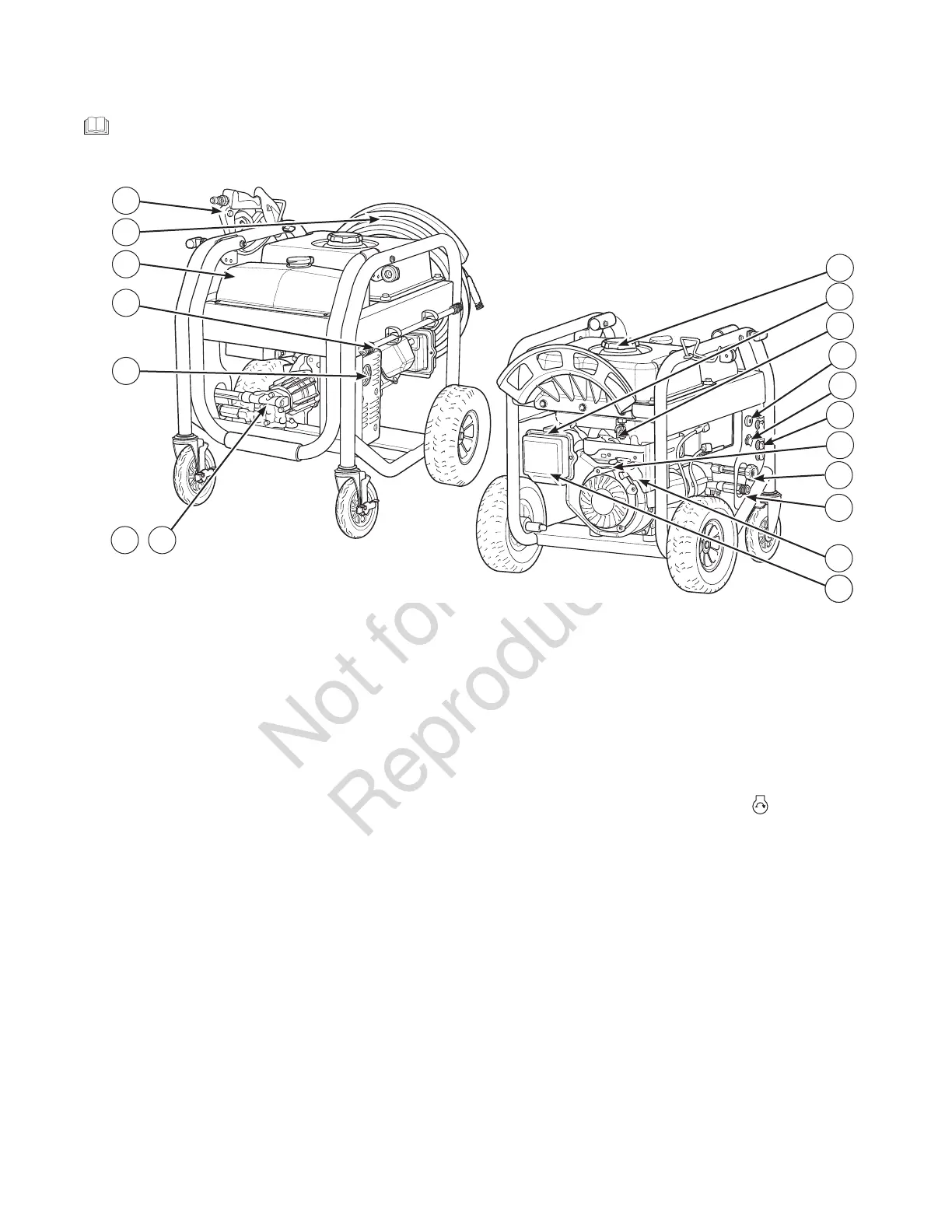

Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
A - Spray Gun — Controls the application of water
onto cleaning surface with trigger device. Includes
trigger lock.
B - High Pressure Hose — Connect one end to water
pump and the other end to spray gun.
C - Cleaning Tank – Use to hold up to one gallon
(3.8 l) of pressure washer safe detergent.
D - Nozzle Extension with Quick Connect — Allows
you to switch between four dierent spray tips.
E - Spark Arrester Muer — Exhaust muer lowers
engine noise and is equipped with a spark arrester
screen.
F - Pump — Develops high pressure.
G - Automatic Cool Down System — Cycles water
through pump when water reaches 125°-155°F.
Warm water will discharge from pump onto ground.
This system prevents internal pump damage.
H - Air Filter — Protects engine by ltering dust and
debris out of intake air.
J - Recoil Starter — Used for starting the engine
manually.
K - High Pressure Outlet — Connection for high
pressure hose.
L - Water Inlet — Connection for garden hose.
M - Throttle Lever — Sets engine in starting mode
for electric or manual starting and stops a running
engine.
N - Quick Connect Spray Tips — Detergent, 0°, 25°,
15°, and 40°: for various high pressure cleaning
applications.
P - Battery Float Charger Jack — Use battery oat
charger jack to keep the starting battery charged
and ready for use.
R - Start Switch — Turn key to start (
) position to
start the engine.
S - Fuel Valve — Used to turn fuel supply on and o
to engine.
T - Choke Lever — Prepares a cold engine for starting.
U - Fuel Tank — Fill tank with regular unleaded fuel.
Always leave room for fuel expansion.
Items Not Shown:
Identication Label — Provides model and serial
number of pressure washer. Please have these readily
available if calling for assistance.
Oil Drain — Drain engine oil here.
Oil Fill — Check and add engine oil here.
A
D
B
J
L
K
LH
E
C
N
G
,
F
M
U
T
S
P
R
