6 azur integrated amplifier
AC power
socket
Once you have completed all connections to the amplifier, plug the AC
Power Cable into an appropriate mains socket. The amplifier is now
ready for use.
Loudspeaker
connections

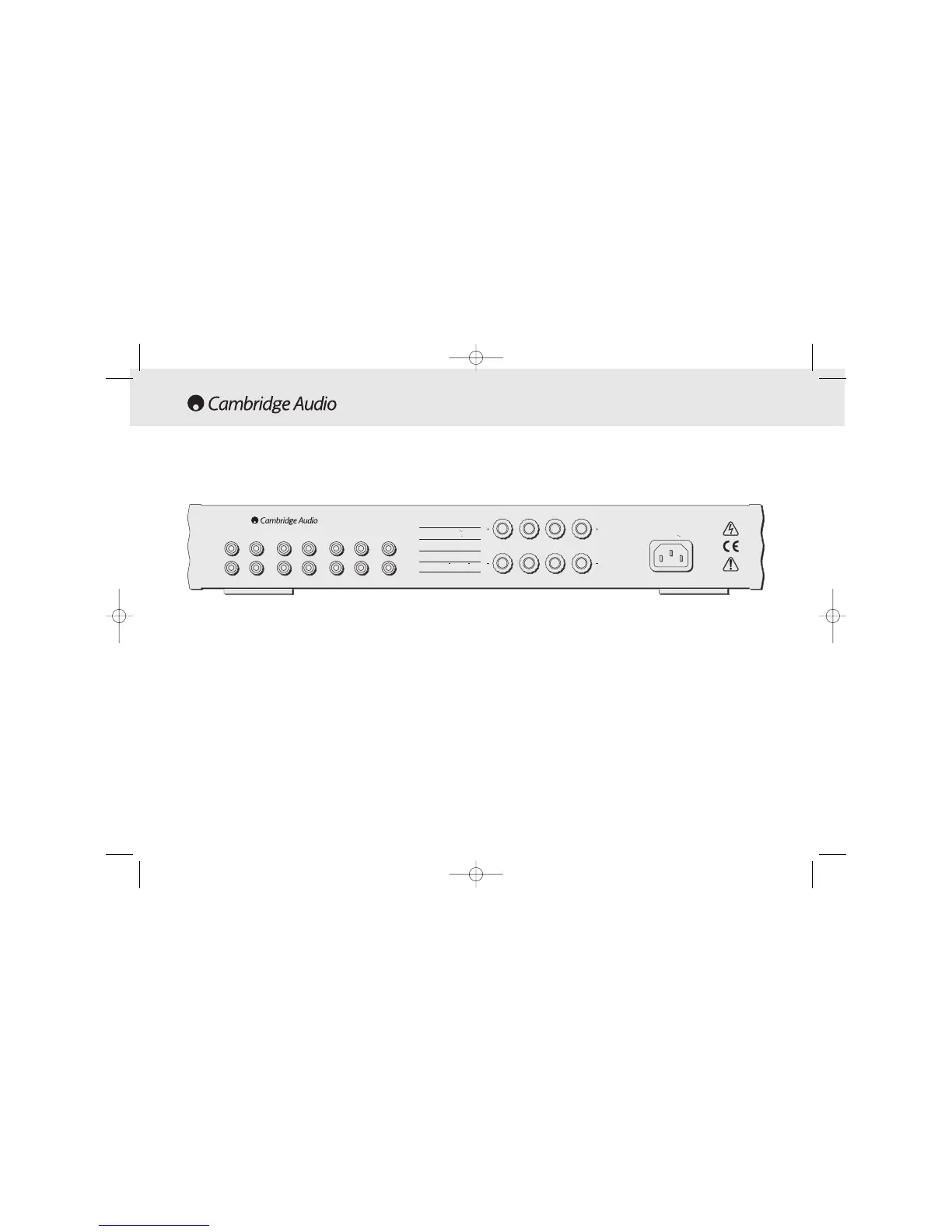

The 340A has two sets of Loudspeaker terminals on the rear panel,
speakers A and B. Speakers A are the main speaker terminals, speakers
B are the secondary switchable speaker terminals. Connect the wires
from your left channel loudspeaker to the LEFT + & - terminals, and
likewise the wires from the right channel loudspeaker to the RIGHT + &
- terminals. In each case the red terminal is the positive output, and the
black terminal is the negative input. Care should be taken to ensure no
stray strands of wire are shorting speaker outputs together.
Note:
This
amplifier
has
been
designed
for
use
with
loudspeakers
that
have
a
nominal
impedance
of
between
4
and
8
ohms.
Please
ensure
that
the
speaker
terminals
have
been
tigh
tened
adequately
to
provide
a
good
electrical
connection.
It
is
possible
for
the
sound
quality
to
be
affected
if
the
screw
terminals
are
loose.
Tape
mon
These sockets can be connected to a tape deck or to the analog sockets
on a MiniDisc or CD recorder. Connect an interconnect cable from the
recorder's Line Out sockets to the amplifier's Tape Monitor sockets. This
monitor doubles up as the standard tape/recording medium input.
Note:
When
connecting
a
source
component
that
has
both
an
input
and
output
i.e.
a
tape
recorder,
the
output
of
should
always
be
connected
to
the
Tape
Mon
input.
This
will
eliminate
howlround
if
the
wrong
input
channel
is
selected.
