CAME PLX V User Manual

Page 3 - Manual FA 01622-E N - 08/2022 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

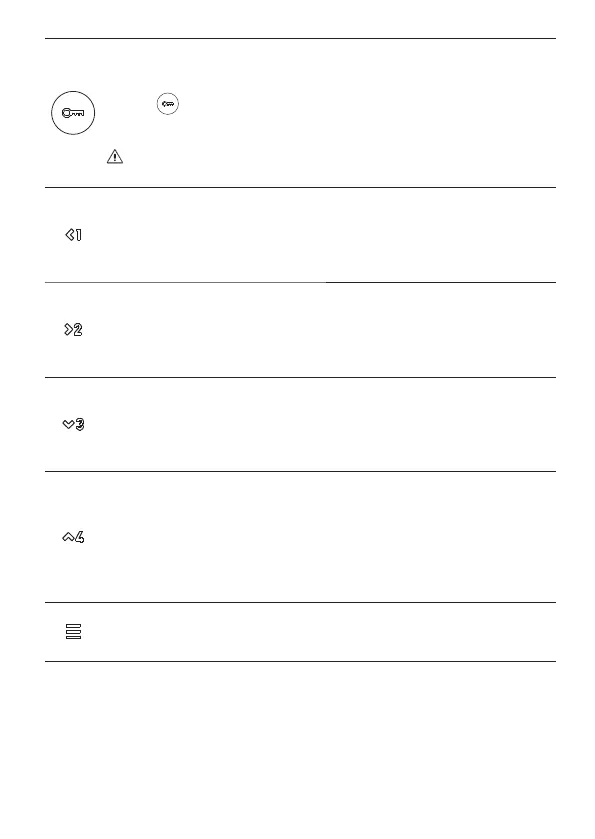

This button sends a DOOR RELEASE or GATE RELEASE command. To send a GATE
RELEASE command to the porter (where the function is enabled), press and hold the
button for more than 3 seconds.
LED key
Flashing: calling
On: gate/door open, if correctly confi gured.
The door status function is active by default. The GATE RELEASE function must
be correctly confi gured.
The function of this button depends on the confi guration set during installation.
If the button is confi gured as an INTERCOM, it will serve as INTERCOM 1.
If the SECOND FUNCTION is also activated using button 4, it will serve as
INTERCOM 4.
If the button is confi gured as an AUX, it will serve as AUX 1.
The function of this button depends on the confi guration set during installation.
If the button is confi gured as an INTERCOM, it will serve as INTERCOM 2.
If the SECOND FUNCTION is also activated using button 4, it will serve as
INTERCOM 5.
If the button is confi gured as an AUX, it will serve as AUX 3.
The function of this button depends on the confi guration set during installation.
If the button is confi gured as an INTERCOM, it will serve as INTERCOM 3.
If the SECOND FUNCTION is also activated using button 4, it will serve as
INTERCOM 6.
If the button is confi gured as an AUX, it will serve as AUX 4.
The function of this button depends on the confi guration set during installation.
If the button is confi gured as an INTERCOM, it will temporarily enable the
SECOND FUNCTION, allowing INTERCOM calls 4 to 6 to be activated.
☞ When the second function is active, the white LEDs on the buttons 1,2,3,4
will fl ash. The function remains active for approximately 10 seconds and can be
disabled by pressing the button again.
If the button is confi gured as an AUX, it will serve as AUX 5.
Press this button to open the menu for setting the display parameters with the
video active.
All the LEDs for the buttons above are on.
