Power supply: 230V / 50÷60 Hz.
Maximum power allowed: 400W
Absorption at rest: 25W
Maximum power for 24V accessories: 20W
Maximum power for 230V accessories: 200W
Insulation type:
Material case: ABS
#
#
4.2 Technical information

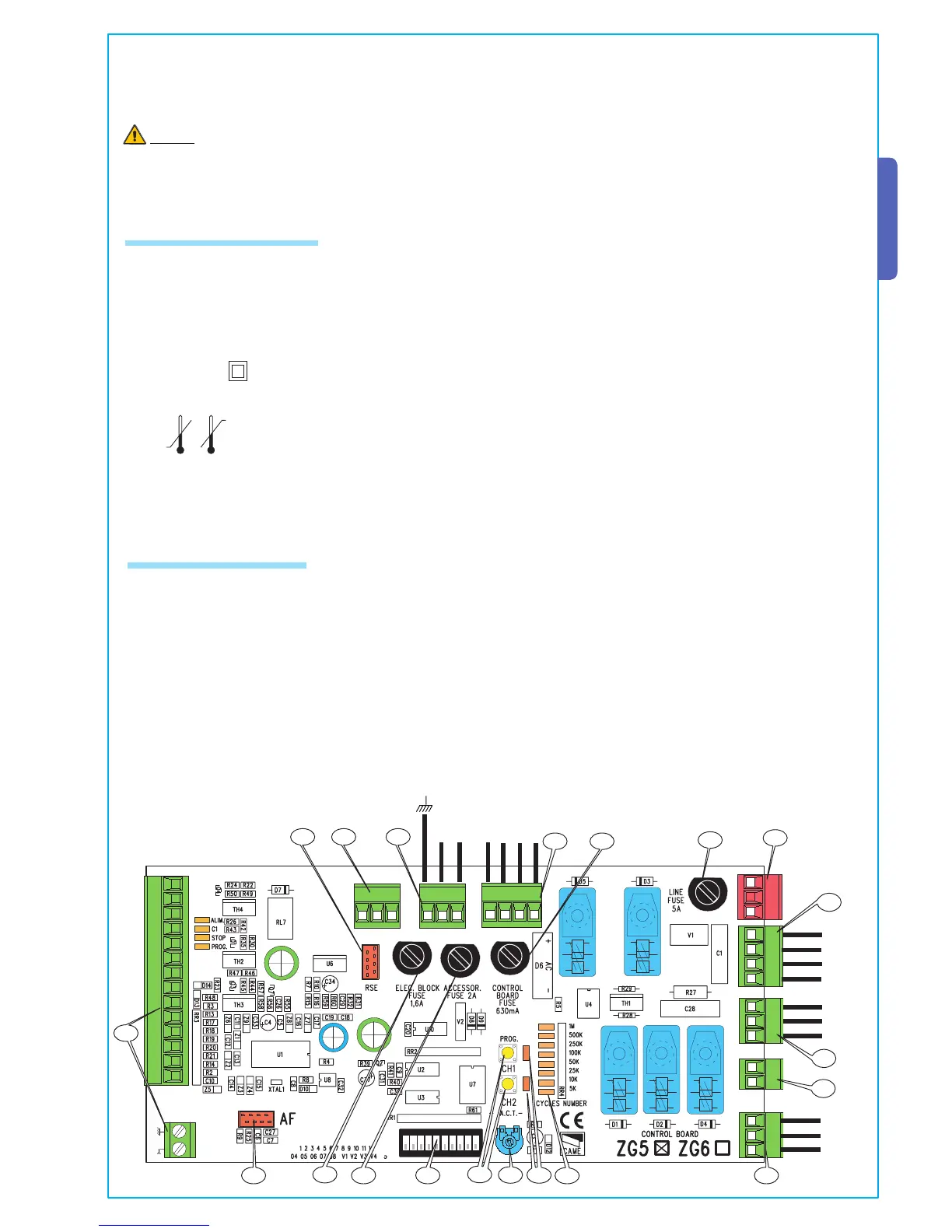

4.3 Main components
1 - 5 A mains fuse
2 - 630 mA fuse control assembly
3 - 2 A accessories fuse
4 - 1.6 A electric lock fuse
5 - Supply-connecting terminal board
6 - Transformer-connecting terminal board
7 - Electric lock-connecting terminal board
8 - End-stop assembly-connecting terminal board
9 - Combined barriers connecting terminal board
10 - Encoder-connecting terminal board
Optional accessories:
- fl ashing dome signals the bar in motion;
- lighted cord signals the bar closed or in motion; it turns off only if the bar is at an end stop and opens.
- bar open light marks the position of opening of the bar; it turns off after the closing operation.
Caution: Switch off the mains prior to any inspection or maintenance work on the equipment.
11 - Connecting terminal boards
12 - radiofrequency board coupling (see table page 9)
13 - RSE serial board coupling (optional for connection of
combined and/or interlock barriers)
14 - ACT Trimmer: automatic closure time adjustment
15 - “function selection” dipswitch
16 - Code saving buttons
17 - radio code / automatic closing fl ashing LED indicator
18 - manoeuvre counter
19 - Motor terminal board
