8
All the data and information contained herein is considered subject to change at any time and at our discretion
ENGLISH
G2081
G2081I
G4041
G4041I
/.
/.
ON
OFF
A.C.T Trimmer = min. automatic closing
time 1 sec, max. 120 sec.

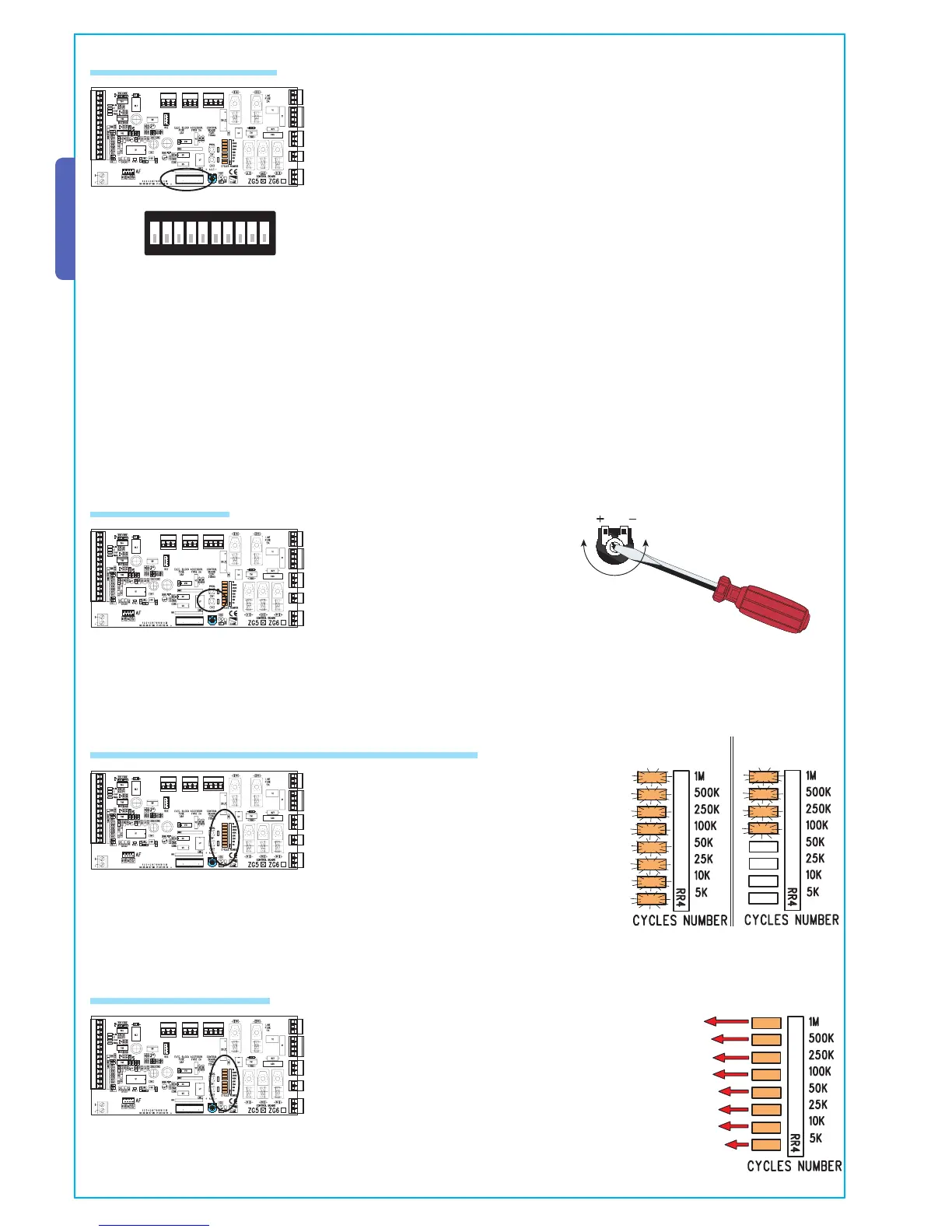

5.10 Adjustments
5.9 Function selections
1 ON Automatic closing function activated; (1 OFF-deactivated);
2 ON “Open” function with activated remote control (HF board inserted);
2 OFF “Open-close-reverse” function with pushbutton (2-7) and activated remote con-
trol (HF board inserted) ;
3 ON “Maintained Action” function (remote control function disabled) activated; (3 OFF
deactivated);
4 ON Activated pre-fl ashing during opening and closing,, with device connected on ter-
minals 10- E7 (4 OFF deactivated);
5 ON Obstacle detection. With the motor off (bar closed, open or after a total-stop com-
mand), movement is blocked if safety devices (e.g. photoelectric cells) detect an
obstacle;
6 OFF Total stop function activated, connect pushbutton to 1-2 (if not set the dipswitch
to ON);
7 OFF Reopening function during closure activated, connect the safety devices to termi-
nals 2-C1 (if not used set the dipswitch to ON);
8 ON Safety test function to check photoelectric cell effi ciency (page.7) activated; (8
OFF deactivated).
9 OFF Encoder activated for obstacle detection (9 ON deactivated);
10 Not used
5.12 Operation counter
/.
Counts the number of operations
displayed with the 8 LED to zero
out the count, position the dip 1 to
OFF (if selected to ON) and the dip
3 to ON, press the CH1 and wait
for all the LED to turn off. After
zeroing out, return the dip 1 to ON
(if selected) and dip 3 to OFF.
Led n°1 = 5000 manoeuvres
Led n°2 = 10000 manoeuvres
Led n°3 = 25000 manoeuvres
Led n°4 = 50000 manoeuvres
Led n°5 = 100000 manoeuvres
Led n°6 = 250000 manoeuvres
Led n°7 = 500000 manoeuvres
Led n°8 = 1000000 manoeuvres
!#4
5.11 Management of the manoeuvre pick-up function
/.
To manage the manoeuvre pick-up function,
position the dip 1 and dip 3 to ON; all 8 LED of the
manoeuvre counter will be on (default memorization
for G2081 and G2081I); to select management of
manoeuvre pick-up function for G4041 e G4041I
barriers, position the dip 1 and 3 to ON and
press the CH1 button. The fi rst 4 LEDs will be on.
Reposition the dip 3 to OFF and dip 1 can be left on
the ON position, if automatic closure is desired.
/.
