18
ANNUNCIATORS - MODEL 210
OVER/PWC3
The OVER annunciator is used to signal that the displayed weight is equal to or greater than the
minimum value of over weight used in the Checkweigher feature. Note that this annunciator is
active only when the Checkweigher feature has been enabled.
The PWC3 annunciator is turned on to indicate that the displayed weight is equal to or greater than
the weight value stored as preset number 3. Note that this annunciator is active only when the
Preset Weight Comparator feature has been enabled.
T
The
T
(tons) annunciator is located to the right of the weight display and is turned on to show
that the displayed weight units is tons.
g
The
g
(gram)
annunciator is located to the right of the weight display and is used to indicate that
the displayed units of weight measurement is grams.
lb
The
lb
(pound) annunciator is located to the left of the weight display and is turned on to show
that the displayed weight units is pounds.
oz
The
oz
(ounce) annunciator is located to the right of the weight display and is turned on to show
that the displayed weight units is ounces.
kg
The
kg
(kilograms) annunciator is located to the left of the weight display and is used to indicate
that the displayed units of weight measurement is kilograms.
t
The
t
(tonnes, metric tons)
annunciator is located to the right of the weight display and is used to
indicate that the displayed units of weight measurement is tonnes (metric tons).
SETUP AND CALIBRATION
Your 200 Series indicator has been
thoroughly tested and calibrated before
being shipped to you. If you received the
indicator attached to a scale, calibration is
not necessary. If the indicator is being
connected to a scale for the first time or
recalibration is necessary for other reasons,
proceed as indicated.

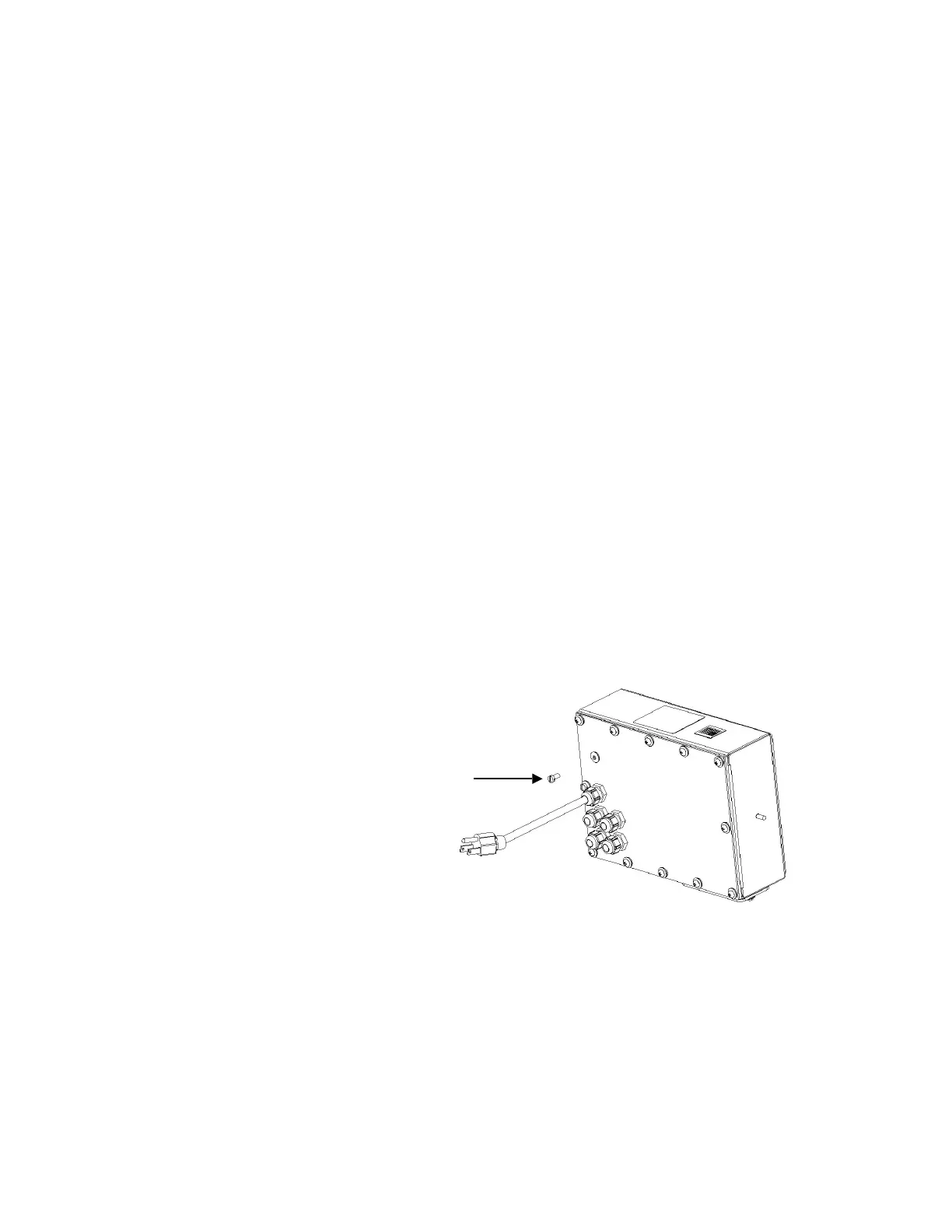

The calibration switch is located on the
enclosure rear panel. You may gain access
to this switch simply by removing the
calibration switch access screw on the rear
panel. Refer to Figure No. 11.
Figure No. 11
MODELS 200 and 205
During the setup and calibration process it will be necessary to enter operational parameters via
the 200/205 keypad. Pressing the TARE/
ENTER
key (performs the same function as the ENTER
key on the 210) will cause the data entered or displayed to be retained and the 200/205 to
advance to the next prompt. The functions of the numeric keys are replaced by using the
UNITS/
LEFT ARROW
and the ASTERISK/
UP ARROW
keys. The cursor location is identified by
the blinking character and can be advanced to the left to the next position by pressing the
UNITS/
LEFT ARROW
key. Pressing the
ASTERISK/
UP ARROW
key will change the blinking
character to the next value. Continue to press this key to "toggle" between the different
available values for the setup parameter. Pressing the ASTERISK key when a setup parameter
(not a parameter value) is displayed, will "backup" to the previous prompt.
Access
Screw
