14

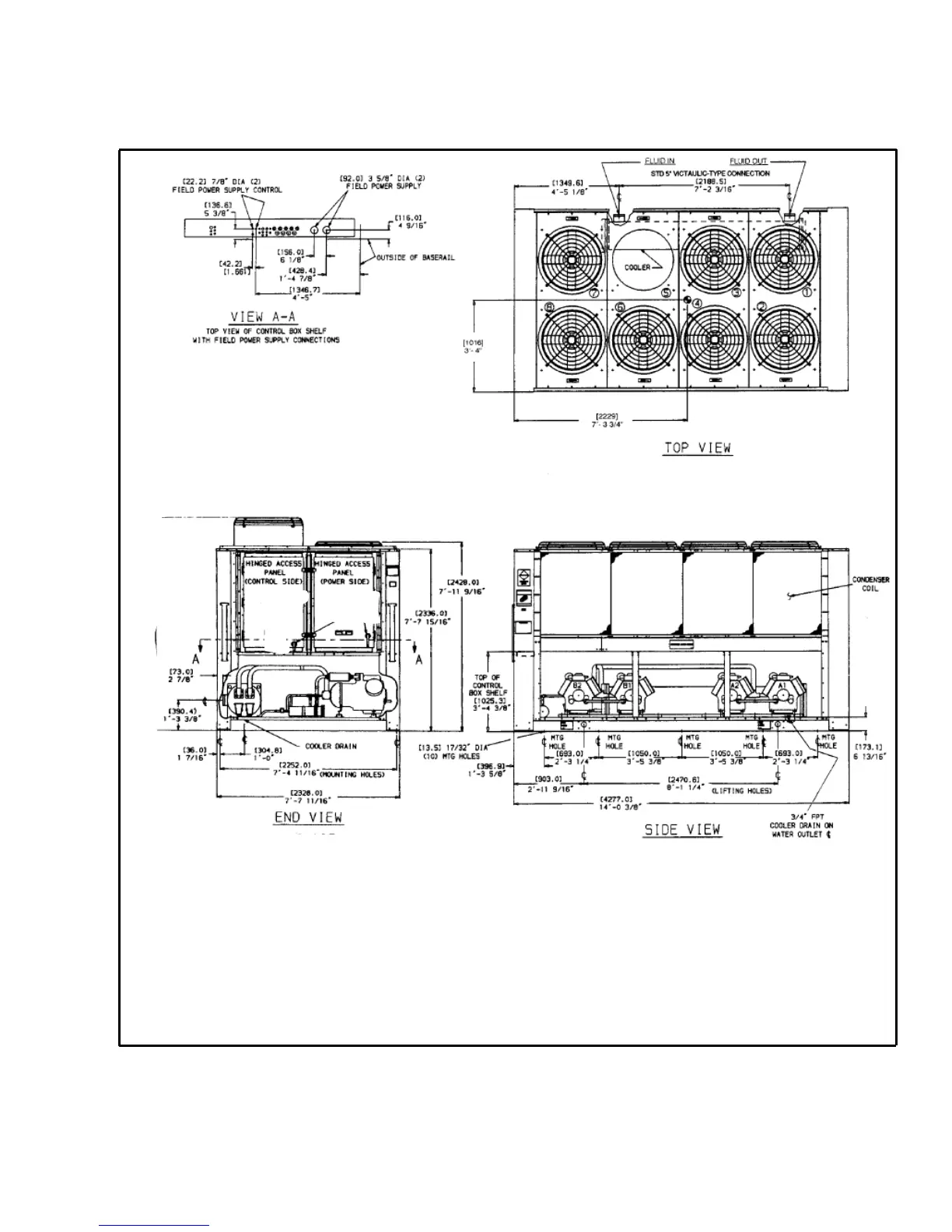

Base unit dimensions — 30GTN,GTR100,110
NOTES:
1. Unit must have clearances for airflow as follows:
TOP – Do not restrict in any way.
ENDS – [1524] 5 ft
SIDES – [1829] 6 ft
2. Mounting holes may be used to mount unit to concrete pad. They are not
recommended for spring isolator location.
3. If spring isolators are used, a perimeter support channel between the unit
and isolators is recommended.
4. Dimensions in [ ] are millimeters.
