Carrier 38QHC009D8S Series User Manual

1. READ BEFORE OPERATING
06
05
Do not climb or place objects on the unit. Do not block air inlets or outlets. Poor
performance, increased running costs
and reduced product life will result.
Disconnect BEFORE cleaning or
servicing.
Regularly inspect air filters and clean
them if required.
Unplug the unit when unused for long
periods
The product is intended for human
comfort ONLY
When cleaning, use water sparingly to
prevent electrical shock.
Never use strong detergents, solvents or
abrasive polish on the product.
CAUTION

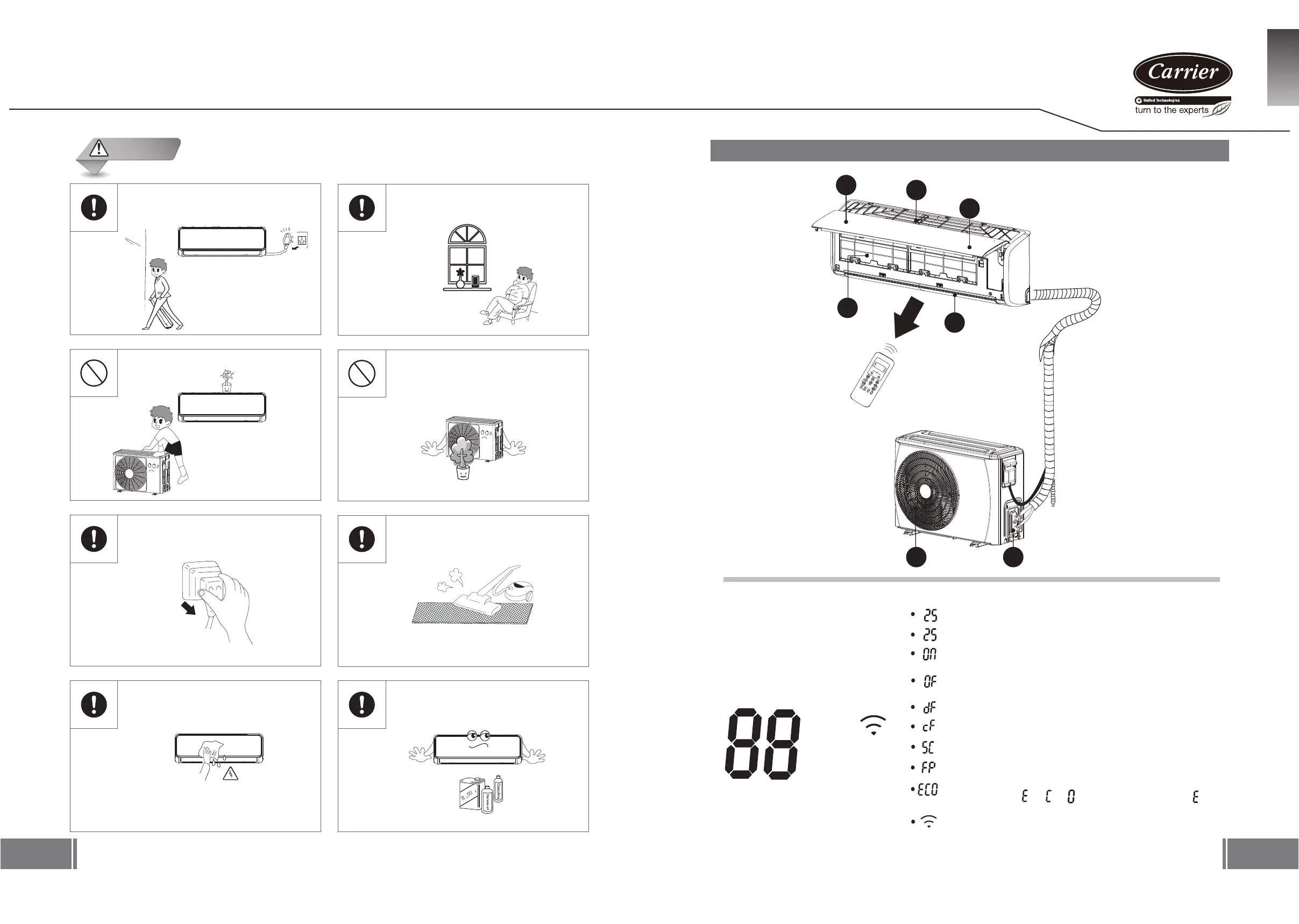

1.2 Part Names
■ Display symbols
Note: A guide on using the infrared remote controller refer to the remote controller manual
■ Indoor
1. Front Panel
2. Air Inlet
3. Display
4. Air Filter
5. Louver
6.Grille
7. Service valve
■ Outdoor
4
5
1
2
3
Air Outlet
Shows setting temperature in normal operation.
Display symbol represent:
[
*
] Model dependent
6
7
Shows room temperature in FAN mode.
Display it for three seconds when timer on is set, or activate
Air purification*, Swing, Turbo and Silence* fuction.
Display it for three seconds when timer off is set, or cancel
Air purification*, Swing, Turbo and Silence* fuction.
Defrosting operation*
Cold draft prevention*
Self clean*
Freeze Protection*
When ECO funciton* is activated, the display illuminates in
sequence as “ -- -- -- setting temperature -- ...” in
one second interval.
WLAN function (only for the model with WLAN module)*
ECO
GB
