Carrier Thermidistat™ Control (TSTATCCPRH01-B) is included
with the 40FKA unit. See Back Page for QUICK REFERENCE
COMFORT HEAT SET-UP INSTRUCTIONS.
These units are available for application in systems of 18,000
through 60,000 Btuh nominal cooling capacities. (See Fig. 2 and
3.) Factory-authorized, field-installed electric heater packages are
available in 5 through 30 kw. See Product Data for available
accessory kits.
Before installing or servicing fan coil, always turn off all
power to unit. There may be more than 1 disconnect switch.
Turn off accessory heater power if applicable. Electrical
shock can cause personal injury or death.
INSTALLATION
Step 1—Check Equipment
Unpack unit and move to final location. Remove carton taking care
not to damage unit.
Inspect equipment for damage prior to installation. File claim with
shipping company if shipment is damaged or incomplete. Locate
unit rating plate which contains proper installation information.
Check rating plate to be sure unit matches job specifications.
Step 2—Mount Fan Coil
Unit can stand or lie on floor, or hang from ceiling or wall. Allow
space for wiring, piping, and servicing unit.
IMPORTANT: When unit is installed over a finished ceiling
and/or living area, building codes may require a field-supplied
secondary condensate pan to be installed under the entire unit.
Some localities may allow as an alterative the running of a
separate, secondary condensate line. Consult local codes for
additional restrictions or precautions.
When installing any fan coil over a finished ceiling and/or living
area, installation of a secondary drain pan under entire unit to
avoid damage to ceiling is recommended.
40FKA Fan Coils can be installed for upflow and horizontal-left
applications as factory shipped. Units can be installed for
horizontal-right applications with field modifications. Units may
be converted for downflow applications using factory-authorized
accessory kit.
NOTE: To ensure proper drainage for horizontal installations,
unit must be installed so it is within 1/8 in. level of the length and
width of unit.
UPFLOW INSTALLATION
If return air is to be ducted, install duct flush with floor. Set unit
on floor over opening.
Only use return-air opening provided. All return air must pass
through the coil. (See Fig. 4.)
MODULAR UNITS
The 40FKA Fan Coil in size 006 is a 2-piece modular unit.
Modular construction allows installer to disassemble unit into 2
components, coil box and blower box, for ease of installation. (See
Fig. 5.)
To disassemble unit, remove rear corner brackets by removing 2
screws which secure brackets. (See Fig. 5.) Remove either 2
screws in each front corner of coil box, or 2 screws in blower box.
Do not remove all 4 screws in each corner. (See Fig. 5.) Sections
may now be separated by lifting top section from lower section.
To reassemble, reverse above procedure. Be certain to reinstall all
fasteners when reassembling.

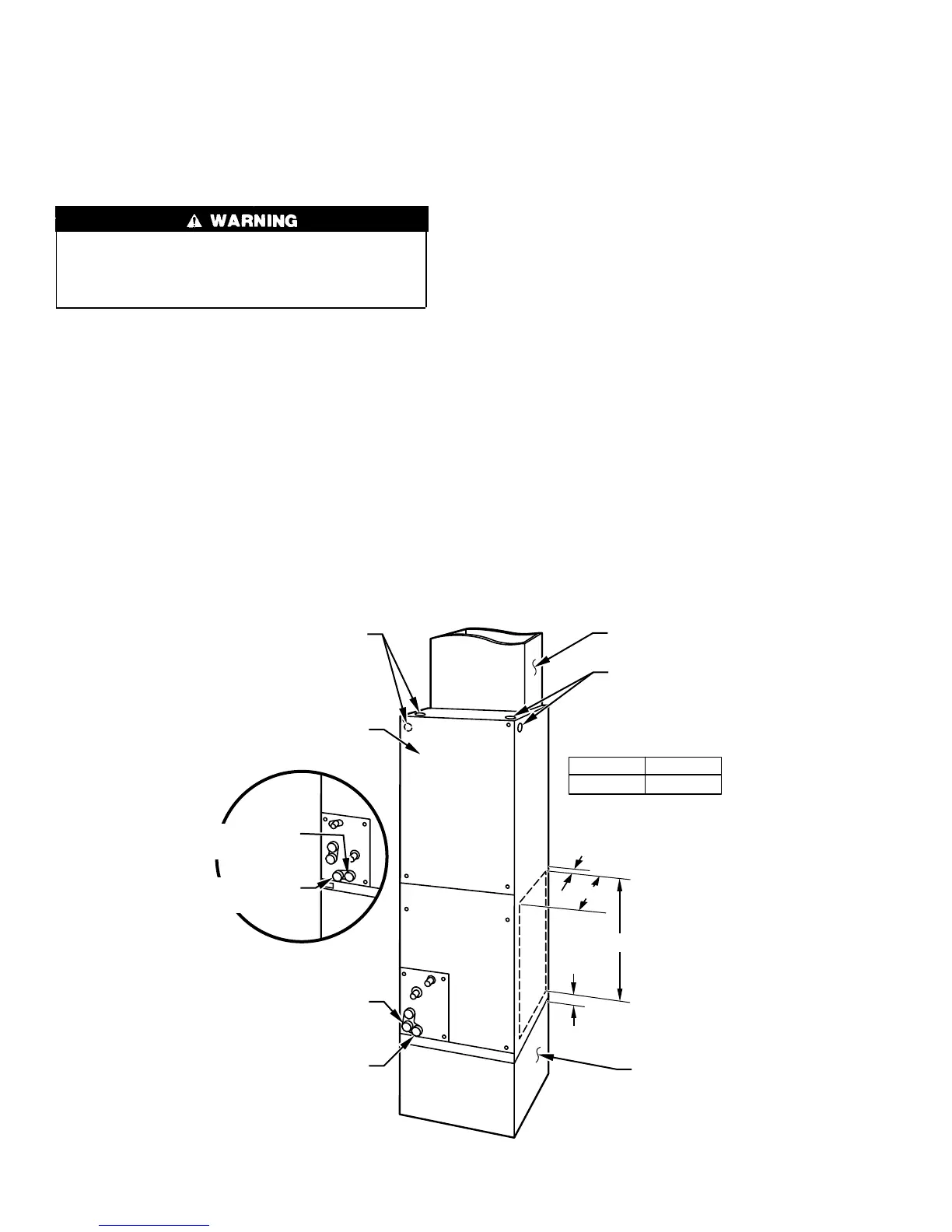

Fig. 4—Slope Coil in Upflow Application
A98263
A COIL
UNITS
POWER ENTRY
OPTIONS
LOW VOLT
ENTRY
OPTIONS
FIELD MODIFIED
SIDE RETURN
LOCATION FOR
SLOPE COIL
UNITS ONLY
FIELD SUPPLIED
RETURN PLENUM
UPFLOW/DOWNFLOW
SECONDARY DRAIN
UPFLOW/DOWNFLOW
PRIMARY DRAIN
UNIT
003
A
19 In.
A
1
1
⁄
2
″
2
1
⁄
2
″
19″
FIELD SUPPLIED
SUPPLY DUCT
24-IN. FRONT SERVICE
CLEARANCE
UPFLOW/DOWNFLOW
SECONDARY DRAIN
UPFLOW/DOWNFLOW
PRIMARY DRAIN
