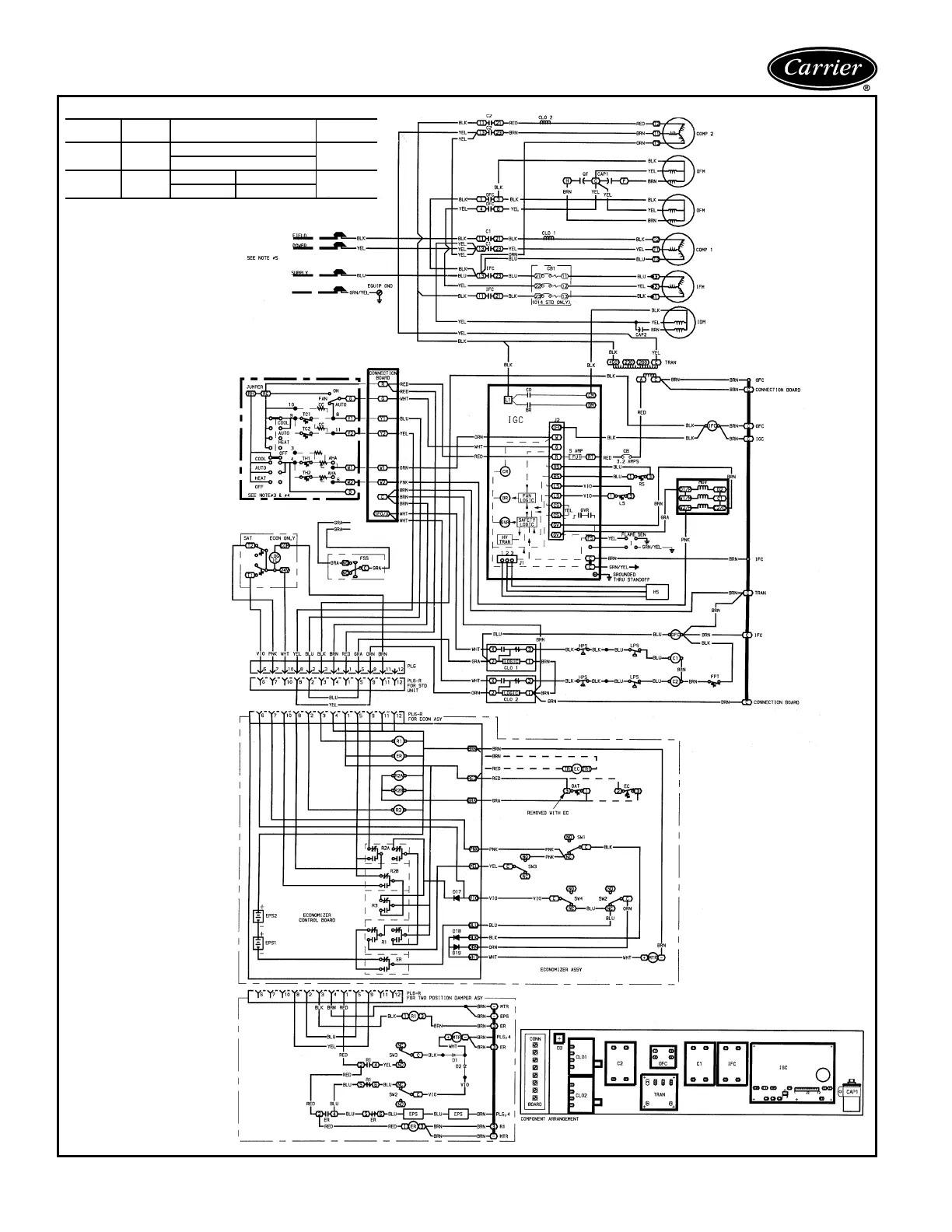

Typical wiring schematic (008-014, 460-3-60 shown)
CIRCUIT
BREAKER
VOLTS MFG. PT. NO.
MUST TRIP
AMPS
CB
24 V
POTTER & BRUMFIELD
3.2
W2BX-1024-3.2
CB1
(014 Std)
460-3-60
Heinemann Airpax
8.5
CF3-Z228-41 219-3-2600-486
